Analog Devices Inc. AD9779ABSVZ

Part No.:: AD9779ABSVZ

Manufacturer:: Analog Devices Inc.

Package:: 100-TQFP Exposed Pad

Datasheet:: AD9779ABSVZ.pdf

Description:: IC DAC 16BIT A-OUT 100TQFP

In Stock:: 2987

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9779ABSVZ Specifications

Package/Case:
100-TQFP Exposed Pad
Packaging:
Tray
Series:
-
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
2
SettlingTime:
-
OutputType:
Current - Unbuffered
DifferentialOutput:
Yes
DataInterface:
Parallel
ReferenceType:
Internal
Voltage-SupplyAnalog:
3.13V ~ 3.47V
Voltage-SupplyDigital:
1.7V ~ 2.05V, 3.13V ~ 3.47V
INL/DNL(LSB):
±6, ±2.1
Architecture:
Oversampling Interpolating DAC
OperatingTemperature:
-40°C ~ 85°C

AD9779ABSVZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9779ABSVZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9779ABSVZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9779ABSVZ information

Views：

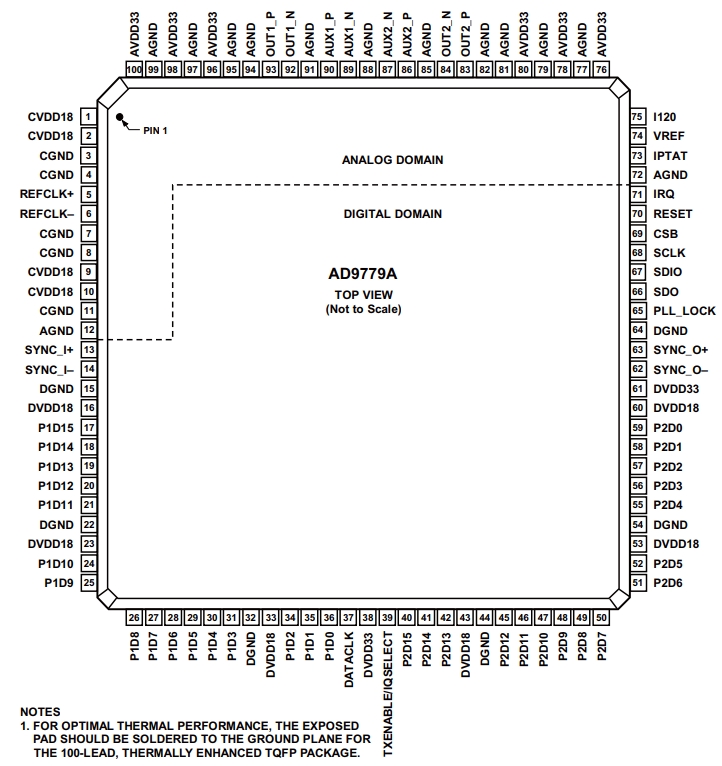

AD9779ABSVZ Typical application Circuitry

AD9779ABSVZ

Analog Devices created the high-speed, dual-channel AD9779ABSVZ Digital-to-Analog Converter (DAC). With a resolution of 16 bits and a maximum update rate of 1.2 GSPS, it is suitable for applications such as wireless communications, cable modems, and test equipment.

Key Parameters of AD9779ABSVZ:

- Resolution: 16 bits

- Maximum Update Rate: 1.2 GSPS

- Output Range: -1 V to +1 V

- Supply Voltage: 1.8 V and 3.3 V

Application Scenario: Wireless Communications Equipment

Here is how to interface the AD9779ABSVZ in a wireless communications system:

1. Power Supply Connection:

The AD9779ABSVZ requires two supply voltages, 1.8 V connected to pin 56 (DVDD) and 3.3 V connected to pin 41 (AVDD), to power the digital and analog sections of the DAC, respectively.

2. Link for Reference Voltage:

To configure the full-scale output current of the DAC, pin 40 (REFIO) needs to be connected to a precision reference voltage. The reference voltage should be based on the desired output range of the wireless communications system.

3. Digital Input Connection:

The digital data to be converted should be fed into the data input pins D0 to D15 of the AD9779ABSVZ. Ensure that the digital data is within the valid logic levels of the DAC.

4. Clock Source Connection:

A stable and accurate clock source should be connected to pin 36 (CLK) of the AD9779ABSVZ. The intended update rate of the DAC should be taken into consideration while choosing the clock frequency.

5. Connection for Analog Output:

The analog output from the DAC can be taken from pin 34 (IOUTA) for channel A and pin 22 (IOUTB) for channel B, which should be connected to the next stage in the wireless communications system.

Design Considerations:

When designing a circuit with the AD9779ABSVZ, it is important to consider factors such as signal bandwidth, update rate, and resolution. Adequate filtering and shielding are necessary to minimize noise and interference. The power supplies should be stable and free from noise, and the clock source should be accurate and free from jitter.
