Name: AD9755ASTZ
Brand: Analog Devices Inc.
SKU: AD9755ASTZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD9755ASTZ

Part No.:: AD9755ASTZ

Manufacturer:: Analog Devices Inc.

Package:: 48-LQFP

Datasheet:: AD9755ASTZ.pdf

Description:: IC DAC 14BIT A-OUT 48LQFP

In Stock:: 3244

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9755ASTZ Specifications

Package/Case:
48-LQFP
Packaging:
Tray
Series:
TxDAC+®
ProductStatus:
Active
NumberofBits:
14
NumberofD/AConverters:
1
SettlingTime:
11ns (Typ)
OutputType:
Current - Unbuffered
DifferentialOutput:
Yes
DataInterface:
Parallel
ReferenceType:
External, Internal
Voltage-SupplyAnalog:
3V ~ 3.6V
Voltage-SupplyDigital:
3V ~ 3.6V
INL/DNL(LSB):
±2.5, ±1.5
Architecture:
Current Source
OperatingTemperature:
-40°C ~ 85°C

AD9755ASTZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9755ASTZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9755ASTZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9755ASTZ information

Views：

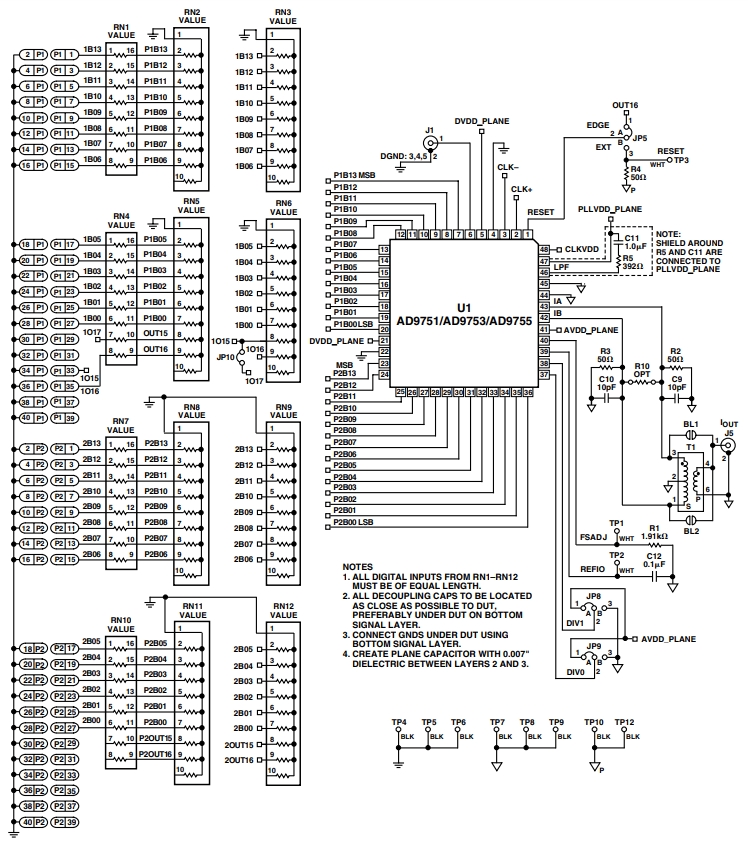

AD9755ASTZ Typical application Circuitry

AD9755ASTZ

Analog Devices created the AD9755ASTZ, a digital-to-analog converter (DAC). It is designed to convert digital data into an analog signal with a resolution of 14-bits and a maximum update rate of 125 MSPS. This chip finds its applications in diverse fields such as communications, test and measurement, and industrial automation.

Key Parameters of AD9755ASTZ:

- Resolution: 14 bits

- Maximum Update Rate: 125 MSPS

- Output Range: -1 V to +1 V

- Supply Voltage: 3.3 V

Application Scenario: Test and Measurement Equipment

When incorporating the AD9755ASTZ in test and measurement equipment, you should consider the following connections:

1. Power Supply:

The AD9755ASTZ requires a stable 3.3 V supply voltage, which should be connected to pin 40 (AVDD).

2. Reference Voltage:

To configure the full-scale output current of the DAC, pin 26 (REFIN) needs to be linked to a reference voltage. This reference voltage should be chosen based on the requirements of the test and measurement equipment.

3. Digital Input:

The digital data to be converted to analog form should be fed into the data input pins D0 to D13 of the AD9755ASTZ. Ensure that the digital data is within the valid logic levels of the DAC.

4. Clock Source:

Connect a stable and accurate clock source to pin 38 (CLK) of the AD9755ASTZ. The clock frequency should be selected based on the desired update rate of the DAC.

5. Analog Output:

The analog output from the DAC can be taken from pin 28 (IOUT), which should be connected to the input of the next stage in the test and measurement equipment.

Design Considerations:

When designing a circuit with the AD9755ASTZ, consider factors such as signal bandwidth, update rate, and resolution. To reduce noise and interference, proper shielding and filtering are required. Both the clock source and the power supply need to be precise and jitter-free.
