Analog Devices Inc. AD9517-3ABCPZ-RL7

Part No.:: AD9517-3ABCPZ-RL7

Manufacturer:: Analog Devices Inc.

Package:: 48-VFQFN Exposed Pad, CSP

Datasheet:: AD9517-3ABCPZ-RL7.pdf

Description:: IC CLOCK GEN 2.0GHZ VCO 48LFCSP

In Stock:: 3455

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9517-3ABCPZ-RL7 Specifications

Package/Case:
48-VFQFN Exposed Pad, CSP
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
Type:
Clock Generator, Fanout Distribution
PLL:
Yes
Input:
CMOS, LVDS, LVPECL
Output:
CMOS, LVDS, LVPECL
NumberofCircuits:
1
Ratio-Input:Output:
1:12
Differential-Input:Output:
Yes/Yes
Frequency-Max:
2.25GHz
Divider/Multiplier:
Yes/No
Voltage-Supply:
3.135V ~ 3.465V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD9517-3ABCPZ-RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9517-3ABCPZ-RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9517-3ABCPZ-RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9517-3ABCPZ-RL7 information

Views：

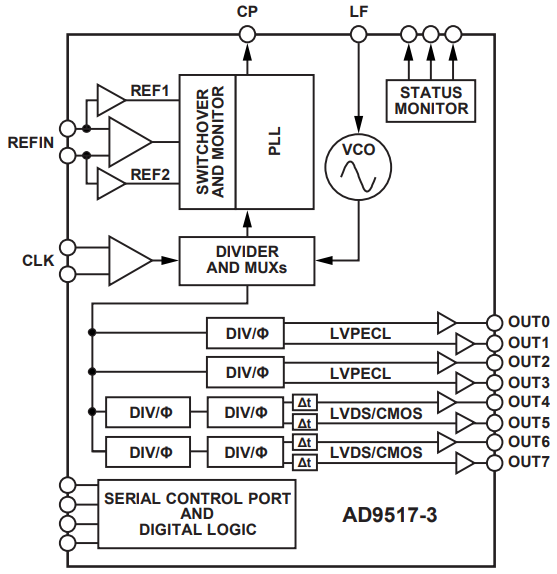

AD9517-3ABCPZ-RL7 Typical application Circuitry

AD9517-3ABCPZ-RL7

The AD9517-3ABCPZ-RL7 represents a critical component within the AD9517 series, a family of clock distribution ICs and PLL (Phase-Locked Loop) synthesizers designed by Analog Devices. This series stands out for its precision in clock generation and distribution, essential for synchronizing various elements in complex digital systems, such as data converters, microprocessors, and communication interfaces. The "ABCPZ-RL7" suffix denotes the package type and product grade, indicating a lead-free, 7 mm × 7 mm, 48-lead LFCSP (Lead Frame Chip Scale Package) variant, optimized for surface-mount technology and suitable for environmentally conscious manufacturing processes.

1. Core Functionality of the AD9517-3ABCPZ-RL7: This device is engineered to deliver low jitter, high precision clock distribution and generation. It incorporates a PLL with a VCO (Voltage-Controlled Oscillator), alongside multiple outputs that can be configured as either LVPECL (Low Voltage Positive Emitter-Coupled Logic), LVDS (Low Voltage Differential Signaling), or CMOS (Complementary Metal-Oxide-Semiconductor) outputs, offering versatility in interfacing with various digital systems.

2. Power Supply Connections (AVDD, DVDD): The AD9517-3ABCPZ-RL7 necessitates distinct power supply inputs for its analog and digital sections. AVDD pins are dedicated to the analog supply, while DVDD pins cater to the digital supply. Typically, these pins require a stable 3.3V power source. The presence of separate supplies aids in isolating the analog and digital sections of the IC, minimizing noise and interference.

3. Grounding (AGND, DGND): Proper grounding is crucial for the AD9517-3ABCPZ-RL7's performance. AGND and DGND pins provide dedicated ground paths for the analog and digital sections, respectively. This segregation helps to further reduce noise and cross-talk between the analog and digital domains.

4. Reference Clock Input (REF CLK): The operation of the AD9517-3ABCPZ-RL7's PLL is predicated on the quality of the reference clock (REF CLK) fed into it. This input establishes the baseline for the generated clock signals, influencing their accuracy and stability. Conditioning this input with buffering and filtering can enhance performance.

5. Output Clock Signals: The device features several outputs that can be programmed through the digital control interface to generate clocks with various frequencies, phases, and signal levels. These outputs enable the AD9517-3ABCPZ-RL7 to serve a wide range of applications by providing synchronized clock signals to multiple components within a system.

6. Decoupling Capacitors for Power Supply Pins: To ensure the AD9517-3ABCPZ-RL7 operates smoothly, decoupling capacitors should be placed close to both the AVDD and DVDD pins. These capacitors are instrumental in stabilizing the power supply lines, filtering out noise and preventing transient disruptions.

7. Digital Control Interface: The device's configuration and control are facilitated through a digital interface, which can operate in either serial or parallel mode. This interface allows for the precise programming of the PLL and output dividers, enabling the customization of the clock outputs to meet specific application requirements.

8. Thermal Management Strategies: Given its sophisticated functionality and potential for use in high-frequency applications, the AD9517-3ABCPZ-RL7 requires careful consideration of thermal management. Effective heat dissipation techniques, including the use of thermal vias and heatsinks, may be necessary to maintain operation within the specified temperature ranges.

Integrating the AD9517-3ABCPZ-RL7 into a system design calls for meticulous attention to power supply management, signal integrity, digital control interfacing, and thermal considerations. By following these guidelines, the AD9517-3ABCPZ-RL7 can significantly enhance the performance of systems requiring precise clock synchronization and distribution, reinforcing its role as a pivotal component in advanced digital systems.
