What is the Additional Feature ?

Name: AD9516-3BCPZ-REEL7
Brand: Analog Devices Inc.
SKU: AD9516-3BCPZ-REEL7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD9516-3BCPZ-REEL7

Part No.:: AD9516-3BCPZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 64-VFQFN Exposed Pad, CSP

Datasheet:: AD9516-3BCPZ-REEL7.pdf

Description:: IC CLOCK PLL/VCO 2GHZ 64LFCSP

In Stock:: 3500

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9516-3BCPZ-REEL7 Specifications

Package/Case:
64-VFQFN Exposed Pad, CSP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Clock Generator, Fanout Distribution
PLL:
Yes
Input:
Clock
Output:
CMOS, LVDS, LVPECL
NumberofCircuits:
1
Ratio-Input:Output:
1:14
Differential-Input:Output:
Yes/Yes
Frequency-Max:
2.95GHz
Divider/Multiplier:
Yes/No
Voltage-Supply:
3.135V ~ 3.465V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

AD9516-3BCPZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9516-3BCPZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9516-3BCPZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9516-3BCPZ-REEL7 information

Views：

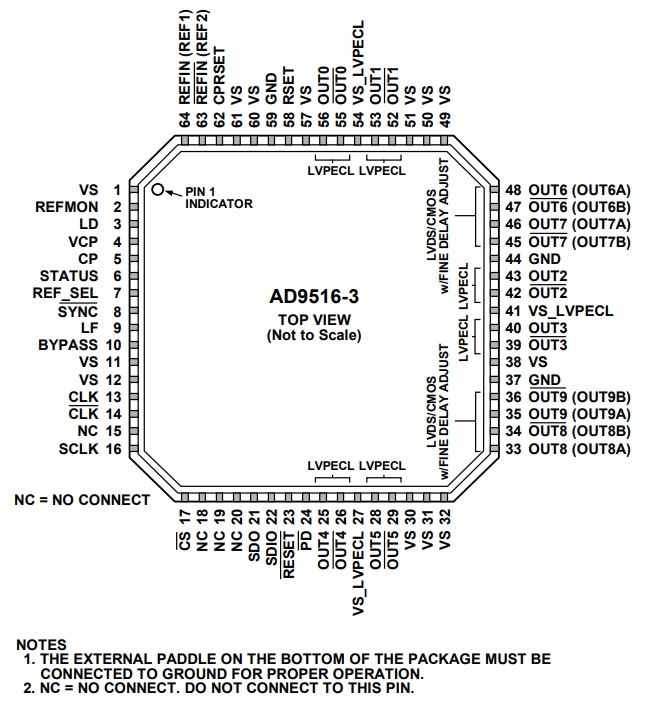

AD9516-3BCPZ-REEL7 Typical application Circuitry

AD9516-3BCPZ-REEL7

The AD9516-3BCPZ-REEL7 is a clock distribution IC with an integrated Phase Locked Loop (PLL), designed to synchronize data converters and other subsystems in high-performance applications.

Application scenarios for the AD9516-3BCPZ-REEL7 include:

- Data converters synchronization

- Test and measurement equipment

- Communications infrastructure

- Medical imaging systems

Key Specifications of AD9516-3BCPZ-REEL7 include:

- Low phase noise PLL

- 14 LVPECL/29 CMOS output

- Programmable output phase and delay

- Wide output frequency range

For this example, we will discuss how the AD9516-3BCPZ-REEL7 can be utilized in a data converter synchronization scenario.

Circuit Connection Steps:

1. Power Supply Connection

- Connect AVDD and DVDD to a +3.3V power supply.

- Connect GND to the system ground.

2. Reference Clock Connection

- Connect a stable reference clock source to the REF_CLK pins.

3. PLL Configuration

- Follow the datasheet recommendations to connect the PLL components, which include the loop filter and Voltage Controlled Oscillator (VCO).

4. Output Clock Connection

- Connect the LVPECL/CMOS output pins to the clock input pins of the data converters.

5. Control Interface Connection

- For configuration and control of the PLL and clock outputs, connect the SPI interface pins (CSB, SCLK, MOSI, MISO) to the corresponding pins on the microcontroller or FPGA.

Design Considerations:

When integrating the AD9516-3BCPZ-REEL7 into a circuit, several factors should be considered:

1. Power Supply Quality: It is critical to ensure that the power supply is both stable and clean to maintain the performance of the PLL and clock outputs.

2. Reference Clock Quality: The reference clock source must be stable and accurate to ensure the reliable operation of the PLL.

3. Output Clock Quality: Confirm that the output clocks are correctly configured and meet the requirements of the data converters.

4. PCB Layout: Take care with the PCB layout to minimize trace lengths and avoid interference from other components.

5. Temperature Range: The operating temperature range of the circuit should be considered, ensuring that the PLL can operate reliably within this range.

In summary, the AD9516-3BCPZ-REEL7 is a versatile and high-performance clock distribution IC, suitable for a range of applications, including data converter synchronization. It is important to carefully consider factors such as power supply, reference clock, and output clock quality, as well as PCB layout and operating temperature, to ensure optimal performance in your design.
