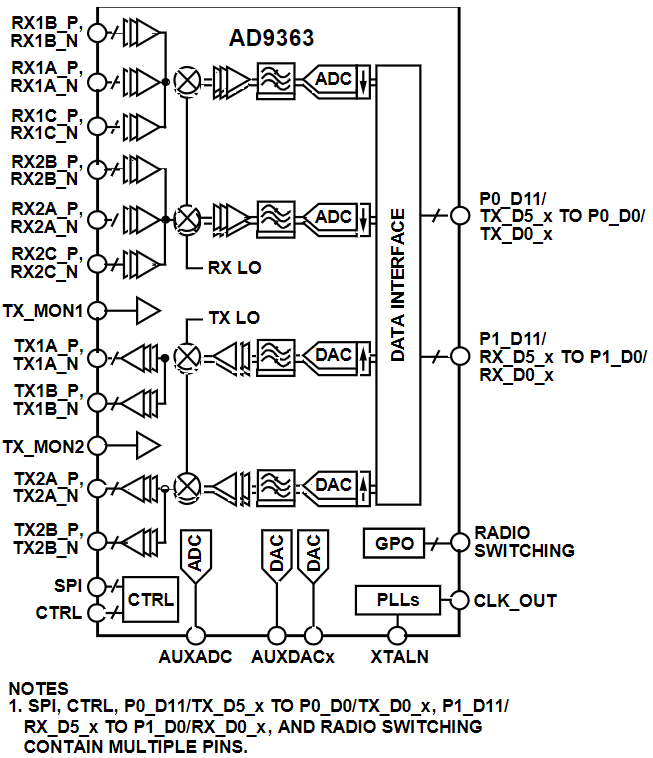

AD9363BBCZ Typical application Circuitry

AD9363BBCZ

The AD9363BBCZ is a pivotal member of the AD936x family, a comprehensive suite of highly integrated RF Agile Transceivers™ designed by Analog Devices. This family is particularly tailored for creating flexible, cost-effective radio designs capable of addressing a wide range of wireless communication needs. The AD9363BBCZ, with its ability to support a wide frequency range, is especially suited for applications requiring agile broadband and high-performance transceiver capabilities. It stands out for its integration of a RF front end, flexible mixed-signal baseband section, and frequency synthesizers, simplifying design and reducing time-to-market for a variety of systems.

1. AD9363BBCZ Integration Core: At the heart of the AD9363BBCZ is its capability to provide a 2x2 transceiver solution, integrating both the receiver and transmitter functionalities with an RF front-end, mixed-signal baseband processing, and frequency synthesizers. This integration supports FDD (Frequency Division Duplex) and TDD (Time Division Duplex) operation, offering versatility in deployment across different communication standards.

2. Power Supply Connections (VDD, GND): The AD9363BBCZ requires careful attention to power supply management, with VDD connections catering to different sections of the IC, including analog, digital, and RF domains. Each VDD pin must be carefully decoupled using capacitors placed as close to the pin as possible to minimize noise and ensure stable operation. Ground pins (GND) are equally critical, providing a low impedance path for return currents and playing a vital role in the overall performance by minimizing ground noise.

3. Signal Inputs/Outputs (RX, TX, CLK): The AD9363BBCZ features dedicated pins for receiving (RX) and transmitting (TX) paths, which are engineered to interface directly with antennas or external RF components after minimal external circuitry, such as matching networks or filters. The CLK pins are used for clock signals, including reference clocks and those generated by the on-chip PLLs, essential for timing and synchronization within the device.

4. Digital Interface (SPI, GPIO): Configuration and control of the AD9363BBCZ are accomplished through a serial peripheral interface (SPI), allowing for dynamic reconfiguration of the transceiver's parameters and modes of operation. General Purpose Input/Output (GPIO) pins offer additional flexibility for custom control schemes or status signaling, enhancing the device's adaptability to specific application requirements.

5. Reference Clock Input (REF_CLK): A stable reference clock (REF_CLK) input is vital for the AD9363BBCZ, as it serves as the foundation for the internal PLLs that generate the various clocks needed for RF signal processing. This input must be clean and stable, often necessitating external filtering and isolation to prevent jitter and phase noise from compromising the transceiver's performance.

6. Decoupling and Bypass Capacitors: To maintain the integrity of the power supply and signal lines, the AD9363BBCZ requires an array of decoupling and bypass capacitors. These components are essential for filtering high-frequency noise from the power supply lines and for stabilizing the voltage supply at each pin, ensuring the transceiver operates within its optimal parameters.

7. Thermal Management: The AD9363BBCZ, with its sophisticated RF functionalities, generates heat during operation, necessitating effective thermal management strategies. Implementing adequate heat sinking and considering airflow within the system design are crucial steps to maintain the transceiver within its operational temperature range, ensuring reliability and performance.

8. RF Front-End Considerations: While the AD9363BBCZ significantly simplifies the RF front-end design, attention must still be paid to matching networks, filters, and antenna design to optimize performance across the desired frequency bands. These external components are crucial for achieving optimal sensitivity, selectivity, and output power, enabling the AD9363BBCZ to meet stringent communication standards.

Incorporating the AD9363BBCZ into a design requires a holistic approach, considering power management, signal integrity, digital control, and thermal management, alongside RF front-end optimization. By addressing these aspects, the AD9363BBCZ can be effectively leveraged to create versatile, high-performance communication systems, underscoring its value in the AD936x transceiver family.
