Analog Devices Inc. AD9163BBCZ

Part No.:: AD9163BBCZ

Manufacturer:: Analog Devices Inc.

Package:: 169-VFBGA, CSPBGA

Datasheet:: AD9163BBCZ.pdf

Description:: IC DAC 16BIT A-OUT 169CSPBGA

In Stock:: 3231

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9163BBCZ Specifications

Package/Case:
169-VFBGA, CSPBGA
Packaging:
Tray
Series:
-
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
1
SettlingTime:
-
OutputType:
Current - Unbuffered
DifferentialOutput:
No
DataInterface:
JESD204B
ReferenceType:
External, Internal
Voltage-SupplyAnalog:
1.14V ~ 1.326V, 2.375V ~ 2.625V
Voltage-SupplyDigital:
1.14V ~ 1.326V
INL/DNL(LSB):
±2.7, ±1.7
Architecture:
Quad-Switch
OperatingTemperature:
-40°C ~ 85°C

AD9163BBCZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9163BBCZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9163BBCZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9163BBCZ information

Views：

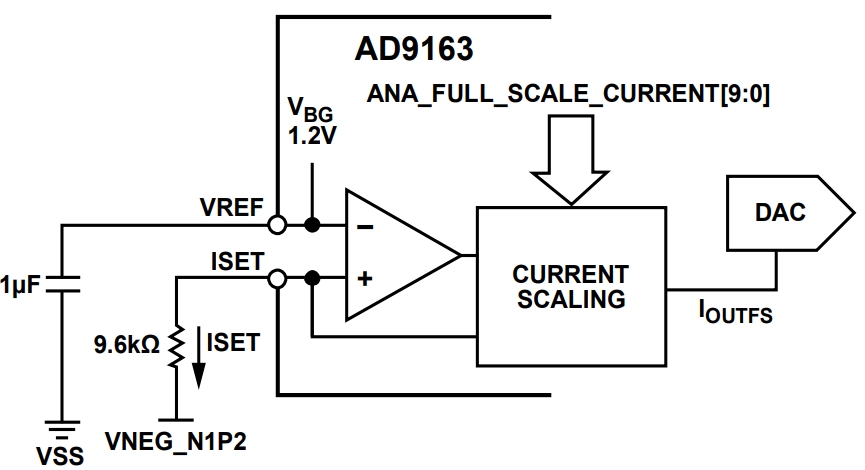

AD9163BBCZ Typical application Circuitry

AD9163BBCZ

The AD9163BBCZ is a cutting-edge, 16-bit digital-to-analog converter (DAC) designed for high-fidelity signal synthesis in demanding applications such as wireless infrastructure, instrumentation, and defense systems.

Key Attributes:

- Resolution: 16 bits for precise signal representation.

- Sampling Rate: Capable of up to 12.5 Giga-Samples Per Second (GSPS), enabling high-frequency signal generation.

- Dynamic Range: Offers an impressive Spurious-Free Dynamic Range (SFDR) for clear signal output.

Example Application: High-Speed Communication System:

In a high-speed communication system, the AD9163BBCZ can be utilized to generate complex modulated signals for transmission.

Detailed Circuit Design:

1. Voltage Supplies: Apply a stable +1.8V supply to the AVDD1, AVDD2, DVDD, and CVDD pins for optimal performance of the AD9163BBCZ.

2. Clock Input: Feed a low-jitter, high-quality clock signal into the REFCLK+ and REFCLK- pins to ensure accurate data sampling.

3. Data Interface: Route the digital input stream to the D0-D15 pins, aligning it with the clock signal for synchronized data conversion.

4. Analog Output: Attach a well-designed low-pass filter to the OUT+ and OUT- pins to remove harmonic components and retrieve the desired analog waveform.

5. Configuration Interface: Employ the SPI interface (SDIO, SCLK, CSB, SDO) for programming the internal settings of the AD9163BBCZ to match the application's requirements.

Considerations for Circuit Design:

- Signal Integrity: Pay attention to maintaining signal integrity for the digital inputs and clock signal to prevent data corruption.

- Thermal Management: Implement efficient cooling strategies to manage the heat generated by the AD9163BBCZ, particularly at high operation speeds.

- Power Supply Purity: Ensure that the power supply is free from noise and ripple to maintain the integrity of the DAC's output.

By addressing these design aspects, the AD9163BBCZ can be effectively employed in a high-speed communication system to generate complex modulated signals with high precision and speed.
