Name: AD9154BCPZ
Brand: Analog Devices Inc.
SKU: AD9154BCPZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD9154BCPZ

Part No.:: AD9154BCPZ

Manufacturer:: Analog Devices Inc.

Package:: 88-VFQFN Exposed Pad, CSP

Datasheet:: AD9154BCPZ.pdf

Description:: IC DAC 16BIT A-OUT 88LFCSP

In Stock:: 3156

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9154BCPZ Specifications

Package/Case:
88-VFQFN Exposed Pad, CSP
Packaging:
Tray
Series:
TxDAC+®
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
4
SettlingTime:
-
OutputType:
Current - Unbuffered
DifferentialOutput:
Yes
DataInterface:
JESD204B
ReferenceType:
Internal
Voltage-SupplyAnalog:
3.13V ~ 3.47V
Voltage-SupplyDigital:
1.14V ~ 1.26V
INL/DNL(LSB):
±8.2, ±4.3
Architecture:
Quad-Switch
OperatingTemperature:
-40°C ~ 85°C

AD9154BCPZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9154BCPZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9154BCPZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9154BCPZ information

Views：

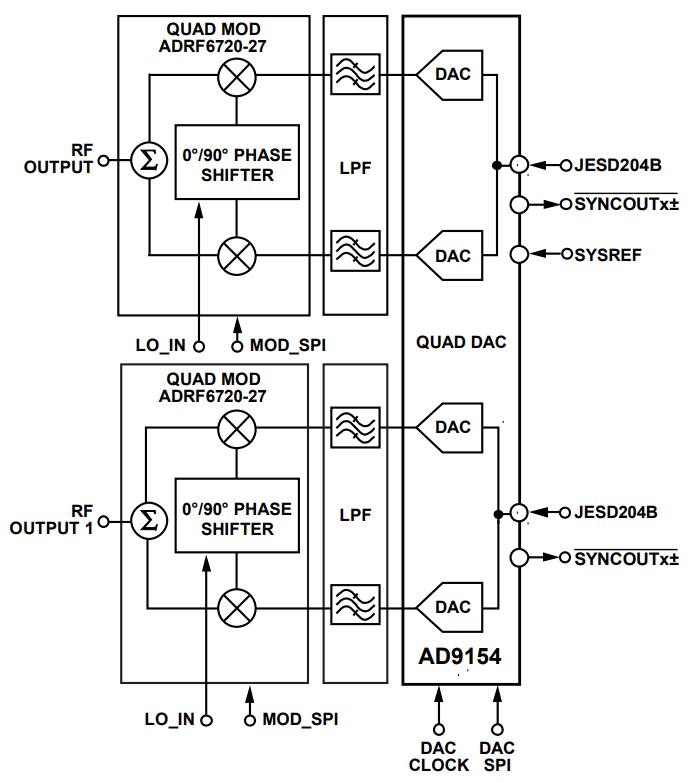

AD9154BCPZ Typical application Circuitry

AD9154BCPZ

The AD9154BCPZ is a central figure in Analog Devices' comprehensive range of high-speed digital-to-analog converters (DACs), specifically engineered to address the demanding requirements of direct-to-RF (radio frequency) and IF (intermediate frequency) synthesis applications. This quad-channel, 16-bit DAC is designed for high-fidelity broadband signal generation, making it an ideal solution for advanced telecommunications, radar systems, and electronic warfare applications. The device integrates a fine-tuned mix of speed, resolution, and bandwidth capabilities, allowing for the generation of complex modulated waveforms directly at high frequencies.

1. Power Supply Connections for Optimized Performance (AVDD1, AVDD2, DVDD, CVDD): The AD9154BCPZ operates with multiple power supply inputs, including analog supply voltages (AVDD1, AVDD2), a digital supply voltage (DVDD), and a clock voltage supply (CVDD). These distinct supplies are essential for segregating different sections of the DAC to minimize noise and interference, thereby ensuring optimal performance across its various functions.

2. Differential Data Inputs for High-Speed Signal Processing (D[15:0]P, D[15:0]N for each channel): Each of the four channels of the AD9154BCPZ features differential data inputs (D[15:0]P, D[15:0]N), enabling high-speed digital signal processing. This differential input structure is critical for maintaining signal integrity by reducing susceptibility to common-mode noise, thereby enhancing the DAC's ability to generate precise analog outputs.

3. Clock Input for Synchronized Operation (CLK+, CLK-): A differential clock input (CLK+, CLK-) governs the timing of digital-to-analog conversion, facilitating the synchronized operation of the AD9154BCPZ with external digital signal sources. Precise clocking is paramount for the accurate generation of high-frequency analog outputs, ensuring the DAC operates efficiently in systems requiring tight timing coordination.

4. Analog Output and Balancing (OUTA, OUTB, OUTC, OUTD): The device provides four analog output channels (OUTA, OUTB, OUTC, OUTD), each corresponding to one of the quad DAC channels. These outputs deliver the converted analog signals, ready for further processing or direct transmission. Implementing proper output balancing and impedance matching is crucial for maximizing signal quality and minimizing distortion in the generated analog waveforms.

5. Control and Configuration Interface (SPI): The AD9154BCPZ features a serial peripheral interface (SPI) for device configuration and control. Through this interface, users can adjust various operational parameters of the DAC, such as output current settings and functional modes, enabling fine-tuning of the device's performance to meet specific application requirements.

6. Decoupling and Bypassing for Stability (Decoupling AVDD, DVDD, CVDD): To ensure stable operation and reduce potential power supply noise, it is recommended to use decoupling and bypass capacitors near all power supply pins. These capacitors are instrumental in maintaining a clean and stable electrical environment for the DAC, which is crucial for achieving high fidelity in the generated analog signals.

7. Designed for Advanced Signal Generation Applications: The AD9154BCPZ is tailored for cutting-edge applications that require the generation of complex, high-frequency analog signals directly from digital data streams. Its integration into systems such as high-speed communication transceivers, radar signal processing units, and electronic warfare equipment underscores its versatility and performance in demanding environments.

In conclusion, the AD9154BCPZ stands as a testament to Analog Devices' expertise in creating DACs that push the boundaries of speed, precision, and functionality. By offering advanced features such as quad-channel operation, high-speed differential inputs, and precise clock management, the AD9154BCPZ provides a robust platform for developing sophisticated electronic systems capable of direct-to-RF synthesis and high-fidelity signal generation.
