What is the Additional Feature ?

Name: AD9144BCPZ
Brand: Analog Devices Inc.
SKU: AD9144BCPZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD9144BCPZ

Part No.:: AD9144BCPZ

Manufacturer:: Analog Devices Inc.

Package:: 88-VFQFN Exposed Pad, CSP

Datasheet:: AD9144BCPZ.pdf

Description:: IC DAC 16BIT A-OUT 88LFCSP

In Stock:: 3547

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9144BCPZ Specifications

Package/Case:
88-VFQFN Exposed Pad, CSP
Packaging:
Tray
Series:
TxDAC+®
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
4
SettlingTime:
20ns (Typ)
OutputType:
Current - Unbuffered
DifferentialOutput:
Yes
DataInterface:
JESD204B
ReferenceType:
Internal
Voltage-SupplyAnalog:
3.13V ~ 3.47V
Voltage-SupplyDigital:
1.14V ~ 1.26V
INL/DNL(LSB):
±2, ±1
Architecture:
Oversampling Interpolating DAC
OperatingTemperature:
-40°C ~ 85°C

AD9144BCPZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9144BCPZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9144BCPZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9144BCPZ information

Views：

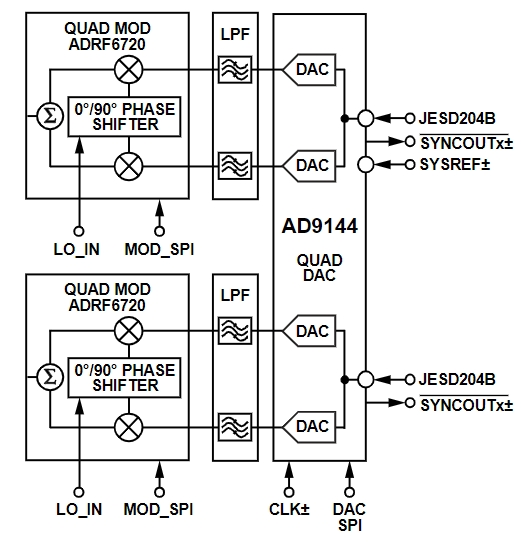

AD9144BCPZ Typical application Circuitry

AD9144BCPZ

The AD9144BCPZ is a quad-channel, 16-bit digital-to-analog converter (DAC) that provides high-speed data conversion and signal generation capabilities, making it suitable for applications such as multi-carrier wireless communication, radar systems, and test equipment.

Application Scenarios:

1. Multi-Carrier Wireless Communication: The AD9144BCPZ is used in base stations and communication infrastructure to generate multiple carrier signals for efficient data transmission.

2. Radar Systems: The chip is employed in radar systems for generating complex waveforms required for target detection and tracking.

3. Test Equipment: In test and measurement equipment, the AD9144BCPZ is used for generating precise waveforms for device characterization and testing.

Parameter Features:

- Resolution: 16 bits

- Maximum Sampling Rate: 2.8 GSPS (Giga Samples Per Second)

- Output Voltage Range: 0.5 V to 1 V (differential output)

- Power Consumption: Low power operation with power-down modes available

- Interface: High-speed serial interface for data input

Circuit Design for a Multi-Carrier Wireless Communication System:

1. Power source Connection: To power the analog and digital circuits of the AD9144BCPZ, respectively, connect a +1.8V power source to the AVDD and DVDD pins.

2. Reference Voltage Setup: Apply a 1.25V reference voltage to the REFIO pin, which sets the full-scale output voltage of the DAC.

3. Clock Signal Input: Provide a high-frequency clock signal to the CLKP and CLKN pins to serve as the sampling clock for the DAC.

4. Serial Data Input: Use a high-speed serializer to feed the digital input data to the DINP and DINN pins through a high-speed serial interface.

5. Output Signal Filtering: Attach a low-pass filter to the DOUTP and DOUTN pins to filter out unwanted harmonics from the output signal.

6. Load Impedance Matching: Ensure that the impedance of the load connected to the DAC output matches the DAC's output impedance to maximize signal integrity.

Construction Requirements:

- Signal Integrity: Be sure to carefully arrange and route high-speed signals to reduce signal deterioration and avoid crosstalk.

- Thermal Management: Implement efficient heat dissipation techniques to manage the heat generated by the high-speed operation of the DAC.

- Power Supply Noise: Utilize decoupling capacitors and proper power supply filtering techniques to minimize noise on the power supply lines.

In conclusion, the AD9144BCPZ is a versatile DAC that is suitable for high-speed data conversion applications. When designing a circuit with this chip, it is essential to consider factors such as signal integrity, thermal management, and power supply noise to ensure optimal performance.
