What is the Additional Feature ?

Name: AD9117BCPZ
Brand: Analog Devices Inc.
SKU: AD9117BCPZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD9117BCPZ

Part No.:: AD9117BCPZ

Manufacturer:: Analog Devices Inc.

Package:: 40-VFQFN Exposed Pad, CSP

Datasheet:

Description:: IC DAC 14BIT A-OUT 40LFCSP

In Stock:: 2348

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9117BCPZ Specifications

Package/Case:
40-VFQFN Exposed Pad, CSP
Packaging:
Bulk,Tray
Series:
TxDAC®
ProductStatus:
Active
NumberofBits:
14
NumberofD/AConverters:
2
SettlingTime:
11.5ns (Typ)
OutputType:
Current - Unbuffered
DifferentialOutput:
Yes
DataInterface:
Parallel
ReferenceType:
External, Internal
Voltage-SupplyAnalog:
1.7V ~ 3.5V
Voltage-SupplyDigital:
1.7V ~ 3.5V
INL/DNL(LSB):
±1.2, ±1.4
Architecture:
Current Source
OperatingTemperature:
-40°C ~ 85°C

AD9117BCPZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9117BCPZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9117BCPZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9117BCPZ information

Views：

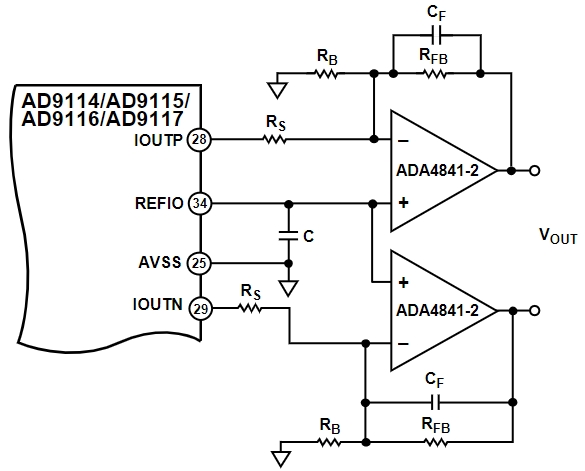

AD9117BCPZ Typical application Circuitry

AD9117BCPZ

The AD9117BCPZ is a dual-channel, 14-bit digital-to-analog converter (DAC) designed for high-speed data conversion and signal generation applications. It offers a maximum update rate of 125 MSPS, making it suitable for direct digital synthesis (DDS) and waveform generation in various systems.

Applications

1. Direct Digital Synthesis (DDS): The AD9117BCPZ is commonly used in DDS systems for generating accurate and stable waveforms.

2. Arbitrary Waveform Generation: It finds application in arbitrary waveform generators for creating complex waveforms in test and measurement equipment.

3. Communications: In communication systems, the AD9117BCPZ is utilized for modulating baseband signals for transmission.

Parameter Features

- Resolution: 14 bits, providing high precision in signal conversion.

- Update Rate: Up to 125 MSPS, enabling rapid data conversion for real-time applications.

- Output Range: Adjustable, allowing for flexible signal amplitude settings.

Circuit Design for DDS Application

1. Power Supply Connections:

- VDD Pin: Connect a +3.3V power supply to the VDD pin to power the DAC.

- Ground Pins: Connect the AGND and DGND pins to the system ground for stability.

2. Digital Input Interface:

- Data Input Pins: Connect the digital input pins (D0-D13) to a digital signal source for DAC data input.

- Clock Input Pin: Apply a clock signal to the CLK pin to synchronize the data conversion process.

3. Output Configuration:

- DAC Output Pins: Connect the DAC output pins (OUTA and OUTB) to a low-pass filter to smooth the output waveform.

- Output Range Adjustment: Set the desired output voltage range by applying the appropriate voltage to the RSET pin.

4. Control Signals:

- SYNC Pin: Use the SYNC pin to synchronize the data updates to the DAC.

- CLR Pin: Optionally, use the CLR pin to reset the DAC output to a predefined state.

Design Considerations

- Decoupling of Power Supply: Decoupling capacitors near the power supply pins reduce noise and provide stable operation.

- Signal Integrity: To reduce signal deterioration, maintain controlled-impedance, short traces for high-speed digital transmissions.

- Thermal Management: Use appropriate cooling strategies to keep the AD9117BCPZ from overheating and to guarantee dependable operation.

By following these design guidelines, the AD9117BCPZ can be effectively used in a DDS application, providing precise and high-speed analog outputs from digital inputs.
