Analog Devices Inc. AD9106BCPZRL7

Part No.:: AD9106BCPZRL7

Manufacturer:: Analog Devices Inc.

Package:: 32-WFQFN Exposed Pad, CSP

Datasheet:: AD9106BCPZRL7.pdf

Description:: IC DAC 12BIT A-OUT 32LFCSP

In Stock:: 1250

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9106BCPZRL7 Specifications

Package/Case:
32-WFQFN Exposed Pad, CSP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
TxDAC®
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
4
SettlingTime:
31.2ns (Typ)
OutputType:
Current - Unbuffered
DifferentialOutput:
Yes
DataInterface:
SPI
ReferenceType:
External, Internal
Voltage-SupplyAnalog:
1.7V ~ 3.6V
Voltage-SupplyDigital:
1.7V ~ 3.6V
INL/DNL(LSB):
±0.5, ±0.4
Architecture:
Segmented DAC
OperatingTemperature:
-40°C ~ 85°C

AD9106BCPZRL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9106BCPZRL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9106BCPZRL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9106BCPZRL7 information

Views：

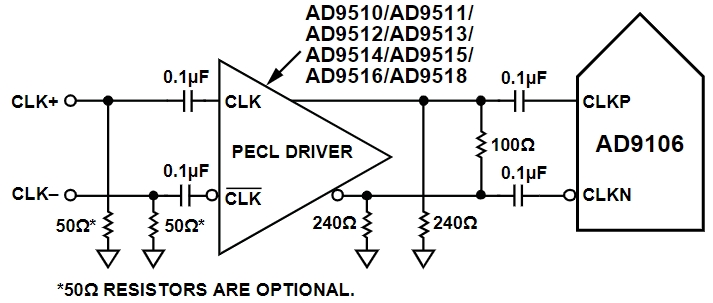

AD9106BCPZRL7 Typical application Circuitry

AD9106BCPZRL7

The AD9106BCPZRL7 is a Digital-to-Analog Converter (DAC) developed by Analog Devices, designed specifically for waveform generation. This integrated circuit is equipped with advanced features, making it ideal for applications such as signal generation, arbitrary waveform generation, and communication systems.

Applications of AD9106BCPZRL7

This DAC finds use in:

1. Test and Measurement Equipment: For generating precise waveforms in signal generators and oscilloscopes.

2. Communication Systems: In modulators for crafting complex communication signals.

3. Medical Devices: For waveform generation in ultrasound and other medical imaging equipment.

Key Features of AD9106BCPZRL7

Notable specifications include:

- Resolution: 14-bit DAC for high-precision waveform generation.

- Sampling Rate: 180 MSPS maximum, which allows high-frequency signal production.

- Integrated Memory: Waveform data is stored in on-chip memory, allowing for the creation of waveforms at will.

- Interface: SPI interface for simple FPGA or microcontroller connectivity.

Circuit Design Example: Signal Generator

In designing a circuit with the AD9106BCPZRL7, consider the following:

1. Power Supply Connection: Connect a 3.3V power source to the AVDD pin (pin 1) and DVDD pin (pin 24), and ground to the AGND pin (pin 2) and DGND pin (pin 23).

2. Clock Input: Attach a high-quality clock source to the CLK pin (pin 3) to provide the sampling clock for the DAC.

3. Digital Interface: Connect a microcontroller or FPGA to the SPI interface pins (SDIO pin 20, SCLK pin 21, CSB pin 22) for programming and control of the DAC.

4. Analog Output: The DAC output is available at the VOUT pin (pin 4), which can be connected to the input of an amplifier or filter for further signal conditioning.

Design Considerations for AD9106BCPZRL7

When designing circuits with this DAC, consider the following:

- Signal Integrity: Ensure proper layout and routing to maintain signal integrity, especially for the clock and analog output signals.

- Power Decoupling: To reduce noise and guarantee steady operation, use decoupling capacitors near the power supply pins.

- Control of Heat: In order to avoid overheating and guarantee dependable performance, provide sufficient cooling.

- Clock Source: Use a low-jitter clock source to maximize the performance of the DAC.

In summary, the AD9106BCPZRL7 is a versatile DAC well-suited for applications requiring precise waveform generation, such as in test and measurement equipment, communication systems, and medical devices. Its high resolution, fast sampling rate, and integrated memory make it a valuable component for creating complex signals in a variety of applications.
