Analog Devices Inc. AD9106BCPZ

Part No.:: AD9106BCPZ

Manufacturer:: Analog Devices Inc.

Package:: 32-WFQFN Exposed Pad, CSP

Datasheet:: AD9106BCPZ.pdf

Description:: IC DAC 12BIT A-OUT 32LFCSP

In Stock:: 665

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD9106BCPZ Specifications

Package/Case:
32-WFQFN Exposed Pad, CSP
Packaging:
Tray
Series:
TxDAC®
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
4
SettlingTime:
31.2ns (Typ)
OutputType:
Current - Unbuffered
DifferentialOutput:
Yes
DataInterface:
SPI
ReferenceType:
External, Internal
Voltage-SupplyAnalog:
1.7V ~ 3.6V
Voltage-SupplyDigital:
1.7V ~ 3.6V
INL/DNL(LSB):
±0.5, ±0.4
Architecture:
Segmented DAC
OperatingTemperature:
-40°C ~ 85°C

AD9106BCPZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD9106BCPZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD9106BCPZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD9106BCPZ information

Views：

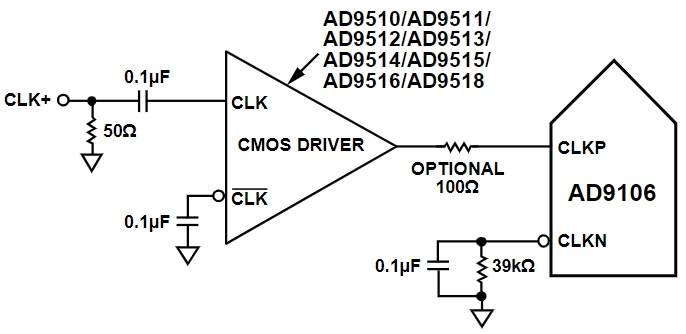

AD9106BCPZ Typical application Circuitry

AD9106BCPZ

The AD9106BCPZ chip is a versatile digital-to-analog converter (DAC) designed for high-precision waveform generation. Its main functionalities include the ability to produce complex waveforms with high accuracy, making it an ideal choice for applications in signal generation and communication systems.

Core Features:

- DAC Channels: The chip boasts four 12-bit DAC channels, enabling the generation of multiple waveforms simultaneously.

- Integrated PLL: An on-board phase-locked loop (PLL) facilitates stable and precise clocking for the DACs.

- High-Speed Interface: A serial interface allows for fast data transfer, ensuring that waveform data can be updated quickly and efficiently.

Typical Applications:

The AD9106BCPZ finds its use in various scenarios where precise waveform generation is crucial. Some common applications include:

- Test and Measurement Equipment: For generating test signals with specific characteristics.

- Communication Systems: In baseband signal generation for modulating carrier signals.

- Medical Imaging: Where precise waveforms are needed for imaging techniques like ultrasound.

Designing a Circuit with AD9106BCPZ:

When integrating the AD9106BCPZ into a circuit, several key considerations should be kept in mind:

1. Stable Power Supply: Connect a clean and stable 3.3V supply to the AVDD and DVDD pins to power the chip.

2. Clock Input: The CLKIN pin needs to be connected to an external clock source. The update rate of the DAC outputs is dependent on the frequency of this clock.

3. Interface for Serial Data: The SDI, SCLK, and CS pins make up the chip's serial interface. For data transfer, these pins on an FPGA or microcontroller should be linked.

4. DAC Outputs: The outputs of the DACs (DAC0 to DAC3) can be connected to subsequent stages in the signal chain, such as filters or amplifiers, depending on the application.

Considerations for Circuit Design:

- Noise Minimization: Use bypass capacitors near the power supply pins to reduce noise and ensure clean power to the chip.

- Clock Quality: The quality of the clock signal has a direct impact on the fidelity of the generated waveforms. Use a low-jitter clock source for optimal performance.

- Signal Routing: Proper routing of the serial interface lines is crucial to maintain signal integrity and ensure reliable communication with the chip.

- Thermal Management: Depending on the application, heat dissipation measures may be necessary to prevent thermal issues that could affect the performance of the AD9106BCPZ.

By considering these aspects, a designer can effectively incorporate the AD9106BCPZ into a system, leveraging its capabilities for high-precision waveform generation.
