Name: AD7945BRZ-REEL
Brand: Analog Devices Inc.
SKU: AD7945BRZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD7945BRZ-REEL

Part No.:: AD7945BRZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: AD7945BRZ-REEL.pdf

Description:: IC DAC 12BIT A-OUT 20SOIC

In Stock:: 3900

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7945BRZ-REEL Specifications

Package/Case:
20-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
1
SettlingTime:
600µs (Typ)
OutputType:
Current - Unbuffered
DifferentialOutput:
No
DataInterface:
Parallel
ReferenceType:
External
Voltage-SupplyAnalog:
5V
Voltage-SupplyDigital:
5V
INL/DNL(LSB):
±0.5 (Max), ±0.5 (Max)
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 85°C

AD7945BRZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7945BRZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7945BRZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7945BRZ-REEL information

Views：

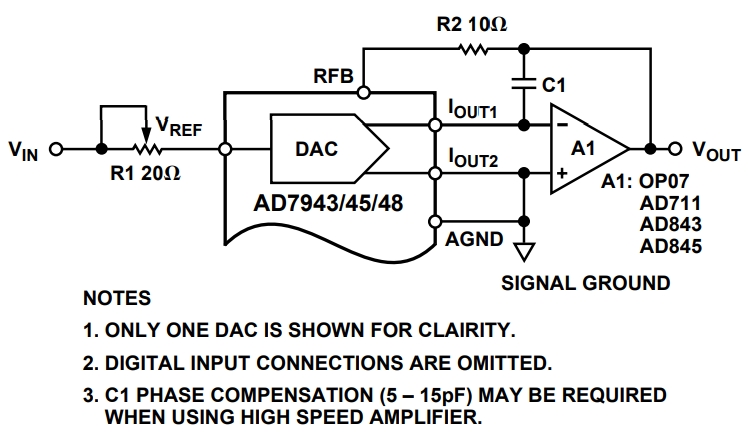

AD7945BRZ-REEL Typical application Circuitry

AD7945BRZ-REEL

The AD7945BRZ-REEL is a high-performance, 12-bit multiplying digital-to-analog converter (DAC) known for its fast conversion speeds and low power consumption. This DAC is well-suited for applications requiring precise and rapid analog signal generation, such as in automated test equipment, digital signal processing, and industrial control systems.

Key Specifications of the AD7945BRZ-REEL:

- Resolution: 12-bit accuracy ensures precise digital-to-analog conversion.

- Speed: High-speed operation facilitates rapid signal generation.

- Power Efficiency: Low power consumption is ideal for energy-sensitive applications.

- Interface: Parallel interface allows straightforward digital input.

- Supply Voltage: Operates with a 5V power supply for system compatibility.

- Input Coding: 2's complement input coding simplifies interfacing with digital systems.

- Package: Available in a compact SOIC package, suitable for space-constrained applications.

- Temperature Range: Capable of operating in industrial temperature ranges.

- Digital Signal Processing System Application Scenario:The AD7945BRZ-REEL can be used in a digital signal processing (DSP) system to transform digital filter outputs into analog signals so that they can be processed or analyzed further.

Detailed Circuit Connection:

1. Power Supply Connection: Link the VDD pin to a 5V supply to power the DAC, ensuring the GND pin is grounded for stable operation.

2. Digital Input Interface: Connect the digital input pins D0 to D11 to the output of the DSP unit to input the digital signal data.

3. Analog Output Configuration: Connect the AD7945BRZ-REEL VOUT pin to an output buffer or amplifier to condition the generated analog signal for the subsequent processing stages.

4. Reference Voltage Setup: Attach a stable reference voltage to the VREF pin to set the full-scale output range of the DAC, crucial for maintaining signal amplitude accuracy.

Circuit Design Considerations:

1. Signal Integrity: Employ short and direct traces for the digital input lines to minimize signal degradation and ensure accurate signal conversion.

2. Power Decoupling: Utilize decoupling capacitors near the VDD and GND pins to mitigate power supply noise, essential for maintaining the quality of the generated analog signals.

3. Output Buffering: Implement an output buffer or amplifier to match the impedance of the subsequent processing stages and provide sufficient drive capability for the analog signals.

4. Reference Stability: To guarantee constant signal amplitude under various operating circumstances, pick a reference voltage source with minimal noise and temperature drift.

5. Thermal Management: Ensure proper heat dissipation in the circuit design, as the DAC may generate heat during high-speed operation.

By incorporating the AD7945BRZ-REEL into a digital signal processing system, engineers can achieve precise and rapid conversion of digital signals into analog form, enhancing the system's capability for signal analysis and processing.
