What is the Additional Feature ?

Name: AD790JR
Brand: Analog Devices Inc.
SKU: AD790JR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD790JR

Part No.:: AD790JR

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC PREC COMPARATOR HS 8-SOIC

In Stock:: 3635

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD790JR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube,Tube
Series:
-
ProductStatus:
Obsolete
Type:
with Latch
NumberofElements:
1
OutputType:
CMOS, TTL
Voltage-SupplySingle/Dual(±):
4.5V ~ 7V, ±2.25V ~ 16.5V
Voltage-InputOffset(Max):
1.5mV @ 5V
Current-InputBias(Max):
5µA @ 5V
Current-Output(Typ):
-
Current-Quiescent(Max):
10mA
CMRRPSRR(Typ):
95dB CMRR, 90dB PSRR
PropagationDelay(Max):
50ns
Hysteresis:
500µV
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

AD790JR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD790JR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD790JR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD790JR information

Views：

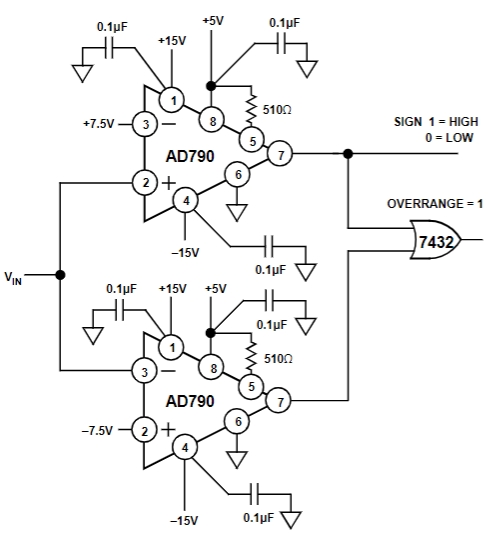

AD790JR Typical application Circuitry

AD790JR

Well-known for its short reaction time and low input offset voltage, the AD790JR is a fast, precision voltage comparator. Its dual or single power supply operation makes it adaptable to a wide range of applications. Applications requiring high speed and precision will benefit from the AD790JR's TTL/CMOS compatible outputs and broad operating temperature range.

Application Scenario: Overvoltage Protection Circuit in Power Supply Units

In power supply units, the AD790JR can be used as an overvoltage protection circuit to detect and respond to voltage levels exceeding the safe operating range, thereby protecting the load and the power supply.

Circuit Design for Overvoltage Protection

1. Power Supply Configuration:

- Connect the V+ pin (pin 8) of the AD790JR to a positive power supply (e.g., +15 V).

- Connect the V- pin (pin 4) to a negative power supply (e.g., -15 V) or ground for single supply operation.

- To stabilize the power supply and cut down on noise, place decoupling capacitors (0.1 µF ceramic) close to the power supply pins.

2. Voltage Reference Setup:

- Connect a precision voltage reference (e.g., 5 V) to the inverting input (IN-) pin (pin 2) to set the threshold voltage for overvoltage detection.

3. Input Voltage Monitoring:

- Connect the output voltage of the power supply to be monitored to the non-inverting input (IN+) pin (pin 3) through a voltage divider network to scale the voltage within the input range of the AD790JR.

4. Output Configuration:

- Connect a pull-up resistor (e.g., 10 kΩ) from the output (OUT) pin (pin 6) to the positive power supply to ensure proper logic levels for the TTL/CMOS-compatible output.

- Connect the output (OUT) pin to the control circuit or shutdown mechanism of the power supply to initiate protection actions when an overvoltage condition is detected.

5. Hysteresis Implementation:

- Add a feedback resistor between the output (OUT) pin and the non-inverting input (IN+) pin to introduce hysteresis, preventing oscillations due to noise at the threshold voltage.

Key Design Considerations:

- Voltage Scaling: Ensure proper scaling of the monitored voltage to fall within the input range of the AD790JR while maintaining detection accuracy.

- Hysteresis: Implement hysteresis to improve noise immunity and prevent false triggering near the threshold voltage.

- Power Supply Decoupling: Use decoupling capacitors near the power supply pins to ensure stable operation and reduce noise coupling.

- Protection Response: Design the protection response mechanism to quickly and effectively isolate or shut down the power supply in case of overvoltage.

In this application, the AD790JR comparator serves as an effective overvoltage protection circuit in power supply units, providing fast and accurate detection of voltage levels exceeding the safe operating range. By addressing key design considerations such as voltage scaling, hysteresis, power supply decoupling, and protection response, designers can create a reliable and high-performance overvoltage protection circuit to safeguard power supplies and connected loads.
