Analog Devices Inc. AD790JNZ

Part No.:: AD790JNZ

Manufacturer:: Analog Devices Inc.

Package:: 8-DIP (0.300, 7.62mm)

Datasheet:

Description:: IC PREC COMPARATOR HS 8-DIP

In Stock:: 3957

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD790JNZ Specifications

Package/Case:
8-DIP (0.300, 7.62mm)
Packaging:
Tube
Series:
-
ProductStatus:
Active
Type:
with Latch
NumberofElements:
1
OutputType:
CMOS, TTL
Voltage-SupplySingle/Dual(±):
4.5V ~ 7V, ±2.25V ~ 16.5V
Voltage-InputOffset(Max):
1.5mV @ 5V
Current-InputBias(Max):
5µA @ 5V
Current-Output(Typ):
-
Current-Quiescent(Max):
10mA
CMRRPSRR(Typ):
95dB CMRR, 90dB PSRR
PropagationDelay(Max):
50ns
Hysteresis:
500µV
OperatingTemperature:
0°C ~ 70°C
MountingType:
Through Hole

AD790JNZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD790JNZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD790JNZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD790JNZ information

Views：

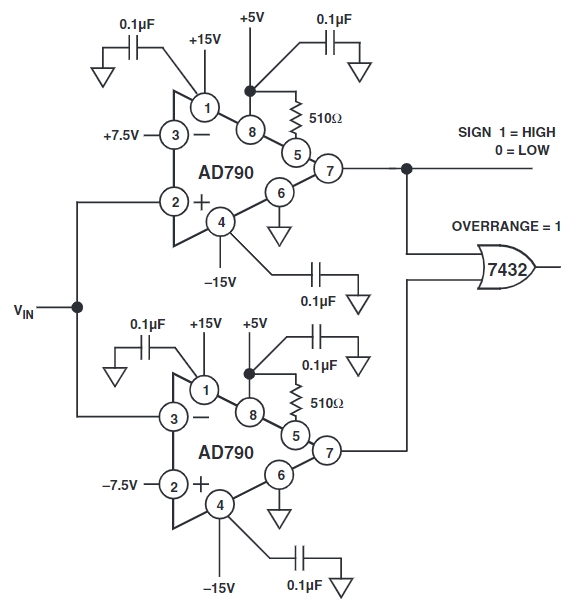

AD790JNZ Typical application Circuitry

AD790JNZ

The AD790JNZ is a high-speed, precision voltage comparator known for its fast response time and low input offset voltage. It operates with a single or dual power supply, making it versatile for various applications. The AD790JNZ features TTL/CMOS-compatible outputs and can operate over a wide temperature range, making it suitable for high-speed and precision applications.

Application Scenario: Zero-Crossing Detector in Power Converters

In power converters, the AD790JNZ can be used as a zero-crossing detector to control the switching of power semiconductors, ensuring efficient and accurate power conversion.

Circuit Design for Zero-Crossing Detector

1. Power Supply Configuration:

- Connect the V+ pin (pin 8) of the AD790JNZ to a positive power supply (e.g., +5 V).

- Connect the V- pin (pin 4) to a negative power supply (e.g., -5 V) or ground for single supply operation.

- Place decoupling capacitors (0.1 µF ceramic) near the power supply pins to stabilize the power supply and reduce noise.

2. Input Signal Conditioning:

- Connect the input AC signal to the non-inverting input (IN+) pin (pin 3) through a resistor and capacitor network to limit the signal amplitude and filter out high-frequency noise.

- Ground the inverting input (IN-) pin (pin 2) to set the reference voltage for zero-crossing detection.

3. Output Configuration:

- Connect a pull-up resistor (e.g., 10 kΩ) from the output (OUT) pin (pin 6) to the positive power supply to ensure proper logic levels for the TTL/CMOS-compatible output.

4. Feedback for Hysteresis:

- Add a feedback resistor between the output (OUT) pin and the non-inverting input (IN+) pin to introduce hysteresis, preventing oscillations near the zero-crossing point due to noise.

5. Load Connection:

- Connect the output (OUT) pin to the control circuit of the power converter to drive the switching of power semiconductors based on the zero-crossing detection.

Key Design Considerations:

- Signal Conditioning: Properly condition the input signal to match the input voltage range of the AD790JNZ and to filter out unwanted noise.

- Hysteresis: Implement hysteresis to improve noise immunity and prevent false triggering near the zero-crossing point.

- Power Supply Decoupling: Use decoupling capacitors near the power supply pins to ensure stable operation and reduce noise coupling.

- Output Load: Ensure that the output load is compatible with the output drive capability of the AD790JNZ to prevent loading effects.

In this application, the AD790JNZ comparator serves as an efficient zero-crossing detector in power converters, providing fast and accurate switching control for power semiconductors. By addressing key design considerations such as signal conditioning, hysteresis, power supply decoupling, and output load compatibility, designers can create a reliable and high-performance zero-crossing detection circuit for power conversion applications.
