Analog Devices Inc. AD780BR-REEL
- Part No.:
- AD780BR-REEL
- Manufacturer:
- Analog Devices Inc.
- Package:
- 8-SOIC (0.154, 3.90mm Width)
- Datasheet:
- Description:
- IC VREF SERIES 0.04%/0.03% 8SOIC
- In Stock:
- 3277
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
AD780BR-REEL Specifications
- Packaging:Tape & Reel (TR)
- Series:-
- ProductStatus:Obsolete
- ReferenceType:Series, Shunt
- OutputType:Programmable
- Voltage-Output(Min/Fixed):±2.5V, ±3V
- Voltage-Output(Max):-
- Current-Output:10 mA
- Tolerance:±0.04%, ±0.03%
- TemperatureCoefficient:3ppm/°C
- Noise-01Hzto10Hz:4µVp-p
- Noise-10Hzto10kHz:-
- Voltage-Input:4V ~ 36V
- Current-Supply:1mA
- Current-Cathode:1 mA
- OperatingTemperature:-40°C ~ 85°C (TA)
- MountingType:Surface Mount
AD780BR-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD780BR-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD780BR-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
AD780BR-REEL information
Views：

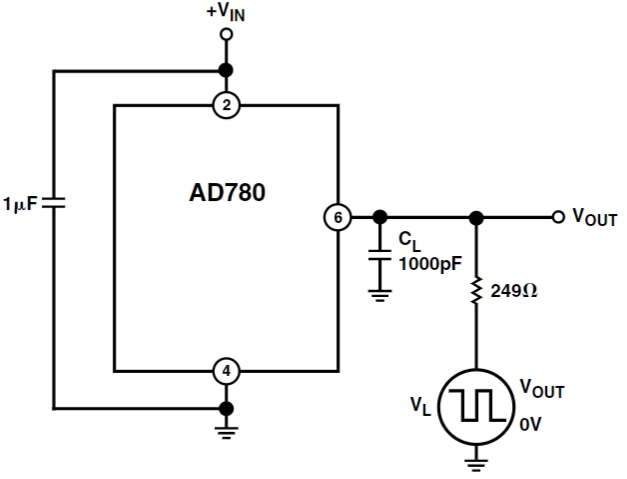

AD780BR-REEL Typical application Circuitry
The AD780BR-REEL is a high-precision, low-noise, bandgap voltage reference chip. It is frequently used in devices like digital-to-analog converters (DACs), analog-to-digital converters (ADCs), and precision instruments that need a steady and accurate reference voltage.
Important Application Scenarios:
1. Precision Instrumentation: The AD780BR-REEL is perfect for use in digital multimeters and other precision measurement equipment where precise reference voltage is essential.
2. Data Acquisition Systems: To ensure proper data conversion, a constant reference voltage for ADCs is frequently provided in data acquisition systems.
3. Power Supply Regulation: By giving voltage regulators a precise and reliable reference voltage, the chip can be utilized in power supply circuits.
Parameter Features:
- Output Voltage Options: 2.5V or 3.0V
- Low Noise: Typically 15 μV peak-to-peak (0.1 Hz to 10 Hz)
- High Accuracy: ±0.1% initial accuracy
- Low Temperature Coefficient: Typically 10 ppm/°C
Circuit Design for Precision Instrumentation Application:
1. Stable Power Supply: Connect a stable and noise-free power supply (5V) to the V_IN pin (Pin 3) of the AD780BR-REEL. Use a bypass capacitor (e.g., 10 μF) between V_IN and GND (Pin 2) to filter out any noise in the power supply.
2. Output Voltage Selection: For a 2.5V output, connect the V_OUT pin (Pin 6) directly to the input of the precision instrument. For a 3.0V output, connect a resistor divider from V_OUT to GND, and take the output from the junction of the resistors.
3. Bypass Capacitor: Place a bypass capacitor (e.g., 1 μF) between V_OUT and GND to stabilize the output voltage and filter out high-frequency noise.
4. Thermal Considerations: Ensure that the AD780BR-REEL is mounted in a location with minimal temperature gradients and away from heat-generating components to maintain temperature stability.
5. Protection: Add a series resistor (e.g., 10 Ω) between the power supply and V_IN to protect the AD780BR-REEL from any transient voltage spikes.
Design Considerations:
- To preserve the accuracy of the reference voltage, make sure the power supply is steady and noise-free.
- Employ the proper bypass capacitors to reduce noise and maintain a steady output voltage.
- Take into account the AD780BR-REEL's thermal environment to preserve temperature precision and stability.
- Use a series resistor to shield the AD780BR-REEL from brief voltage spikes.
By following these guidelines, you can effectively utilize the AD780BR-REEL in a precision instrumentation application, providing a stable and accurate reference voltage for precise measurements.
