Analog Devices Inc. AD780BR
- Part No.:
- AD780BR
- Manufacturer:
- Analog Devices Inc.
- Package:
- 8-SOIC (0.154, 3.90mm Width)
- Datasheet:
- Description:
- IC VREF SERIES 0.04%/0.03% 8SOIC
- In Stock:
- 436
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
AD780BR Specifications
- Packaging:Bulk,Tube
- Series:-
- ProductStatus:Obsolete
- ReferenceType:Series, Shunt
- OutputType:Programmable
- Voltage-Output(Min/Fixed):±2.5V, ±3V
- Voltage-Output(Max):-
- Current-Output:10 mA
- Tolerance:±0.04%, ±0.03%
- TemperatureCoefficient:3ppm/°C
- Noise-01Hzto10Hz:4µVp-p
- Noise-10Hzto10kHz:-
- Voltage-Input:4V ~ 36V
- Current-Supply:1mA
- Current-Cathode:1 mA
- OperatingTemperature:-40°C ~ 85°C (TA)
- MountingType:Surface Mount
AD780BR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD780BR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD780BR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
AD780BR information
Views：

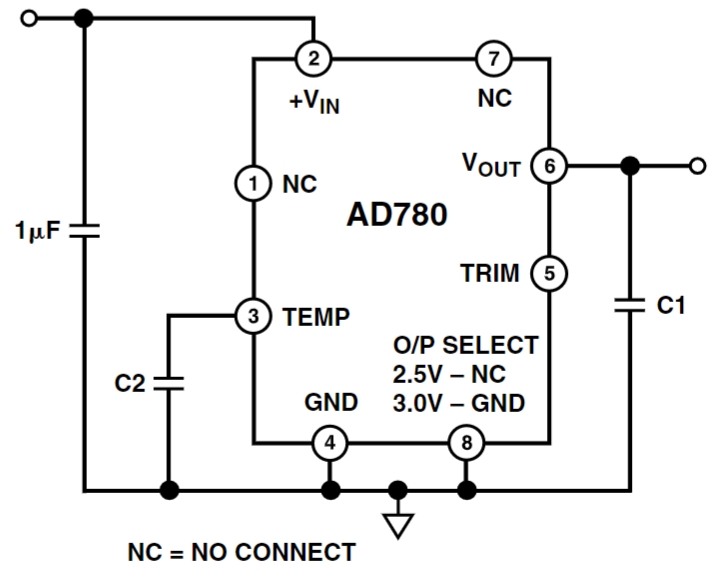

AD780BR Typical application Circuitry
The AD780BR is a precision, low-power, bandgap voltage reference chip, designed to provide a stable and accurate reference voltage for various applications, including analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and precision instrumentation.
Application Scenarios:
1. Precision Instrumentation: The AD780BR is used in high-accuracy instruments such as oscilloscopes and multimeters.
2. Data Conversion: It provides a reference voltage for ADCs and DACs in data acquisition systems.
3. Power Supply Regulation: The AD780BR can be used as a reference in power supply circuits to ensure stable output voltages.
Parameter Features:
1. High Accuracy: The AD780BR offers excellent accuracy and low-temperature coefficient, ensuring stable performance over a wide temperature range.
2. Low Noise: Due to its low noise features, it can be used in delicate applications.
3. Wide Output Voltage Range: The user may choose between 2.5V and 3.0V as the output voltages for this device.
4. Low Power Consumption: The battery-powered AD780BR is perfect for low-power applications because of its low-power design.
Detailed Circuit Design for Data Conversion System:
In this scenario, we'll design a circuit for a data conversion system using the AD780BR.
1. Voltage Selection: Connect the SET pin to either the VOUT pin or ground (GND) to select the desired output voltage (2.5V or 3.0V). For a 2.5V output, connect the SET pin to GND; for a 3.0V output, connect it to VOUT.
2. Bypass Capacitor: To stabilize the output voltage and filter out any noise, place a bypass capacitor (usually 10µF) between the VOUT and GND pins.
3. Load Connection: Attach the VOUT pin to the ADC or DAC's reference voltage input. Make sure the load doesn't require more current than what the AD780BR can provide.
4. Power Source: Give the VIN pin a reliable, clean power source. At the very least, the input voltage must be greater than the chosen output voltage by the dropout voltage as stated in the datasheet.
5. Thermal Considerations: Ensure adequate heat dissipation if the device operates in a high-temperature environment or if the input voltage is significantly higher than the output voltage.
Design Considerations:
1. Power Supply Rejection Ratio (PSRR): Use a clean power supply or add additional filtering to minimize the effect of supply voltage variations on the output voltage.
2. Load Regulation: Minimize the load current variations to maintain the accuracy of the output voltage.
3. Temperature Stability: Consider the temperature coefficient of the AD780BR and the temperature variation of the application to ensure stable performance across the operating temperature range.
By following these guidelines and using the AD780BR, a data conversion system with a stable and accurate reference voltage can be achieved.
