Analog Devices Inc. AD780BNZ
- Part No.:
- AD780BNZ
- Manufacturer:
- Analog Devices Inc.
- Package:
- 8-DIP (0.300, 7.62mm)
- Datasheet:
- Description:
- IC VREF SERIES 0.04%/0.03% 8DIP
- In Stock:
- 3105
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
AD780BNZ Specifications
- Packaging:Tube
- Series:-
- ProductStatus:Active
- ReferenceType:Series, Shunt
- OutputType:Programmable
- Voltage-Output(Min/Fixed):±2.5V, ±3V
- Voltage-Output(Max):-
- Current-Output:10 mA
- Tolerance:±0.04%, ±0.03%
- TemperatureCoefficient:3ppm/°C
- Noise-01Hzto10Hz:4µVp-p
- Noise-10Hzto10kHz:-
- Voltage-Input:4V ~ 36V
- Current-Supply:1mA
- Current-Cathode:1 mA
- OperatingTemperature:-40°C ~ 85°C (TA)
- MountingType:Through Hole
AD780BNZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD780BNZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD780BNZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
AD780BNZ information
Views：

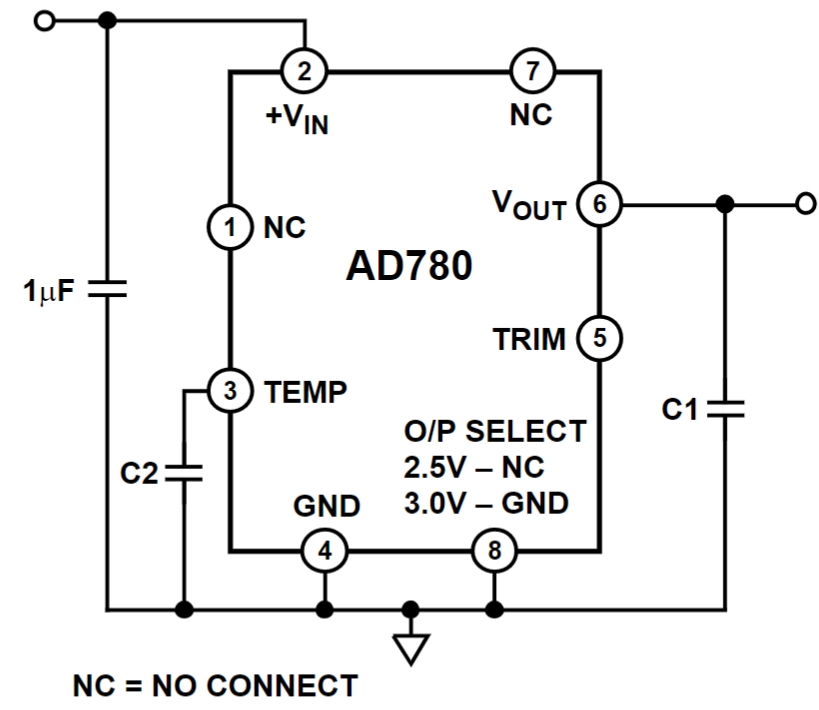

AD780BNZ Typical application Circuitry
The AD780BNZ is a high-precision, low-power, bandgap voltage reference chip. Its purpose is to supply precision instrumentation, digital-to-analog converters (DACs), and analog-to-digital converters (ADCs) with a consistent and precise reference voltage.
Application Scenarios:
1. Precision Measurement Systems: The AD780BNZ is used in systems that require highly accurate measurements, such as laboratory instruments and medical devices.
2. Power Supply Regulation: It can be used to provide a reference voltage for regulating power supplies in electronic equipment.
3. Data Acquisition Systems: In systems that collect and analyze data, the AD780BNZ provides a stable reference voltage for ADCs and DACs.
Parameter Features:
1. High Accuracy: The AD780BNZ offers excellent accuracy and low temperature coefficient, ensuring stable performance over a wide temperature range.
2. Low Noise: It is appropriate for delicate applications because to its low noise properties.
3. Wide Output Voltage Range: The user may choose between the device's 2.5V and 3.0V output voltages.
4. Low Power Consumption: The AD780BNZ is perfect for battery-powered devices because it is made for low power operation.
Detailed Circuit Design for Precision Measurement System:
In this scenario, we'll design a circuit for a precision measurement system using the AD780BNZ.
1. Voltage Selection: Connect the SET pin to either the VOUT pin or ground (GND) to select the desired output voltage (2.5V or 3.0V). For a 2.5V output, connect the SET pin to GND; for a 3.0V output, connect it to VOUT.
2. Bypass Capacitor: To stabilize the output voltage and filter out any noise, place a bypass capacitor (usually 10µF) between the VOUT and GND pins.
3. Link to Load: Attach the VOUT pin to the input of the ADC or DAC, or any other device that needs a reference voltage. Make sure the load doesn't require more current than what the AD780BNZ can provide.
4. Power Source: Give the VIN pin a reliable, clean power source. At the very least, the input voltage must be greater than the chosen output voltage by the dropout voltage as stated in the datasheet.
5. Thermal Considerations: Ensure adequate heat dissipation if the device operates in a high-temperature environment or if the input voltage is significantly higher than the output voltage.
Design Considerations:
1. Power Supply Rejection Ratio (PSRR): Use a clean power supply or add additional filtering to minimize the effect of supply voltage variations on the output voltage.
2. Load Regulation: Minimize the load current variations to maintain the accuracy of the output voltage.
3. Temperature Stability: Consider the temperature coefficient of the AD780BNZ and the temperature variation of the application to ensure stable performance across the operating temperature range.
By following these guidelines and using the AD780BNZ, a precision measurement system with a stable and accurate reference voltage can be achieved.
