Analog Devices Inc. AD680ARZ
- Part No.:
- AD680ARZ
- Manufacturer:
- Analog Devices Inc.
- Package:
- 8-SOIC (0.154, 3.90mm Width)
- Datasheet:
-
AD680ARZ.pdf
- Description:
- IC VREF SERIES 0.2% 8SOIC
- In Stock:
- 324
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
AD680ARZ Specifications
- Packaging:Tube
- Series:-
- ProductStatus:Active
- ReferenceType:Series
- OutputType:Fixed
- Voltage-Output(Min/Fixed):2.5V
- Voltage-Output(Max):-
- Current-Output:10 mA
- Tolerance:±0.2%
- TemperatureCoefficient:20ppm/°C
- Noise-01Hzto10Hz:10µVp-p
- Noise-10Hzto10kHz:-
- Voltage-Input:4.5V ~ 36V
- Current-Supply:280µA
- Current-Cathode:-
- OperatingTemperature:-40°C ~ 85°C (TA)
- MountingType:Surface Mount
AD680ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD680ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD680ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
AD680ARZ information
Views：

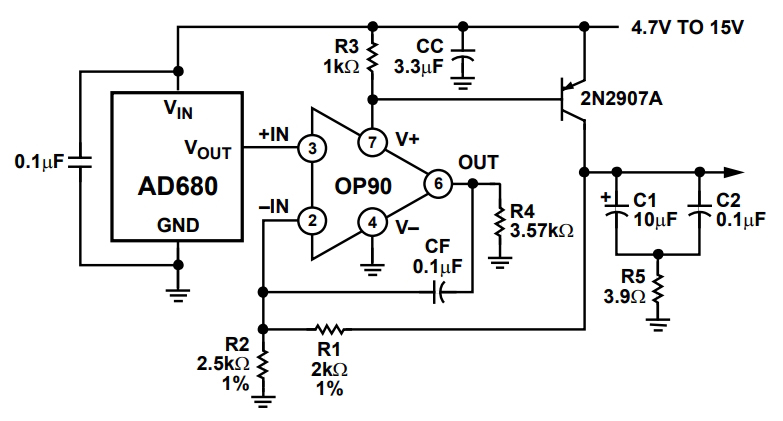

AD680ARZ Typical application Circuitry
At its core, the AD680ARZ is a bandgap voltage reference and regulator. In layman's terms, it ensures a consistent voltage output irrespective of varying input voltages or load changes.
Where Does It Shine?
- Data Acquisition Systems: Consistency is vital when obtaining data, and this chip ensures the systems have a stable voltage reference.
- Instrumentation: Precision tools require precision power, and that's exactly what AD680ARZ offers.
- Analog to Digital Converters (ADCs): Any system requiring a constant voltage to facilitate accurate analog to digital conversion will benefit from this device.
Key Features:
- Voltage Output: A steady 2.5V or 2.0V, which is both temperature-compensated and burn-in stabilized.
- Low Dropout: Only 1.1V, allowing the chip to function even when there's a minor difference between input and output voltage.
- Low Noise: Maintains a tranquil operation with minimal voltage noise, thus ensuring signal fidelity.
Case Study: Integration in a Data Acquisition System
Imagine a scenario wherein you are tasked with designing a data acquisition system requiring a steadfast voltage reference. The AD680ARZ becomes indispensable. Here's a breakdown:
1. Supply Input:
- Pin 8 (Vin): This is the lifeline of the chip, where you provide the input voltage, typically within the range of 4V to 36V.
2. Voltage Output:
- Pin 4 (Vout): The culmination of AD680ARZ's hard work; a stable 2.5V or 2.0V is available here, ready to serve as a reference for your data system.
3. Grounding:
- Pin 5 (GND): Essential for any electrical system, this pin needs to be properly grounded to ensure optimal performance.
4. Noise Reduction:
- Pin 6 (N.C.): Attach a decoupling capacitor here. It will aid in further reducing noise, ensuring the AD680ARZ operates at its best.
Attention to Detail:
- Thermal Conditions: The AD680ARZ is stalwart, but it's essential to ensure it doesn't overheat. Any thermally-related problems can be avoided by using suitable heat sinks and making sure there is adequate airflow.
- Capacitor Value: The decoupling capacitor's value should be judiciously chosen. An optimal value helps in achieving the best noise performance.
- Supply Voltage: Make sure the input voltage always stays within the allowed range. The chip's performance may be hampered by an excessive high or low.
- Load Changes: Sudden changes in load conditions can affect performance. Ensure that the system's load remains relatively consistent or that the chip can handle the load variations.
In conclusion, the AD680ARZ isn't just a chip; it's a testament to the progress we've made in analog electronics. It stands as a guard, ensuring that irrespective of the chaos outside, the voltage remains unwavering. A tool every analog enthusiast should be well-acquainted with!
