Name: AD587JRZ-REEL
Brand: Analog Devices Inc.
SKU: AD587JRZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD587JRZ-REEL

Part No.:: AD587JRZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: AD587JRZ-REEL.pdf

Description:: IC VREF SERIES 0.1% 8SOIC

In Stock:: 3859

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD587JRZ-REEL Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
10V
Voltage-Output(Max):
-
Current-Output:
10 mA
Tolerance:
±0.1%
TemperatureCoefficient:
20ppm/°C
Noise-01Hzto10Hz:
4µVp-p
Noise-10Hzto10kHz:
-
Voltage-Input:
13.5V ~ 36V
Current-Supply:
4mA
Current-Cathode:
-
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Surface Mount

AD587JRZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD587JRZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD587JRZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD587JRZ-REEL information

Views：

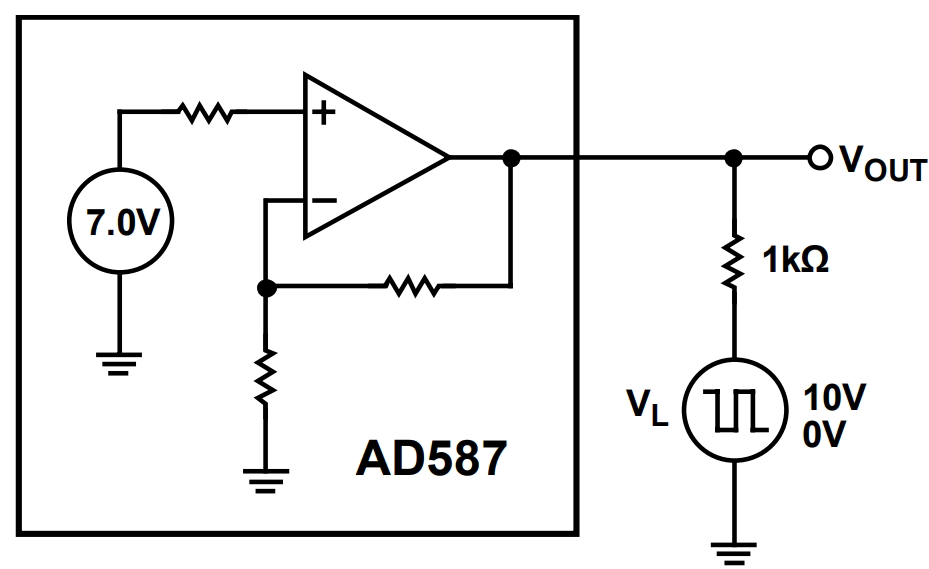

AD587JRZ-REEL Typical application Circuitry

AD587JRZ-REEL

The AD587JRZ-REEL is a high-precision, low-noise voltage reference chip that provides a stable 10V output, ideal for applications requiring an accurate reference voltage.

Application Environments: It is frequently used in precision measurement devices, calibration systems, and high-resolution analog-to-digital converters where a reliable voltage reference is essential.

Characteristics: The AD587JRZ-REEL is known for its excellent stability, low temperature drift, and minimal noise, making it suitable for high-accuracy applications.

Circuit Design Example: Voltage Reference for a High-Resolution ADC System

In a high-resolution analog-to-digital converter (ADC) system, the AD587JRZ-REEL can be used to provide a stable reference voltage for ensuring accurate conversions.

1. Power Supply Connectivity: Connect a +15V power supply to the VIN pin (pin 8) of the AD587JRZ-REEL. Connect the GND pin (pin 4) to the system's ground.

2. Reference Voltage Output: The VOUT pin (pin 6) provides the 10V reference voltage, which can be connected to the reference input of the ADC.

3. Noise Filtering: Place a 10µF tantalum capacitor between VIN and GND, and a 0.1µF ceramic capacitor between VOUT and GND to filter out noise and stabilize the reference voltage.

4. Load Management: To keep the reference voltage accurate, make sure the load attached to VOUT does not surpass the designated maximum output current.

Design Considerations:

- Input Voltage Specifications: Verify that the input voltage falls within the recommended range to ensure proper operation and prevent damage to the AD587JRZ-REEL.

- Thermal Stability: Consider the temperature coefficient of the AD587JRZ-REEL and the ambient temperature to ensure consistent performance across different temperatures.

- Noise Suppression: Implement effective grounding and noise reduction techniques to maintain the purity of the reference voltage.

- Circuit Protection: Incorporate protective measures such as overvoltage protection and reverse polarity protection to safeguard the AD587JRZ-REEL and the connected circuitry.

By integrating the AD587JRZ-REEL into a high-resolution ADC system, one can achieve a highly accurate and stable voltage reference, enhancing the precision and reliability of the analog-to-digital conversion process.
