Analog Devices Inc. AD581SH/883B
- Part No.:
- AD581SH/883B
- Manufacturer:
- Analog Devices Inc.
- Package:
- TO-205AA, TO-5-3 Metal Can
- Datasheet:
-
AD581SH/883B.pdf
- Description:
- IC VREF SERIES 10V TO5
- In Stock:
- 3312
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
AD581SH/883B Specifications
- Packaging:Tube
- Series:Military, MIL-STD-883
- ProductStatus:Active
- ReferenceType:Series
- OutputType:Fixed
- Voltage-Output(Min/Fixed):10V
- Voltage-Output(Max):-
- Current-Output:10 mA
- Tolerance:-
- TemperatureCoefficient:30ppm/°C
- Noise-01Hzto10Hz:40µVp-p
- Noise-10Hzto10kHz:-
- Voltage-Input:12V ~ 30V
- Current-Supply:1mA
- Current-Cathode:-
- OperatingTemperature:-55°C ~ 125°C
- MountingType:Through Hole
AD581SH/883B this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD581SH/883B price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD581SH/883B to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
AD581SH/883B information
Views：

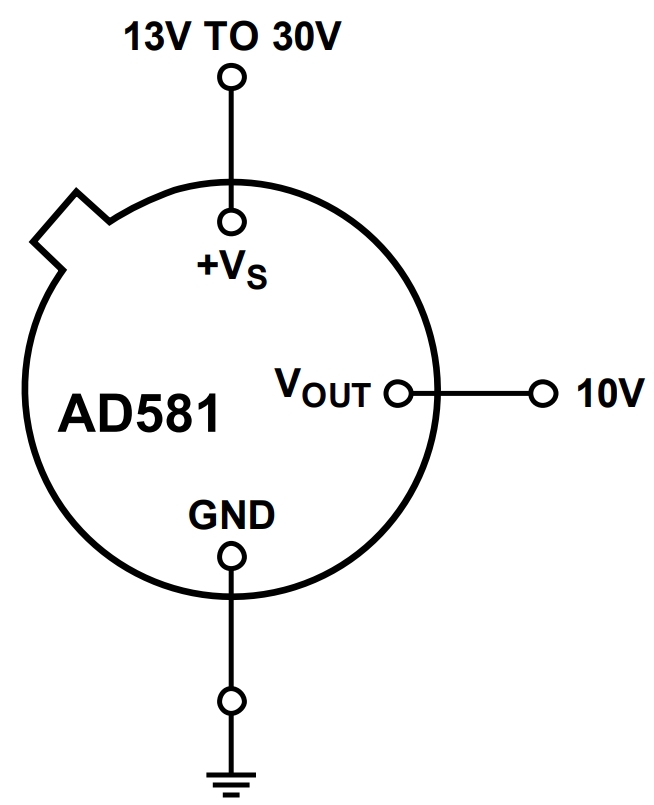

AD581SH/883B Typical application Circuitry
The AD581SH/883B is a high-precision, temperature-compensated voltage reference chip that provides a fixed 10V output voltage.
Application Scenarios: This chip is often used in precision measurement instruments, calibration equipment, and high-accuracy analog-to-digital converters where a stable and accurate reference voltage is critical.
Parameter Features: The AD581SH/883B features include a low temperature coefficient, high accuracy, low output impedance, and a wide operating temperature range.
Circuit Design Example: Precision Reference for an Analog-to-Digital Converter
In an analog-to-digital converter (ADC) system, the AD581SH/883B can be used to provide a stable reference voltage for accurate digital conversion.
1. Power Supply Connection: Connect a positive power supply (e.g., +15V) to the VIN pin (pin 2) and ground the GND pin (pin 1).
2. Output Voltage: The VOUT pin (pin 3) provides the 10V reference voltage, which can be connected directly to the reference voltage input of the ADC.
3. Bypass Capacitor: Place a 10µF tantalum capacitor between the VIN pin and GND to filter out noise and ensure stability.
4. Load Regulation: To preserve the accuracy of the reference voltage, make sure the load attached to the VOUT pin does not surpass the designated maximum output current.
Design Points to Remember:
- Input Voltage Range: To prevent damage to the chip and guarantee correct functioning, make sure the input voltage is within the designated range.
- Temperature Stability: Consider the temperature coefficient of the AD581SH/883B and the operating temperature range of the application to maintain accuracy.
- Noise Reduction: Use proper PCB layout techniques and filtering to minimize noise and maintain the integrity of the reference voltage.
- Protection: Implement protection mechanisms, such as overvoltage protection or current limiting, to safeguard the chip against abnormal operating conditions.
By incorporating the AD581SH/883B into an ADC system, one can achieve a highly stable and accurate voltage reference, enhancing the precision and reliability of the digital conversion process.
