Analog Devices Inc. AD581SH
- Part No.:
- AD581SH
- Manufacturer:
- Analog Devices Inc.
- Package:
- TO-205AA, TO-5-3 Metal Can
- Datasheet:
-
AD581SH.pdf
- Description:
- IC VREF SERIES 0.3% TO5-3
- In Stock:
- 2265
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
AD581SH Specifications
- Packaging:Box
- Series:-
- ProductStatus:Active
- ReferenceType:Series
- OutputType:Fixed
- Voltage-Output(Min/Fixed):10V
- Voltage-Output(Max):-
- Current-Output:10 mA
- Tolerance:±0.3%
- TemperatureCoefficient:30ppm/°C
- Noise-01Hzto10Hz:40µVp-p
- Noise-10Hzto10kHz:-
- Voltage-Input:13V ~ 30V
- Current-Supply:1mA
- Current-Cathode:-
- OperatingTemperature:-55°C ~ 125°C (TA)
- MountingType:Through Hole
AD581SH this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD581SH price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD581SH to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
AD581SH information
Views：

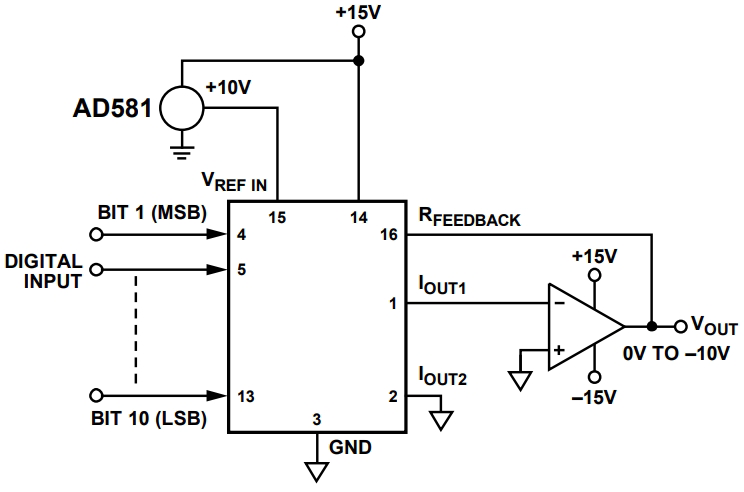

AD581SH Typical application Circuitry
The AD581SH is a high-precision voltage reference chip designed by Analog Devices. Because it offers a precise and steady 10V output, it can be used in a variety of applications where a dependable voltage reference is necessary.
Functionality:
The AD581SH offers a stable 10V output with excellent temperature stability and low noise. It is designed to maintain its accuracy over a wide range of operating conditions, making it ideal for precision applications.
Application Scenarios:
1. Precision Instrumentation: In laboratory equipment for calibration and signal conditioning.
2. Data Conversion Systems: Used as a digital-to-analog and analog-to-digital reference voltage.
3. Power Supplies: In high-precision power supply units for stable voltage regulation.
4. Industrial Automation: For process control and monitoring systems requiring an accurate voltage reference.
Parameter Features:
- Output Voltage: Fixed 10V with high accuracy.
- Temperature Coefficient: Low, ensuring stability over temperature variations.
- Input Voltage Range: Typically 12V to 30V, allowing flexibility in power supply design.
- Load Regulation: Minimal change in output voltage with varying load conditions.
Detailed Circuit Design for a Data Conversion System:
Consider a scenario where the AD581SH is used as a reference voltage in a data conversion system.
1. Power Supply Connection:
- Connect a +15V supply to the input pin (Pin 3) of the AD581SH.
- Ground the GND pin (Pin 2) to the system ground.
2. Output Voltage Setup:
- Connect the output pin (Pin 6) to the reference voltage input of the analog-to-digital or digital-to-analog converter.
- Add a decoupling capacitor (e.g., 1µF) between the output pin and ground to filter out noise and ensure stability.
3. Load Regulation:
- Ensure that the load connected to the output does not draw more than the maximum specified current for the AD581SH (typically around 10mA).
- Use an operational amplifier or a buffer to isolate the AD581SH from the load if higher load currents are required.
4. Thermal Considerations:
- Mount the AD581SH on a heat sink if the input-to-output voltage differential is large or if the ambient temperature is high, to dissipate heat and maintain stability.
5. Input Voltage Regulation:
- Use a voltage regulator or a filtering circuit at the input if the supply voltage is noisy or fluctuates, to ensure a stable input to the AD581SH.
6. Protection:
- Add a reverse-polarity protection diode at the input if there is a risk of reverse voltage being applied, to prevent damage to the AD581SH.
Considerations:
- Input Voltage Stability: Ensure that the input voltage is stable and within the specified range for the AD581SH.
- Load Current Limit: Do not exceed the maximum load current specification to avoid degradation of output accuracy.
- Thermal Management: Provide adequate heat dissipation to prevent overheating and ensure stable operation.
- Protection Circuits: Implement protection mechanisms to safeguard the AD581SH against adverse conditions.
By adhering to these guidelines, the AD581SH can be effectively integrated into a data conversion system, providing a stable and accurate 10V reference voltage for precise data conversion.
