Analog Devices Inc. AD581JH
- Part No.:
- AD581JH
- Manufacturer:
- Analog Devices Inc.
- Package:
- TO-205AA, TO-5-3 Metal Can
- Datasheet:
-
AD581JH.pdf
- Description:
- IC VREF SERIES 0.3% TO5-3
- In Stock:
- 541
- Quantity:
- Add To Cart
- For more detailed including pricing and shipping
- Quick response, quick quotation
- Flash shipment, no worries after sales
- Original channel, guarantee of the authentic products
Please send RFQ , we will respond immediately.
Purchase and inquiry
AD581JH Specifications
- Packaging:Bulk
- Series:-
- ProductStatus:Active
- ReferenceType:Series
- OutputType:Fixed
- Voltage-Output(Min/Fixed):10V
- Voltage-Output(Max):-
- Current-Output:10 mA
- Tolerance:±0.3%
- TemperatureCoefficient:30ppm/°C
- Noise-01Hzto10Hz:40µVp-p
- Noise-10Hzto10kHz:-
- Voltage-Input:13V ~ 30V
- Current-Supply:1mA
- Current-Cathode:-
- OperatingTemperature:0°C ~ 70°C (TA)
- MountingType:Through Hole
AD581JH this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD581JH price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD581JH to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.
Purchase in icwhale.com
There is no doubt that you may place an order without registering to icwhale.com.
We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.
Means of Payment in icwhale.com
For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.
RFQ (Request for Quotations) in icwhale.com
It is recommended to acquire for quotations to get the latest prices and inventories about the parts.
Our sales will reply to your request by email within 24 hours.
Warm reminder
1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.
Shipping & Handling
Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)
The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.
Shipping Method
Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.
Order Tracking for International Orders
Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.
AD581JH information
Views：

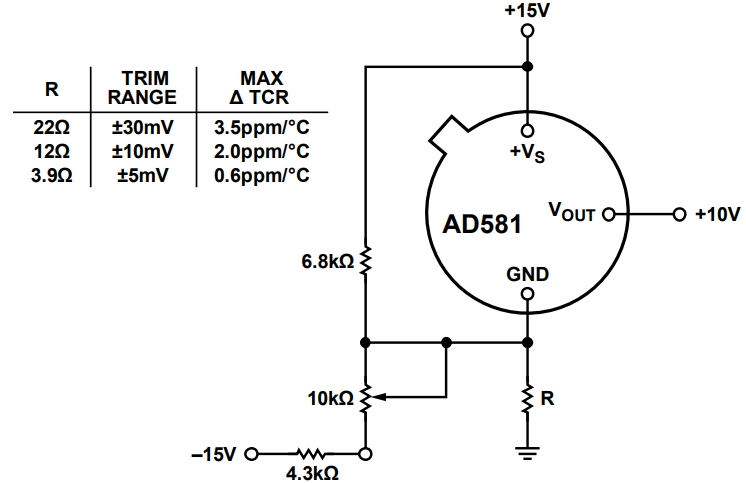

AD581JH Typical application Circuitry
The AD581JH is a high-precision, low-dropout, 10V voltage reference chip designed by Analog Devices. Because of its reputation for accuracy and stability, it can be used in a variety of applications where a steady voltage reference is necessary.
Functionality: The AD581JH ensures little voltage variation across temperature changes by providing a stable 10V output with a low temperature coefficient. Additionally, it has a low dropout voltage, which enables it to retain output accuracy with very little voltage variation between the input and output.
Application Scenarios:
1. Precision Instrumentation: Calibration and signal conditioning apparatus in laboratories.
2. Data Conversion Systems: Used as a digital-to-analog and analog-to-digital reference voltage.
3. Power Supplies: In high-precision power supply units for stable voltage regulation.
4. Industrial Automation: For process control and monitoring systems requiring accurate voltage reference.
Parameter Features:
- Output Voltage: Fixed 10V with high accuracy.
- Temperature Coefficient: Low, ensuring stability over temperature variations.
- Input Voltage Range: Typically 12V to 30V, allowing flexibility in power supply design.
- Load Regulation: Minimal change in output voltage with varying load conditions.
Detailed Circuit Design for a Precision Power Supply:
Consider a scenario where the AD581JH is used in a precision power supply unit.
1. Power Supply Connection:
- Connect a +15V supply to the input pin (Pin 3) of the AD581JH.
- Ground the GND pin (Pin 2) to the system ground.
2. Output Voltage Setup:
- Connect the output pin (Pin 6) to the load or the circuit requiring a 10V reference.
- Add a decoupling capacitor (e.g., 1µF) between the output pin and ground to filter out noise and ensure stability.
3. Load Regulation:
- Ensure that the load connected to the output does not draw more than the maximum specified current for the AD581JH (typically around 10mA).
- For higher load currents, use an operational amplifier or a buffer to isolate the AD581JH from the load.
4. Thermal Considerations:
- Mount the AD581JH on a heat sink if the input-to-output voltage differential is large or if the ambient temperature is high, to dissipate heat and maintain stability.
5. Input Voltage Regulation:
- Use a voltage regulator or a filtering circuit at the input if the supply voltage is noisy or fluctuates, to ensure a stable input to the AD581JH.
6. Protection:
- Add a reverse-polarity protection diode at the input if there is a risk of reverse voltage being applied, to prevent damage to the AD581JH.
Considerations:
- Input Voltage Stability: Ensure that the input voltage is stable and within the specified range for the AD581JH.
- Load Current Limit: Do not exceed the maximum load current specification to avoid degradation of output accuracy.
- Thermal Management: Provide adequate heat dissipation to prevent overheating and ensure stable operation.
- Protection Circuits: Implement protection mechanisms to safeguard the AD581JH against adverse conditions.
By adhering to these guidelines, the AD581JH can be effectively integrated into a precision power supply, providing a stable and accurate 10V reference voltage for various applications.
