Analog Devices Inc. AD5761RARUZ

Part No.:: AD5761RARUZ

Manufacturer:: Analog Devices Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD5761RARUZ.pdf

Description:: IC DAC 16BIT V-OUT 16TSSOP

In Stock:: 3465

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5761RARUZ Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
1
SettlingTime:
9µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI
ReferenceType:
External, Internal
Voltage-SupplyAnalog:
4.5V ~ 30V, -16.5V
Voltage-SupplyDigital:
1.7V ~ 5.5V
INL/DNL(LSB):
±8 (Max), ±1 (Max)
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 125°C

AD5761RARUZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5761RARUZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5761RARUZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5761RARUZ information

Views：

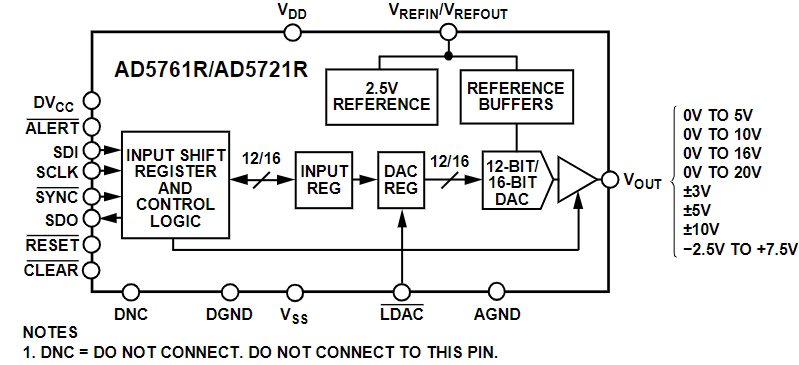

AD5761RARUZ Typical application Circuitry

AD5761RARUZ

The AD5761RARUZ is a 16-bit digital-to-analog converter (DAC) that provides high precision and accuracy in converting digital signals to analog voltages.

Application Scenarios: It is commonly used in precision instrumentation, industrial control systems, and automated test equipment where accurate analog output is required.

Parameter Features: The AD5761RARUZ features a 16-bit resolution, a wide output voltage range, low power consumption, and an integrated output buffer amplifier.

Circuit Design Example: Precision Signal Generator

In a precision signal generator, the AD5761RARUZ can be used to generate accurate and stable analog signals for testing and calibration purposes.

1. Power Supply Connections: Connect a +5V supply to the VDD pin (pin 24) and a -5V supply to the VSS pin (pin 11). Ground the GND pin (pin 23).

2. Digital Interface Configuration: Connect the SCLK (pin 6), SDIN (pin 5), and SYNC (pin 4) pins to the corresponding SPI interface pins on a microcontroller for serial data communication.

3. Output Voltage Programming: The microcontroller sends a 16-bit data word to the AD5761RARUZ via the SPI interface to set the desired output voltage. The data word format is specified in the chip's datasheet.

4. Analog Output Connection: The VOUT pin (pin 10) provides the analog output voltage, which can be used as the signal output for the signal generator.

Design Considerations:

- Decoupling Capacitors: Place decoupling capacitors close to the VDD and VSS pins to ensure a stable power supply and reduce noise.

- SPI Communication: Ensure that the SPI communication timing meets the specifications to prevent data errors.

- Output Filtering: Depending on the application, a low-pass filter may be needed at the output to remove high-frequency noise.

- Temperature Considerations: Be mindful of temperature variations that might affect the performance of the DAC and implement appropriate thermal management if necessary.

By using the AD5761RARUZ in a precision signal generator circuit, one can achieve highly accurate and stable analog signal output, making it suitable for various testing and calibration applications.
