Name: AD5754RBREZ-REEL7
Brand: Analog Devices Inc.
SKU: AD5754RBREZ-REEL7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD5754RBREZ-REEL7

Part No.:: AD5754RBREZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 24-TSSOP (0.173, 4.40mm Width) Exposed Pad

Datasheet:: AD5754RBREZ-REEL7.pdf

Description:: IC DAC 16BIT V-OUT 24TSSOP

In Stock:: 3905

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5754RBREZ-REEL7 Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width) Exposed Pad
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
iCMOS®
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
4
SettlingTime:
12µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External, Internal
Voltage-SupplyAnalog:
±4.5V ~ 16.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±16 (Max), ±1 (Max)
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 85°C

AD5754RBREZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5754RBREZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5754RBREZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5754RBREZ-REEL7 information

Views：

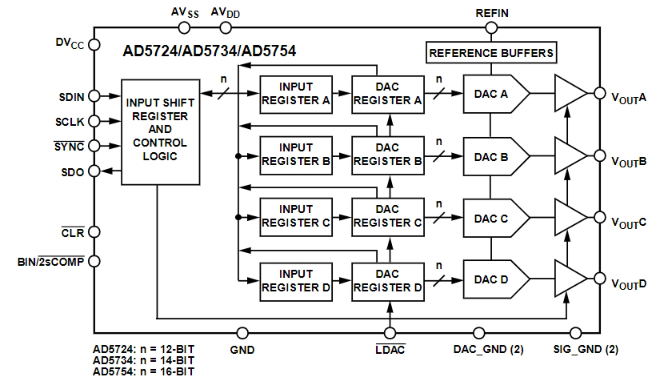

AD5754RBREZ-REEL7 Typical application Circuitry

AD5754RBREZ-REEL7

The AD5754RBREZ-REEL7 is a versatile quad-channel, 16-bit digital-to-analog converter (DAC) known for its high precision and flexibility in various applications.

Primary Functions:

This DAC is engineered to transform digital input signals into analog voltage outputs with high accuracy. It supports multiple output ranges, both unipolar and bipolar, catering to diverse application requirements.

Application Domains:

1. Automated Industrial Systems: For precise control of machinery, actuators, and sensors.

2. Laboratory Instrumentation: In equipment requiring accurate signal generation and measurement.

3. Communication Systems: For analog signal modulation and conversion in telecommunication devices.

4. Data Logging Equipment: In systems that necessitate the conversion of digital data to analog signals for monitoring and recording.

Key Characteristics:

- Resolution: Offers 16-bit resolution for fine-grained output control.

- Selectable Output Ranges: Includes options like 0 to 5V, 0 to 10V, ±5V, and ±10V, adjustable via software commands.

- Quad Channels: Features four independent DAC channels for multi-output applications.

- Communication Protocol: Utilizes a Serial Peripheral Interface (SPI) for digital communication with microcontrollers or processors.

Circuit Implementation Example:

Consider a scenario where the AD5754RBREZ-REEL7 is employed in an automated industrial system to regulate four different actuators.

1. Power Supply Connections:

- Link a +15V supply to the AD5754RBREZ-REEL7 AVDD pin for the analog circuitry.

- Connect a +5V supply to the AD5754RBREZ-REEL7 DVDD pin for the digital circuitry.

- Ground the AGND and DGND pins to the system's common ground.

2. Reference Voltage Configuration:

- Attach a stable 10V reference source to the REF_IN(+) pin.

- Bridge the REF_OUT pin to the REF_IN(-) pin to buffer the reference voltage for the DAC.

3. Digital Communication Setup:

- Interface the SPI pins (SYNC, SCLK, SDIN) with the corresponding microcontroller pins for digital communication.

- Ground the LDAC pin for immediate updates of the DAC output upon receiving new data.

4. Output Channel Configuration:

- Connect each of the DAC output pins (AOUT1, AOUT2, AOUT3, AOUT4) to the respective actuators.

- Program the desired output voltage range for each channel through the SPI interface.

5. Noise Reduction Measures:

- Position decoupling capacitors near the AVDD and DVDD pins to minimize power supply noise.

- Implement low-pass filters at the DAC outputs to smooth the output signals.

6. Heat Management:

- Ensure adequate heat dissipation, particularly if the DAC operates in high-temperature conditions or at elevated output power levels.

Design Insights:

- Power Supply Integrity: Maintain stable and noise-free power supplies to preserve DAC output accuracy.

- Reference Voltage Reliability: The precision of the DAC outputs is directly influenced by the stability of the reference voltage.

- Clean Digital Signals: Ensure that the digital signals from the microcontroller to the DAC are free from noise and interference.

- Output Signal Quality: Depending on the specific application, additional output filtering might be necessary to achieve the desired signal characteristics.

By adhering to these principles, the AD5754RBREZ-REEL7 can be seamlessly integrated into an automated industrial system, providing precise and dependable analog outputs for controlling actuators.
