What is the Additional Feature ?

Name: AD5754BREZ
Brand: Analog Devices Inc.
SKU: AD5754BREZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD5754BREZ

Part No.:: AD5754BREZ

Manufacturer:: Analog Devices Inc.

Package:: 24-TSSOP (0.173, 4.40mm Width) Exposed Pad

Datasheet:

Description:: IC DAC 16BIT V-OUT 24TSSOP

In Stock:: 3021

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5754BREZ Specifications

Package/Case:
24-TSSOP (0.173, 4.40mm Width) Exposed Pad
Packaging:
Tube
Series:
iCMOS®
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
4
SettlingTime:
12µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External
Voltage-SupplyAnalog:
±4.5V ~ 16.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±16 (Max), ±1 (Max)
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 85°C

AD5754BREZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5754BREZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5754BREZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5754BREZ information

Views：

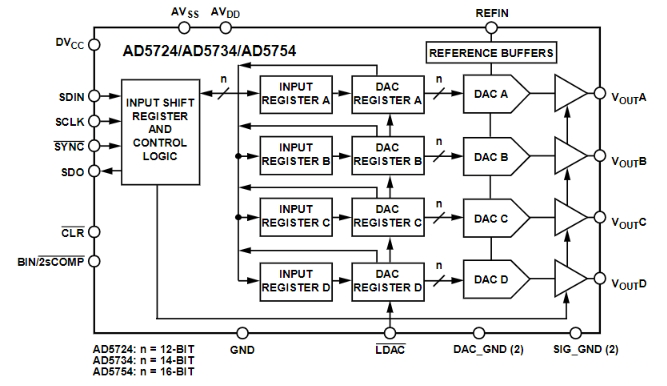

AD5754BREZ Typical application Circuitry

AD5754BREZ

A quad-channel, 16-bit digital-to-analog converter (DAC) called the AD5754BREZ was created for applications that need high-precision analog output. This chip belongs to the AD5754 family, which is renowned for its precision and adaptability.

Function: The primary function of the AD5754BREZ is to convert digital input signals into analog voltages with 16-bit resolution across four independent channels.

Application Scenarios: The AD5754BREZ is ideal for use in industrial automation, process control systems, precision instrumentation, and automated test equipment where accurate and stable analog outputs are essential.

Parameter Features:

- Quad-channel, 16-bit DAC

- Selectable output voltage ranges: 0 V to 5 V, 0 V to 10 V, ±5 V, ±10 V

- Serial interface that complies with DSP, MICROWIRETM, QSPITM, and SPI standards

- Inbuilt voltage reference and output amplifiers

- Power-on reset and brownout detection

Circuit Design for a Process Control System:

1. Supply Voltage Connection: For the analog supply, connect +15 V to pin 24 (VDD) and -15 V to pin 23 (VSS). For the digital supply, connect +5 V to pin 22 (AVDD).

2. Reference Voltage: Connect a precise +5 V reference voltage to pin 13 (REFIN/OUT) to set the DAC output range. Use capacitors close to this pin for noise reduction.

3. SPI Interface: Connect the microcontroller's SPI interface to the AD5754BREZ. Use pin 4 (SYNC) for chip select, pin 2 (SCLK) for the serial clock, pin 3 (SDIN) for serial data input, and pin 19 (SDO) for serial data output.

4. Channel Configuration: Program the output range for each DAC channel through the control register. For example, to set Channel A to a 0 V to 10 V range, send the appropriate configuration data via SPI.

5. Output Connection: The outputs for the DAC channels are on pins 10 (OUTA), 15 (OUTB), 7 (OUTC), and 16 (OUTD). Connect these to the respective inputs of the process control system.

Design Considerations:

- To reduce noise, use the proper decoupling capacitors at the power supply pins.

- To provide a correct DAC output, make sure the reference voltage is exact and consistent.

- Configure each DAC channel's output range according to the application's requirements.

- Adhere to the SPI interface timing specifications for reliable communication with the microcontroller.

In summary, the AD5754BREZ is a high-precision DAC suitable for various applications that require accurate and stable analog outputs. Following the detailed circuit design example and addressing the key design considerations, this chip can be effectively utilized in process control systems and similar applications.

AD5754BREZ FAQ

1. How to order AD5754BREZ on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that AD5754BREZ is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the AD5754BREZ. All suppliers must pass our qualification reviews before they can publish their products including AD5754BREZ on icwhale.com; we pay more attention to the channels and quality of AD5754BREZ products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the AD5754BREZ price and inventory displayed accurate?

The price and inventory of AD5754BREZ fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of AD5754BREZ?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the AD5754BREZ we delivered, we will accept the replacement or return of the AD5754BREZ only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of AD5754BREZ.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
