Analog Devices Inc. AD5641BKSZ-500RL7

Part No.:: AD5641BKSZ-500RL7

Manufacturer:: Analog Devices Inc.

Package:: 6-TSSOP, SC-88, SOT-363

Datasheet:: AD5641BKSZ-500RL7.pdf

Description:: IC DAC 14BIT V-OUT SC70-6

In Stock:: 2892

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5641BKSZ-500RL7 Specifications

Package/Case:
6-TSSOP, SC-88, SOT-363
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
nanoDAC®
ProductStatus:
Active
NumberofBits:
14
NumberofD/AConverters:
1
SettlingTime:
10µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
Supply
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±4 (Max), ±1 (Max)
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 125°C

AD5641BKSZ-500RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5641BKSZ-500RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5641BKSZ-500RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5641BKSZ-500RL7 information

Views：

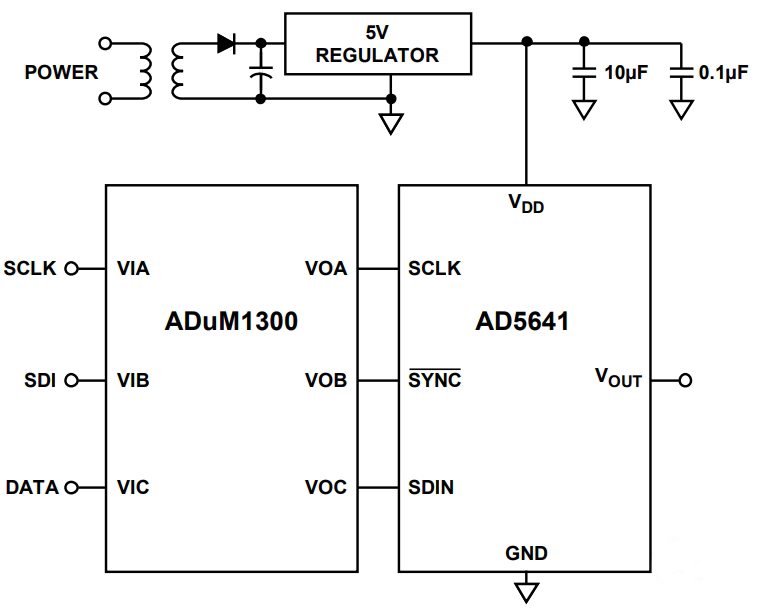

AD5641BKSZ-500RL7 Typical application Circuitry

AD5641BKSZ-500RL7

The AD5641BKSZ-500RL7 is a 14-bit digital-to-analog converter (DAC) from Analog Devices, featuring a compact form factor and low power consumption. It is designed for applications requiring high precision and resolution in a small footprint, such as portable instrumentation, medical devices, and industrial control systems.

Application Scenario: Precision Voltage Control in a Portable Instrument

In a portable instrument, such as a handheld oscilloscope, the AD5641BKSZ-500RL7 can be used to generate precise reference voltages for signal conditioning or measurement scaling.

Circuit Design:

1. Power Supply Connection:

- Connect VDD (pin 6) of the AD5641BKSZ-500RL7 to a +3.3V power supply.

- Connect GND (pin 1) of the AD5641BKSZ-500RL7 to the ground.

2. Reference Voltage Setup:

- Use the internal reference by connecting REFIN/REFOUT (pin 4) to VDD or leave it unconnected for default operation.

3. Digital Communication Interface:

- Connect SDI (pin 3) to the serial data input from the microcontroller.

- Connect SCLK (pin 5) to the serial clock input from the microcontroller.

4. DAC Output Connection:

- Connect VOUT (pin 2) to the input of the signal conditioning circuit or directly to the measurement input.

5. Control Pin Configuration:

- Connect SYNC (pin 7) to a digital output on the microcontroller to initiate the communication with the DAC.

Design Considerations:

- Power Supply Decoupling: Place a 0.1μF ceramic capacitor near the VDD and GND pins to reduce noise and stabilize the AD5641BKSZ-500RL7.

- Signal Integrity: Ensure short and direct paths for the SDI, SCLK, and SYNC lines to minimize potential signal degradation and electromagnetic interference.

- Reference Voltage: Utilize the internal reference for simplicity, or an external reference can be used for specific accuracy requirements.

- Output Stability: Consider adding a low-pass filter at the VOUT pin if a smooth analog output is required for the application.

Integrating the AD5641BKSZ-500RL7 into a portable instrument allows for precise and stable voltage control, enhancing the accuracy and reliability of the device's measurements.
