Analog Devices Inc. AD5624BRMZ

Part No.:: AD5624BRMZ

Manufacturer:: Analog Devices Inc.

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: AD5624BRMZ.pdf

Description:: IC DAC 12BIT V-OUT 10MSOP

In Stock:: 2599

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5624BRMZ Specifications

Package/Case:
10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Packaging:
Tube
Series:
nanoDAC®
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
4
SettlingTime:
4.5µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±0.5, ±0.25 (Max)
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

AD5624BRMZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5624BRMZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5624BRMZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5624BRMZ information

Views：

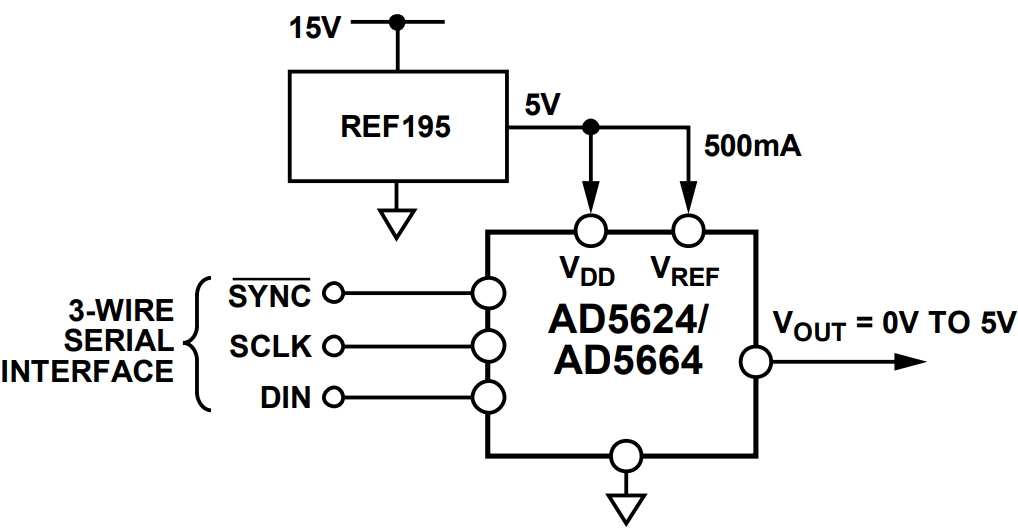

AD5624BRMZ Typical application Circuitry

AD5624BRMZ

The AD5624BRMZ is a quad-channel, 12-bit digital-to-analog converter (DAC) from the nanoDAC series. It features an integrated output amplifier and a low power consumption design. This chip is designed for applications that require multiple precision analog outputs, such as process control systems, data acquisition systems, and portable battery-powered devices.

Application Scenario: Multichannel Signal Control in an Industrial Automation System

In an industrial automation system, the AD5624BRMZ can be used to control multiple actuators or to provide reference voltages for sensors.

Circuit Design:

1. Power Supply Connection:

- VDD (pin 14) should be connected to a +5V power supply.

- GND (pin 7) should be connected to the ground.

2. Reference Voltage Configuration:

- REFIN/REFOUT (pin 8) should be connected to a +2.5V precision reference voltage to ensure accurate DAC output.

3. Digital Interface Setup:

- SDI (pin 3) should be connected to the serial data input from a microcontroller for setting the DAC output values.

- SCLK (pin 4) should be connected to the serial clock input from the microcontroller for synchronization.

4. DAC Output Connections:

- VOUTA (pin 10), VOUTB (pin 11), VOUTC (pin 12), and VOUTD (pin 13) of the AD5624BRMZ provide the analog outputs, which should be connected to the inputs of the actuators or sensors.

5. Control Pin Configuration:

- SYNC (pin 2) of the AD5624BRMZ should be connected to a digital output from the microcontroller to initiate data transfer.

Design Considerations:

- Ensure Power Supply Stability: Place a 0.1μF ceramic capacitor close to the VDD and GND pins of the AD5624BRMZ to filter out noise.

- Maintain Reference Voltage Accuracy: Use a stable and low-noise reference voltage for REFIN/REFOUT to ensure the precision of the DAC outputs.

- Optimize Digital Signal Paths: Keep the digital signal connections (SDI, SCLK, SYNC) short and direct to minimize signal degradation and electromagnetic interference.

- Isolate Analog Outputs: If the outputs are driving sensitive circuits, consider adding buffers to isolate the AD5624BRMZ from load variations.

By implementing the AD5624BRMZ in an industrial automation system, precise control of multiple channels can be achieved, enhancing the system's performance and flexibility.
