Analog Devices Inc. AD5623RBCPZ-3REEL7

Part No.:: AD5623RBCPZ-3REEL7

Manufacturer:: Analog Devices Inc.

Package:: 10-VFDFN Exposed Pad, CSP

Datasheet:: AD5623RBCPZ-3REEL7.pdf

Description:: IC DAC 12BIT V-OUT 10LFCSP

In Stock:: 3156

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5623RBCPZ-3REEL7 Specifications

Package/Case:
10-VFDFN Exposed Pad, CSP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
nanoDAC®
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
2
SettlingTime:
4.5µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External, Internal
Voltage-SupplyAnalog:
2.7V ~ 3.6V
Voltage-SupplyDigital:
2.7V ~ 3.6V
INL/DNL(LSB):
±0.5, ±0.25 (Max)
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

AD5623RBCPZ-3REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5623RBCPZ-3REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5623RBCPZ-3REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5623RBCPZ-3REEL7 information

Views：

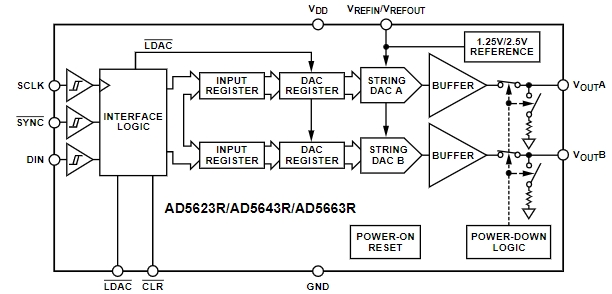

AD5623RBCPZ-3REEL7 Typical application Circuitry

AD5623RBCPZ-3REEL7

The AD5623RBCPZ-3REEL7 is a digital-to-analog converter (DAC) featuring a 12-bit resolution, which is part of the nanoDAC family. This chip is designed to be used in applications that require precise analog output with low power consumption. It is often found in portable devices, data acquisition systems, and industrial control systems.

Application Scenario: LED Brightness Control in a Portable Device

In a portable device, such as a handheld light meter, the AD5623RBCPZ-3REEL7 can be utilized to adjust the brightness of an LED based on the ambient light level.

Circuit Design of the AD5623RBCPZ-3REEL7:

1. Power Connection:

- VDD (pin 8) should be connected to a +3.3V power supply.

- GND (pin 4) should be connected to the ground.

2. Reference Voltage Setup:

- REFIN/REFOUT (pin 5) should be connected to a +2.5V precision reference voltage to ensure the accuracy of the DAC output.

3. Digital Input Configuration:

- SDI (pin 3) should be connected to the serial data input from a microcontroller to set the DAC output value.

- SCLK (pin 2) should be connected to the serial clock input from the microcontroller for synchronization of data transfer.

4. DAC Output Adjustment:

- VOUT (pin 6) provides the analog output, which should be connected to the control input of the LED driver circuit.

5. Control Pin Setup:

- SYNC (pin 1) should be connected to a digital output from the microcontroller to initiate the data transfer.

- LDAC (pin 7) can be connected to the ground if immediate updating of the DAC output is required upon completion of data transfer.

Design Considerations of the AD5623RBCPZ-3REEL7:

- Stabilize the Power Supply: A 0.1μF ceramic capacitor should be placed close to the VDD and GND pins to reduce noise.

- Maintain Reference Voltage Stability: The reference voltage should be stable and low noise to ensure the accuracy of the DAC output.

- Ensure Digital Signal Integrity: The digital signal paths (SDI, SCLK, SYNC) should be kept short and direct to minimize signal degradation and electromagnetic interference.

- Smooth the Output: If necessary, a low-pass filter can be added at the VOUT pin to provide a smooth analog output signal.

Incorporating the AD5623RBCPZ-3REEL7 into a portable device for LED brightness control allows for precise adjustment of the light output, enhancing the functionality and user experience of the device.
