What is the Additional Feature ?

Name: AD5620CRMZ-2REEL7
Brand: Analog Devices Inc.
SKU: AD5620CRMZ-2REEL7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD5620CRMZ-2REEL7

Part No.:: AD5620CRMZ-2REEL7

Manufacturer:: Analog Devices Inc.

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:

Description:: IC DAC 12BIT V-OUT 8MSOP

In Stock:: 2317

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5620CRMZ-2REEL7 Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR)
Series:
nanoDAC®
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
1
SettlingTime:
10µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
Internal
Voltage-SupplyAnalog:
5V
Voltage-SupplyDigital:
5V
INL/DNL(LSB):
±1 (Max), ±0.25 (Max)
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

AD5620CRMZ-2REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5620CRMZ-2REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5620CRMZ-2REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5620CRMZ-2REEL7 information

Views：

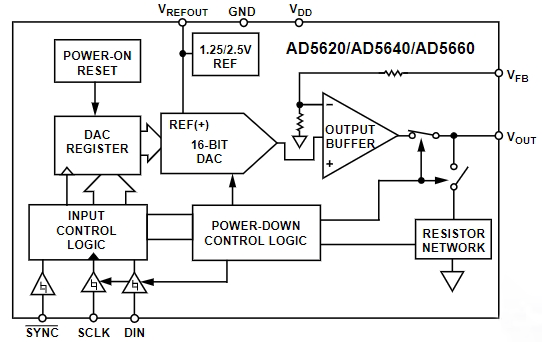

AD5620CRMZ-2REEL7 Typical application Circuitry

AD5620CRMZ-2REEL7

The AD5620CRMZ-2REEL7 is a 12-bit digital-to-analog converter (DAC) chip, similar to the AD5620CRMZ-2, but packaged in a reel for automated assembly processes. It features an integrated output amplifier and is part of the nanoDAC series, designed for applications requiring high precision and low power consumption. This chip is suitable for use in process control, data acquisition systems, and portable battery-powered instruments.

Application Scenario: Digital Potentiometer Replacement

In a scenario where a digital potentiometer is used for precise voltage control, the AD5620CRMZ-2REEL7 can serve as a more stable and accurate alternative.

Circuit Design of the AD5620CRMZ-2REEL7:

1. Power Supply:

- Connect VDD (pin 8) to a +5V power supply.

- Connect GND (pin 4) to the ground.

2. Reference Voltage:

- Connect REFIN/REFOUT (pin 5) to a +2.5V precision reference voltage to ensure accuracy in the DAC output.

3. Digital Input:

- Connect SDI (pin 3) to the serial data input from a microcontroller to set the DAC value.

- Connect SCLK (pin 2) to the serial clock input from the microcontroller for data synchronization.

4. DAC Output:

- The analog output is available at VOUT (pin 6). This can be connected to the circuit where voltage control is needed.

5. Control Pins:

- Connect SYNC (pin 1) to a digital output from the microcontroller to initiate data transfer.

- Connect LDAC (pin 7) to the ground if immediate updating of the DAC output is desired upon data transfer completion.

Design Considerations of the AD5620CRMZ-2REEL7:

- Power Supply Decoupling: Place a 0.1μF ceramic capacitor close to the VDD and GND pins to filter out noise.

- Reference Voltage Stability: Use a stable and low-noise reference voltage for REFIN/REFOUT to maintain DAC output accuracy.

- Digital Signal Integrity: Ensure that the digital signals (SDI, SCLK, SYNC) have short and direct paths to minimize signal degradation and interference.

- Output Filtering: Consider adding a low-pass filter at the VOUT pin if a smooth analog output is required for the application.

By utilizing the AD5620CRMZ-2REEL7 in place of a digital potentiometer, a circuit can achieve more precise and stable voltage control, making it ideal for applications where accuracy is critical.
