Analog Devices Inc. AD5620CRMZ-2

Part No.:: AD5620CRMZ-2

Manufacturer:: Analog Devices Inc.

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:

Description:: IC DAC 12BIT V-OUT 8MSOP

In Stock:: 3811

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5620CRMZ-2 Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tube
Series:
nanoDAC®
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
1
SettlingTime:
10µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
Internal
Voltage-SupplyAnalog:
5V
Voltage-SupplyDigital:
5V
INL/DNL(LSB):
±1 (Max), ±0.25 (Max)
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

AD5620CRMZ-2 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5620CRMZ-2 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5620CRMZ-2 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5620CRMZ-2 information

Views：

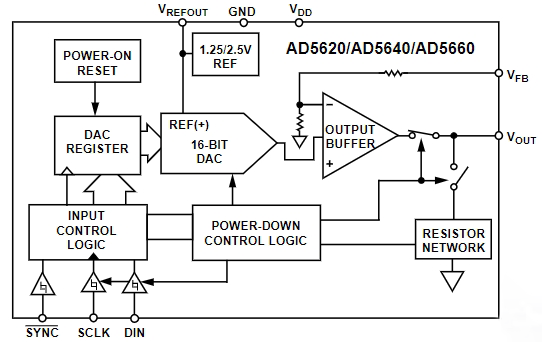

AD5620CRMZ-2 Typical application Circuitry

AD5620CRMZ-2

The AD5620CRMZ-2 is a digital-to-analog converter (DAC) chip that features a 12-bit resolution and an integrated output amplifier. It is part of the nanoDAC series, which is designed for applications requiring high precision and low power consumption. The AD5620CRMZ-2 is suitable for use in process control, data acquisition systems, and portable battery-powered instruments.

Application Scenario: Portable Battery-Powered Instrument

In a portable battery-powered instrument, such as a handheld environmental sensor, the AD5620CRMZ-2 can be used to generate precise analog output voltages for sensor calibration or actuator control.

Circuit Design of the AD5620CRMZ-2:

1. Power Supply:

- Connect VDD (pin 8) to a +5V power supply.

- Connect GND (pin 4) to the ground.

2. Reference Voltage:

- Connect REFIN/REFOUT (pin 5) to a +2.5V precision reference voltage for optimal performance.

3. Digital Input:

- Connect SDI (pin 3) to the serial data input from a microcontroller for setting the DAC value.

- Connect SCLK (pin 2) to the serial clock input from the microcontroller for synchronization.

4. DAC Output:

- The analog output is available at VOUT (pin 6). Connect this to the input of the sensor or actuator being controlled.

5. Control Pins:

- Connect SYNC (pin 1) to a digital output from the microcontroller to initiate data transfer.

- Connect LDAC (pin 7) to the ground if immediate updating of the DAC output is desired upon data transfer completion.

Design Considerations of the AD5620CRMZ-2:

- Power Supply Decoupling: Place a 0.1μF ceramic capacitor close to the VDD and GND pins to filter out noise.

- Reference Voltage Stability: Ensure that the reference voltage is stable and has low noise for accurate DAC output.

- Digital Signal Integrity: Use short, direct traces for the digital connections to minimize signal degradation and electromagnetic interference.

- Output Filtering: Add a low-pass filter at the VOUT pin if the application requires a smooth analog output signal.

By carefully designing the circuit around the AD5620CRMZ-2, a portable battery-powered instrument can achieve precise and reliable analog output control, suitable for various sensor and actuator applications.
