Analog Devices Inc. AD5555CRUZ

Part No.:: AD5555CRUZ

Manufacturer:: Analog Devices Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD5555CRUZ.pdf

Description:: IC DAC 14BIT A-OUT 16TSSOP

In Stock:: 3993

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5555CRUZ Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
NumberofBits:
14
NumberofD/AConverters:
2
SettlingTime:
500ns (Typ)
OutputType:
Current - Unbuffered
DifferentialOutput:
No
DataInterface:
SPI
ReferenceType:
External
Voltage-SupplyAnalog:
5V
Voltage-SupplyDigital:
5V
INL/DNL(LSB):
±1 (Max), ±1 (Max)
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 85°C

AD5555CRUZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5555CRUZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5555CRUZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5555CRUZ information

Views：

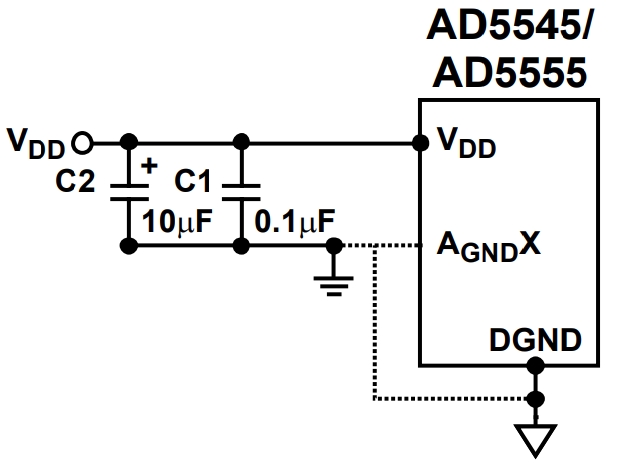

AD5555CRUZ Typical application Circuitry

AD5555CRUZ

The AD5555CRUZ is a dual-channel, 14-bit digital-to-analog converter (DAC) that stands out for its precision and low power consumption. This chip is designed to convert digital input data into corresponding analog voltages across two separate channels, making it suitable for a wide range of applications.

Key Applications:

- Industrial Control: The AD5555CRUZ is ideal for controlling actuators or sensors in automation systems.

- Data Acquisition Systems: It can convert digital data into analog signals for recording or analysis in scientific equipment.

- Telecommunications: Used in communication systems for signal modulation and processing.

Parameter Highlights:

- Resolution: Dual 14-bit DACs

- Output Voltage Range: Typically 0 V to V_REF, determined by the reference voltage.

- Interface: Serial interface compatible with SPI and QSPI protocols.

- Supply Voltage: Usually operates at 5 V.

Circuit Design Example - Dual-Channel Control System:

1. Power Supply Connection:

- VDD (Pin 24) of the AD5555CRUZ: Connect to a +5 V power supply.

- AGND (Pin 12) and DGND (Pin 13): Connect to the system ground for stability.

2. Reference Voltage Setup:

- REFAB (Pin 22) of the AD5555CRUZ: Connect to a stable reference voltage source to set the output range for the DAC channels.

3. Serial Interface Configuration:

- SYNC (Pin 1) of the AD5555CRUZ: Connect to a digital control line to initiate communication.

- SCLK (Pin 2): Connect to a serial clock line for data synchronization.

- SDIN (Pin 3): Connect to a serial data input line to transmit digital data to the DAC.

4. Analog Outputs:

- VOUTA (Pin 16) and VOUTB (Pin 17) of the AD5555CRUZ: Connect each output to the corresponding input of the next stage in your control system.

Design Considerations:

- Stable Power Source: Essential for maintaining the accuracy of the AD5555CRUZ DACs.

- High-Quality Reference Voltage: Crucial for the precision of the DAC outputs.

- Digital Signal Integrity: To avoid conversion mistakes, make sure the digital signals (SYNC, SCLK, and SDIN) are noise-free.

- Output Filtering: May be required to smooth the DAC outputs, especially in sensitive analog applications.

By adhering to these guidelines and properly connecting the pins as described, the AD5555CRUZ can be effectively integrated into a dual-channel control system, offering high precision and flexibility for various industrial, scientific, or telecommunication applications.
