Analog Devices Inc. AD5554BRSZ

Part No.:: AD5554BRSZ

Manufacturer:: Analog Devices Inc.

Package:: 28-SSOP (0.209, 5.30mm Width)

Datasheet:

Description:: IC DAC 14BIT A-OUT 28SSOP

In Stock:: 2111

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5554BRSZ Specifications

Package/Case:
28-SSOP (0.209, 5.30mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofBits:
14
NumberofD/AConverters:
4
SettlingTime:
900ns
OutputType:
Current - Unbuffered
DifferentialOutput:
No
DataInterface:
SPI
ReferenceType:
External
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±0.5 (Max), ±1 (Max)
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 125°C

AD5554BRSZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5554BRSZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5554BRSZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5554BRSZ information

Views：

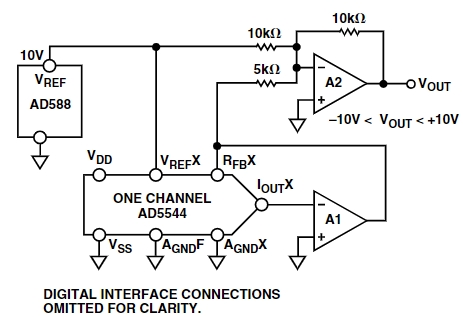

AD5554BRSZ Typical application Circuitry

AD5554BRSZ

The AD5554BRSZ is a quad-channel, 16-bit digital-to-analog converter (DAC) renowned for its precision and versatility. This chip is adept at converting digital input data into corresponding analog voltages across four distinct channels, making it a valuable asset in a multitude of applications.

Where the AD5554BRSZ Excels:

- Automated Test Equipment (ATE): The AD5554BRSZ shines in generating precise analog signals for testing electronic components.

- Process Control: In industrial environments, it controls multiple processes with exact analog signals.

- Multichannel Audio Systems: It's a star performer in delivering high-fidelity audio signals.

Key Characteristics of the AD5554BRSZ:

- Quad 16-bit DACs: Four channels for simultaneous signal conversion.

- Output Voltage Range: Typically 0 V to V_REF, set by the reference voltage.

- Serial Interface: Compatible with SPI for seamless data exchange.

- Supply Voltage: Generally operates at 5 V.

Designing a Circuit with the AD5554BRSZ - A Process Control System:

1. Power Up:

- VDD (Pin 24) of the AD5554BRSZ: Connect to a +5 V supply for power.

- Grounding (AGND, Pin 12; DGND, Pin 13): Establish a firm ground connection for stability.

2. Set Reference Voltage:

- REFAB (Pin 22) and REFCD (Pin 23) of the AD5554BRSZ: Connect to stable reference sources to define the output range for the DAC channels.

3. Configure Serial Interface:

- SYNC (Pin 1) of the AD5554BRSZ: Link to a digital control line to initiate communication.

- SCLK (Pin 2): Connect to a serial clock line to synchronize data transfer.

- SDIN (Pin 3): Connect to a serial data input line to feed digital data to the DAC.

4. Access Analog Outputs:

- VOUTA-D (Pins 16-19) of the AD5554BRSZ: Route each output to the corresponding input of the next stage in your control system.

Guiding Principles for the AD5554BRSZ Implementation:

- Consistent Power Source: Essential for maintaining the accuracy of the DACs.

- Precision Reference Voltage: Key for ensuring the exactitude of the DAC outputs.

- Integrity of Digital Signals: Keep digital signals (SYNC, SCLK, SDIN) clear of noise to prevent conversion errors.

- Consideration for Output Filtering: Smoothing the DAC outputs may be necessary, especially in sensitive analog applications.

By adhering to these principles and correctly arranging the pin connections as detailed, the AD5554BRSZ can be seamlessly integrated into a process control system, offering high precision and flexibility for a variety of industrial, audio, or testing applications.
