Analog Devices Inc. AD5547BRUZ

Part No.:: AD5547BRUZ

Manufacturer:: Analog Devices Inc.

Package:: 38-TFSOP (0.173, 4.40mm Width)

Datasheet:: AD5547BRUZ.pdf

Description:: IC DAC 16BIT A-OUT 38TSSOP

In Stock:: 3418

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5547BRUZ Specifications

Package/Case:
38-TFSOP (0.173, 4.40mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
2
SettlingTime:
500ns (Typ)
OutputType:
Current - Unbuffered
DifferentialOutput:
No
DataInterface:
Parallel
ReferenceType:
External
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±2 (Max), ±1 (Max)
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 125°C

AD5547BRUZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5547BRUZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5547BRUZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5547BRUZ information

Views：

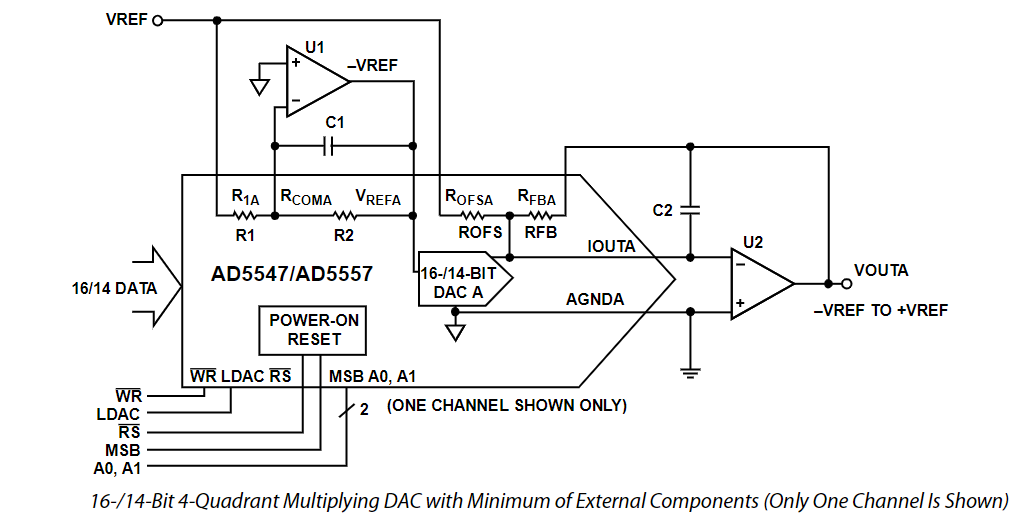

AD5547BRUZ Typical application Circuitry Schematics

The AD5547BRUZ, manufactured by Analog Devices, is a dual 16-bit digital-to-analog converter (DAC) that delivers current output.Here is a basic application circuit description for the AD5547BRUZ. Please consult the datasheet provided by Analog Devices for a detailed understanding of all pins and appropriate connections for your specific application.

1. Power Supply: The AD5547BRUZ operates from a +5V supply. Connect DVCC to +5V. Using a decoupling capacitor of approximately 0.1 µF between DVCC and DGND is suggested to ensure stable operation.
2. Digital Inputs: The AD5547BRUZ has parallel digital inputs D0-D15 for each DAC (DAC A and DAC B). Connect these to your digital interface, such as a microcontroller or FPGA. The LDAC_A and LDAC_B pins can be used to update the DACs one at a time or all at once.
3. Reference Voltage Inputs: The AD5547BRUZ has reference inputs, VREF A and VREF B. Connect these to a stable and precise voltage reference.
4. DAC Outputs: The DAC provides two current outputs, IOUTA and IOUTB. These outputs usually need to be converted to a voltage using an operational amplifier (op-amp) in a transimpedance amplifier configuration.
5. Control Inputs: There are two control inputs, CLR_A and CLR_B (Clear). Activating these pins clears the corresponding input and DAC registers, resetting the DAC outputs to zero scale.
This is a simplified description of circuit connection. Depending on your specific application needs, you might need additional components or different configurations. Always refer to the device's datasheet and design guidelines to ensure your circuit will function as intended.
