Name: AD5543BRZ
Brand: Analog Devices Inc.
SKU: AD5543BRZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD5543BRZ

Part No.:: AD5543BRZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC DAC 16BIT A-OUT 8SOIC

In Stock:: 3190

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5543BRZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
1
SettlingTime:
500ns (Typ)
OutputType:
Current - Unbuffered
DifferentialOutput:
No
DataInterface:
SPI
ReferenceType:
External
Voltage-SupplyAnalog:
5V
Voltage-SupplyDigital:
5V
INL/DNL(LSB):
±2 (Max), ±1 (Max)
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 85°C

AD5543BRZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5543BRZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5543BRZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5543BRZ information

Views：

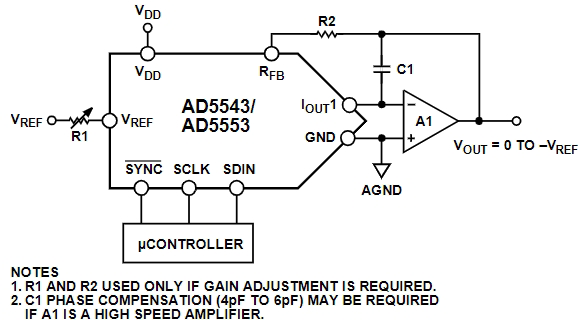

AD5543BRZ Typical application Circuitry

AD5543BRZ

The AD5543BRZ is a precision 16-bit digital-to-analog converter (DAC) designed for applications where high accuracy and low power consumption are critical. It is capable of converting digital values into corresponding analog voltages with high precision.

Application Scenarios:

1. Precision Instrumentation: Ideal for use in laboratory equipment that requires exact voltage outputs.

2. Industrial Automation: Suitable for controlling actuators or valves with precise analog signals.

3. Data Acquisition Systems: Used to convert digital data into analog signals for further processing or analysis.

4. Medical Devices: Can be used in medical equipment that requires precise analog signal generation.

Parameter Characteristics:

- Resolution: 16 bits

- Settling Time: Typically 10 μs

- Output Voltage Range: 0 V to V_REF (Reference Voltage)

- Supply Voltage: 5 V ± 10%

- Power Consumption: Typically 140 μA at 5 V

- Interface: Serial (SPI, QSPI, MICROWIRE)

Circuit Design Example - Precision Voltage Source:

1. Power Supply Connection:

- VDD (Pin 8): Connect to a +5 V regulated power supply.

- GND (Pin 4): Connect to the system ground.

2. Reference Voltage Input:

- VREF (Pin 6): Connect to a stable reference voltage source. The AD5543BRZ DAC's output range is determined by V_REF.

3. Serial Interface Configuration:

- SYNC (Pin 1): Connect to a digital control line. Pull low to start the data transfer process.

- SCLK (Pin 2): Connect to a serial clock line. Data is clocked into the DAC on the rising edge of SCLK.

- SDIN (Pin 3): Connect to a serial data input line. Transmit the 16-bit digital data for conversion.

4. Analog Output:

- VOUT (Pin 5): The AD5543BRZ analog output of the DAC. Connect to the input of the next stage or load.

Design Considerations:

- Stable Power Supply: Use a clean, regulated power source to maintain the accuracy of the DAC.

- High-Quality Reference Voltage: The AD5543BRZ precision of the DAC's output depends on the stability and accuracy of the reference voltage.

- Digital Signal Integrity: Ensure that the digital signals (SYNC, SCLK, SDIN) are free from noise to prevent conversion errors.

- Output Filtering: Depending on the application, an output filter (such as a low-pass filter) may be necessary to smooth the DAC's output signal.

By following these design guidelines and properly connecting the pins as described, the AD5543BRZ can be effectively integrated into a precision voltage source, providing accurate and stable analog output from digital input data.
