Analog Devices Inc. AD5541JRZ

Part No.:: AD5541JRZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: AD5541JRZ.pdf

Description:: IC DAC 16BIT V-OUT 8SOIC

In Stock:: 3046

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5541JRZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
1
SettlingTime:
1µs (Typ)
OutputType:
Voltage - Unbuffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±0.5, ±0.5
Architecture:
R-2R
OperatingTemperature:
0°C ~ 70°C

AD5541JRZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5541JRZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5541JRZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5541JRZ information

Views：

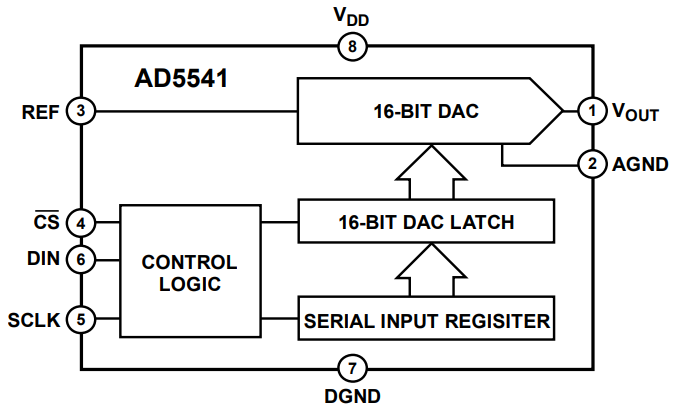

AD5541JRZ Typical application Circuitry

AD5541JRZ

An analog devices high-precision 16-bit digital-to-analog converter (DAC) with voltage output and serial input is the AD5541JRZ. It is part of Analog Devices' comprehensive range of DACs, designed for applications requiring high accuracy and low noise in both industrial and consumer products. The AD5541JRZ is distinguished by its compact size, high performance, and ease of use, making it well-suited for applications such as process control systems, digital calibration, and portable instrumentation. With its 16-bit resolution, the AD5541JRZ offers fine granularity in output voltage, allowing for precise control over analog signals generated from digital values.

1. Power Supply (VDD Pin): The AD5541JRZ operates with a single power supply ranging from 2.7 volts to 5.5 volts, which caters to various application requirements and simplifies power management. The VDD pin is where the positive supply voltage is connected, and this flexibility in supply voltage enables the AD5541JRZ to be easily integrated into a wide array of system designs without the need for complex power supply arrangements.

2. Digital Input Pins (SDIN, SCLK, SYNC): The AD5541JRZ features several digital input pins that facilitate serial communication with microcontrollers or digital signal processors. The digital data that needs to be transformed into an analog voltage is input using SDIN (Serial Data Input). SCLK (Serial Clock Input) provides the clock signal that controls the timing of data transmission. SYNC (Synchronous Input) is used to initiate the data transfer process. Together, these pins support the serial interface protocol, enabling efficient data exchange and precise control over the DAC operation.

3. Voltage Output (VOUT Pin): The VOUT pin provides the analog voltage output of the DAC. The voltage level at this pin is a direct representation of the digital value input through the SDIN pin, scaled according to the DAC's resolution and reference voltage. The AD5541JRZ's output can drive capacitive loads and is designed to offer high stability and low noise, ensuring accurate analog signal generation for critical applications.

4. Reference Voltage (REF Pin): The REF pin is used to connect an external reference voltage, which defines the full-scale output range of the DAC. The choice of reference voltage allows designers to customize the output range to suit specific application needs, providing additional flexibility. The AD5541JRZ's performance, including its linearity and accuracy, is directly influenced by the stability and precision of the reference voltage applied to this pin.

5. Ground (GND Pin): The GND pin is the ground reference for the AD5541JRZ. All voltages are measured with respect to this ground reference, making it a critical connection for ensuring the accuracy and stability of the DAC's output. A solid and low-impedance ground connection is essential for minimizing noise and achieving the high-performance characteristics that the AD5541JRZ is capable of.

The AD5541JRZ exemplifies Analog Devices' commitment to providing high-quality data conversion solutions that combine performance, precision, and ease of integration. Its wide operating voltage range, coupled with a straightforward serial interface and flexible reference input, makes it a versatile choice for a broad spectrum of precise analog output applications. Whether used in tightly controlled industrial environments or in portable devices where power efficiency is crucial, the AD5541JRZ delivers consistent, reliable performance tailored to meet the rigorous demands of modern electronic systems.
