Name: AD5541ARZ
Brand: Analog Devices Inc.
SKU: AD5541ARZ
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD5541ARZ

Part No.:: AD5541ARZ

Manufacturer:: Analog Devices Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: AD5541ARZ.pdf

Description:: IC DAC 16BIT V-OUT 8SOIC

In Stock:: 3489

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5541ARZ Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
1
SettlingTime:
1µs (Typ)
OutputType:
Voltage - Unbuffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±0.5, ±0.5
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 125°C

AD5541ARZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5541ARZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5541ARZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5541ARZ information

Views：

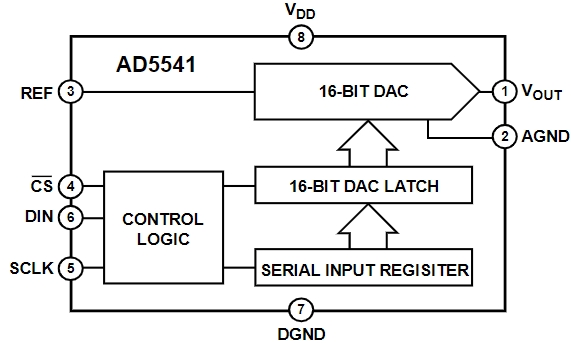

AD5541ARZ Typical application Circuitry

AD5541ARZ

The AD5541ARZ is a 16-bit digital-to-analog converter (DAC) that offers high precision and low power consumption. It is designed for applications where accurate and stable analog output is required from digital input data.

Application Scenarios:

The AD5541ARZ is suitable for:

1. Precision Instrumentation: For generating precise analog signals in measurement devices.

2. Industrial Control Systems: To control actuators or valves based on digital commands.

3. Data Acquisition Systems: For converting digital signals to analog form for analysis or recording.

4. Medical Equipment: In devices that require precise analog signal generation for diagnostics or treatment.

Parameter Characteristics:

- Resolution: 16 bits

- Settling Time: Typically 10 μs

- Output Voltage Range: 0 V to V_REF (Reference Voltage)

- Supply Voltage: 5 V ± 10%

- Power Consumption: Typically 140 μA at 5 V

- Interface: Serial (SPI, QSPI, MICROWIRE)

Circuit Design Example - Precision Voltage Source:

1. Power Supply Connection:

- VDD (Pin 8): Connect to a +5 V power supply.

- GND (Pin 4): Connect to the ground.

2. Reference Voltage Input:

- VREF (Pin 6): Connect to a precision reference voltage source. The DAC output range will be from 0 V to V_REF.

3. Serial Interface:

- SYNC (Pin 1): Connect to a digital control line. Pull low to start data transfer.

- SCLK (Pin 2): Connect to a serial clock line. Data is clocked on the rising edge of SCLK.

- SDIN (Pin 3): Connect to a serial data input line. Send the 16-bit data for DAC conversion.

4. Analog Output:

- VOUT (Pin 5): The AD5541ARZ analog output of the DAC. Connect to the input of the next stage or load.

Design Considerations:

- Stable Power Supply: Ensure the AD5541ARZ power supply is stable and free from noise to maintain the accuracy of the DAC.

- High-Quality Reference Voltage: The precision of the DAC output depends on the stability and accuracy of the reference voltage.

- Digital Signal Integrity: To avoid mistakes in the DAC output, make sure the digital signals (SYNC, SCLK, and SDIN) are clear and noise-free.

- Output Filtering: To smooth out the DAC output, an output filter (such as a low-pass filter) can be needed, depending on the application.

By following these design considerations and properly connecting the pins as described, the AD5541ARZ can be effectively used as a precision voltage source in various applications that require accurate analog output from digital input data.
