Analog Devices Inc. AD5541AARMZ-REEL7

Part No.:: AD5541AARMZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:

Description:: IC DAC 16BIT V-OUT 10MSOP

In Stock:: 2543

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5541AARMZ-REEL7 Specifications

Package/Case:
10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
1
SettlingTime:
1µs
OutputType:
Voltage - Unbuffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±0.5, ±0.5
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 125°C

AD5541AARMZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5541AARMZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5541AARMZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5541AARMZ-REEL7 information

Views：

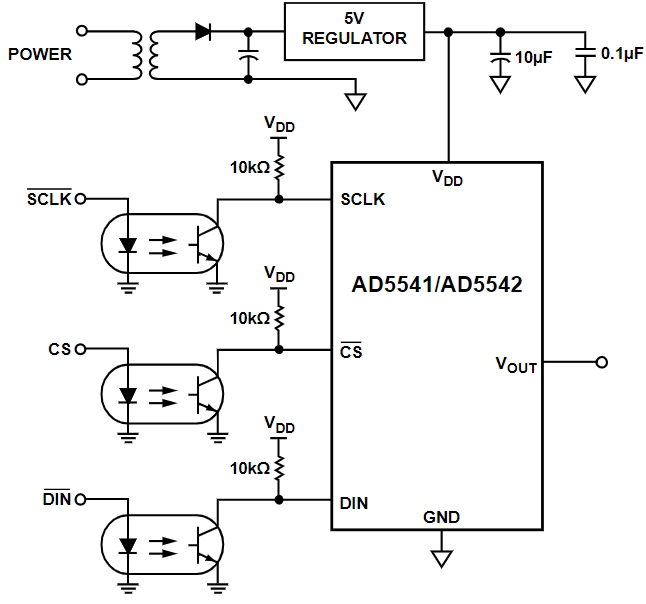

AD5541AARMZ-REEL7 Typical application Circuitry

AD5541AARMZ-REEL7

The AD5541AARMZ-REEL7 is a precision 16-bit digital-to-analog converter (DAC) designed for applications requiring high accuracy and low power consumption. It operates from a single 5 V power supply and features a 3-wire serial interface compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards.

Application Scenarios:

The AD5541AARMZ-REEL7 is commonly used in:

1. Automated Test Equipment (ATE): For generating precise analog signals to test electronic devices.

2. Process Control: In industrial systems to control actuators or valves based on digital input.

3. Data Acquisition Systems: For converting digital data into analog signals for further analysis or display.

4. Portable Battery-Powered Instruments: Due to its low power consumption.

Parameter Characteristics:

- Resolution: 16 bits

- Settling Time: 10 μs to 0.003% of FSR

- Output Voltage Range: 0 V to V_REF (Reference Voltage)

- Power Supply: 5 V ±10%

- Power Consumption: 140 μA at 5 V

- Interface: 3-wire serial

Circuit Design Example - DAC in a Process Control System:

1. Power Supply Connection:

- VDD (Pin 8): Connect to a +5 V power supply.

- GND (Pin 4): Connect to the ground.

2. Reference Voltage Input:

- VREF (Pin 6): Connect to a stable reference voltage source. The AD5541AARMZ-REEL7 output voltage range will be from 0 V to V_REF.

3. Digital Input Interface:

- SYNC (Pin 1): Connect to a digital control line. Pull low to initiate data transfer.

- SCLK (Pin 2): Connect to a serial clock line. Data is clocked into the DAC on the rising edge of SCLK.

- SDIN (Pin 3): Connect to a serial data input line. Send the 16-bit data to be converted to analog.

4. Analog Output:

- VOUT (Pin 5): The AD5541AARMZ-REEL7 analog output of the DAC. Connect to the input of the next stage in the process control system.

Design Considerations:

- Stable Power Supply: Ensure the power supply is stable and free from noise to maintain DAC accuracy.

- Reference Voltage: Choose a high-quality, stable reference voltage source to define the output voltage range accurately.

- Digital Isolation: If the DAC is used in a noisy environment, consider isolating the digital input lines to prevent noise from affecting the digital-to-analog conversion.

- Output Filtering: Depending on the application, an output filter (e.g., a low-pass filter) might be necessary to remove high-frequency components from the DAC output.

By adhering to these design considerations and properly connecting the pins as outlined, the AD5541AARMZ-REEL7 can be effectively integrated into a process control system or other applications requiring high-precision analog output.
