Analog Devices Inc. AD5541AARMZ

Part No.:: AD5541AARMZ

Manufacturer:: Analog Devices Inc.

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:

Description:: IC DAC 16BIT V-OUT 10MSOP

In Stock:: 3790

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5541AARMZ Specifications

Package/Case:
10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
1
SettlingTime:
1µs
OutputType:
Voltage - Unbuffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±0.5, ±0.5
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 125°C

AD5541AARMZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5541AARMZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5541AARMZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5541AARMZ information

Views：

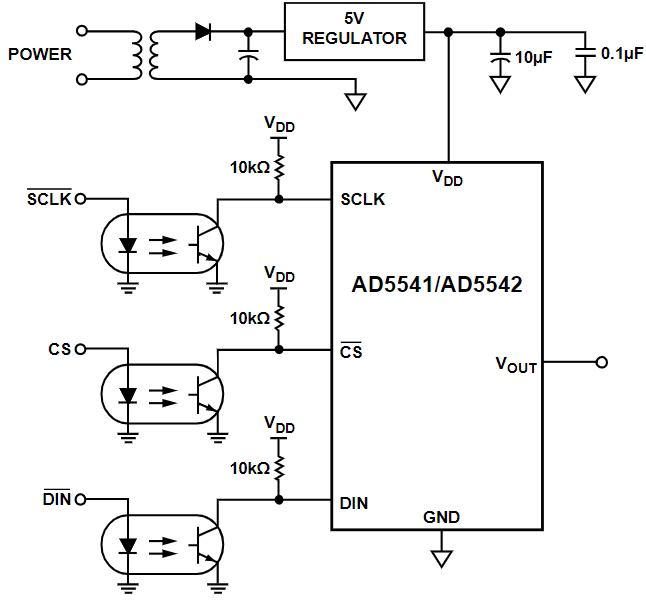

AD5541AARMZ Typical application Circuitry

AD5541AARMZ

The AD5541AARMZ is a precision, 16-bit digital-to-analog converter (DAC) that is highly regarded for its accuracy and low power consumption. It is ideally suited for applications that demand precise analog output, such as in medical equipment, laboratory instrumentation, and industrial control systems.

Application Scenario:

One application for the AD5541AARMZ is in a laboratory instrument, where it is used to generate precise reference voltages for calibration purposes.

Circuit Design Example:

1. Power Connections: Supply the VDD pin (Pin 8) of the AD5541AARMZ with a +5V power source and connect the GND pin (Pin 4) to the system ground.

2. Digital Interface: Establish SPI communication between the AD5541AARMZ and a microcontroller using the SDIN (Pin 5), SCLK (Pin 6), and SYNC (Pin 7) pins. This configuration enables the microcontroller to transmit digital data to the DAC.

3. Analog Output: Route the VOUT pin (Pin 2) to the input of the device or system that requires the precise reference voltage.

4. Reference Voltage Input: Apply a stable reference voltage to the VREF pin (Pin 3) to set the maximum output range of the DAC.

Design Considerations:

- SPI Protocol: Ensure the correct setup of the SPI protocol parameters for reliable communication between the microcontroller and the AD5541AARMZ.

- Stable Power Supply: Employ a regulated power supply for VDD and maintain a solid ground connection to prevent fluctuations that could impact the DAC's performance.

- Short Output Path: Design the PCB layout to keep the path from the VOUT pin to the target device as short as possible, reducing potential signal interference.

- Reference Voltage Precision: Choose a reference voltage source with high precision and stability, as this directly influences the output accuracy of the AD5541AARMZ.

By following these guidelines, the AD5541AARMZ can be effectively implemented in a laboratory instrument to provide precise and stable reference voltages for calibration purposes.
