Analog Devices Inc. AD5512AACPZ-REEL7

Part No.:: AD5512AACPZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 16-WFQFN Exposed Pad, CSP

Datasheet:

Description:: IC DAC 12BIT V-OUT 16LFCSP

In Stock:: 3713

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5512AACPZ-REEL7 Specifications

Package/Case:
16-WFQFN Exposed Pad, CSP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
1
SettlingTime:
1µs (Typ)
OutputType:
Voltage - Unbuffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±0.5, ±0.5
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 125°C

AD5512AACPZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5512AACPZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5512AACPZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5512AACPZ-REEL7 information

Views：

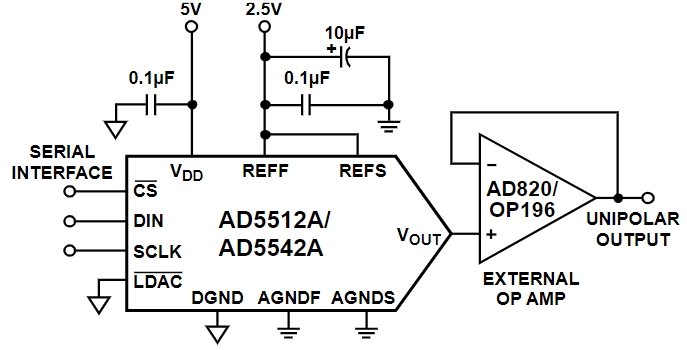

AD5512AACPZ-REEL7 Typical application Circuitry

AD5512AACPZ-REEL7

The AD5512AACPZ-REEL7 is a 12-bit digital-to-analog converter (DAC) designed for precision applications where a stable and accurate analog output is required. Medical gadgets, precision instrumentation, and industrial control systems all frequently employ it.

Applications

This DAC is particularly suited for:

- Industrial Control Systems: For precise control of actuators or valves.

- Precision Instrumentation: As a part of measurement devices requiring accurate signal generation.

- Medical Devices: In equipment needing precise voltage control for diagnostics or treatment.

Key Specifications

- Resolution: 12-bit, providing fine granularity in the output signal.

- Output Range: Configurable, typically from 0 V to the reference voltage (VREF).

- Supply Voltage: 2.7 V to 5.5 V, accommodating a variety of power environments.

- Interface: Serial (SPI), simplifying connectivity with microcontrollers or processors.

Circuit Design Example: Precision Voltage Source for Instrumentation

To design a precision voltage source using the AD5512AACPZ-REEL7, follow these steps:

1. Power Supply Connections

- Connect the AD5512AACPZ-REEL7 VDD pin (pin 16) to a +5 V power supply.

- Connect the AGND pin (pin 8) and DGND pin (pin 15) to the ground.

2. Reference Voltage Setup

- Connect a stable 5 V reference voltage to the VREF pin (pin 9) to set the maximum output voltage.

3. Digital Interface Configuration

- Connect the serial clock (SCLK, pin 11) to the SCK pin of the microcontroller.

- Connect the serial data input (SDIN, pin 14) to the MOSI pin of the microcontroller.

- Connect the chip select (SYNC, pin 13) to a digital output pin on the microcontroller for enabling communication.

4. Analog Output Preparation

- Connect the voltage output (VOUT, pin 10) to the input of the device requiring the precision voltage.

5. System Setup

- Program the microcontroller to communicate with the AD5512AACPZ-REEL7 using the SPI protocol.

- Send digital data to the DAC to generate the required analog output for the instrumentation.

Design Considerations

- Stability of Reference Voltage: Ensure the reference voltage is stable and low-noise to maintain the accuracy of the output.

- Regulated Power Supply: Use a regulated power supply to minimize fluctuations that could affect the DAC's performance.

- Short Trace Lengths: Keep the connections between the DAC, microcontroller, and reference voltage short to reduce noise and signal degradation.

- Thermal Management: If the circuit is used in a high-temperature environment, take heat dissipation into account.

By following these guidelines, the AD5512AACPZ-REEL7 can be effectively utilized in a circuit for precision voltage sourcing in instrumentation, ensuring accurate and stable analog output.
