What is the Additional Feature ?

Name: AD5453YRMZ-REEL
Brand: Analog Devices Inc.
SKU: AD5453YRMZ-REEL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD5453YRMZ-REEL

Part No.:: AD5453YRMZ-REEL

Manufacturer:: Analog Devices Inc.

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: AD5453YRMZ-REEL.pdf

Description:: IC DAC 14BIT A-OUT 8MSOP

In Stock:: 3413

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5453YRMZ-REEL Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Obsolete
NumberofBits:
14
NumberofD/AConverters:
1
SettlingTime:
110ns
OutputType:
Current - Unbuffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External
Voltage-SupplyAnalog:
2.5V ~ 5.5V
Voltage-SupplyDigital:
2.5V ~ 5.5V
INL/DNL(LSB):
±2 (Max), -1/+2 (Max)
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 125°C

AD5453YRMZ-REEL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5453YRMZ-REEL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5453YRMZ-REEL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5453YRMZ-REEL information

Views：

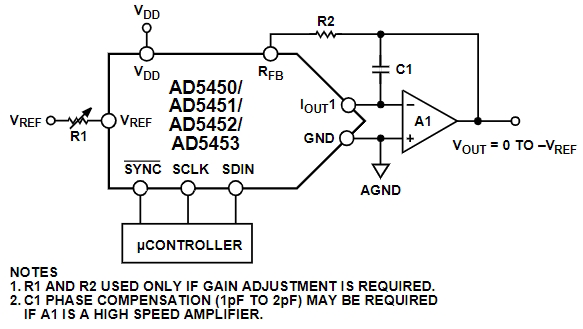

AD5453YRMZ-REEL Typical application Circuitry

AD5453YRMZ-REEL

The AD5453YRMZ-REEL is a component designed for transforming digital signals into analog outputs with a 14-bit resolution. It's primarily utilized in environments that demand high accuracy, such as laboratory apparatus, automation in industrial settings, and systems for acquiring data.

Utilization Scenarios

Notable applications include:

1. Precision Measurement Devices: For generating exact voltage levels needed for calibrating measurement tools.

2. Automated Control Systems: To modulate actuators or motors with precision in industrial setups.

3. Data Conversion: Transforming digital readings from sensors into analog signals for further processing or storage.

Attributes of the Component

- Resolution: 14 bits, ensuring fine granularity in output

- Channel Count: Single, focusing on one specific task

- Voltage Range for Operation: From 2.7V to 5.5V, allowing flexibility in system design

- Range of Output Voltage: From 0 to the reference voltage (VREF), adjustable based on application needs

- Interface for Communication: Serial (SPI), facilitating easy integration with controllers

Example Circuit: Precision Control in Automation

To control a precise actuator in an automation system, follow these detailed instructions:

1. Connect Power

- Link the AD5453YRMZ-REEL VDD pin (pin 8) to a reliable +3.3V supply.

- Ground the AD5453YRMZ-REEL GND pin (pin 4) for a common reference point.

2. Configure Reference Voltage

- Apply a 3.3V reference to the VREF pin (pin 6), setting the maximum output.

3. Set Up Digital Communication

- Join the serial data input (SDI, pin 3) to the microcontroller's MOSI pin.

- Tie the serial clock input (SCLK, pin 1) to the controller's SCK pin.

- Attach the chip select (CS, pin 2) to an output pin on the microcontroller for activating the DAC.

4. Route Analog Output

- Direct the output pin (VOUT, pin 5) to the actuator's control input.

5. Configure the System

- Program the microcontroller for SPI communication with the AD5453YRMZ-REEL.

- Transmit digital data to the DAC to generate the precise analog signal required for actuator control.

Points to Ponder in Design

- Consistent Power Source: Verify that the power supply is within the specified limits and stable.

- Accuracy of Reference Voltage: The precision of the DAC's output is heavily reliant on the reference voltage's accuracy.

- Integrity of Digital Signals: Minimize disruptions in the SPI communication lines to ensure error-free data transfer.

- Output Load Considerations: Keep the load on the DAC's output high-impedance to avoid signal degradation and maintain output accuracy.

Employing these strategies allows for the effective use of the AD5453YRMZ-REEL DAC in automated systems requiring precise actuator control.
