Analog Devices Inc. AD5338BRMZ

Part No.:: AD5338BRMZ

Manufacturer:: Analog Devices Inc.

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:

Description:: IC DAC 10BIT V-OUT 8MSOP

In Stock:: 257

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5338BRMZ Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
NumberofBits:
10
NumberofD/AConverters:
2
SettlingTime:
9µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
I²C
ReferenceType:
External
Voltage-SupplyAnalog:
2.5V ~ 5.5V
Voltage-SupplyDigital:
2.5V ~ 5.5V
INL/DNL(LSB):
±0.5, ±0.05
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

AD5338BRMZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5338BRMZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5338BRMZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5338BRMZ information

Views：

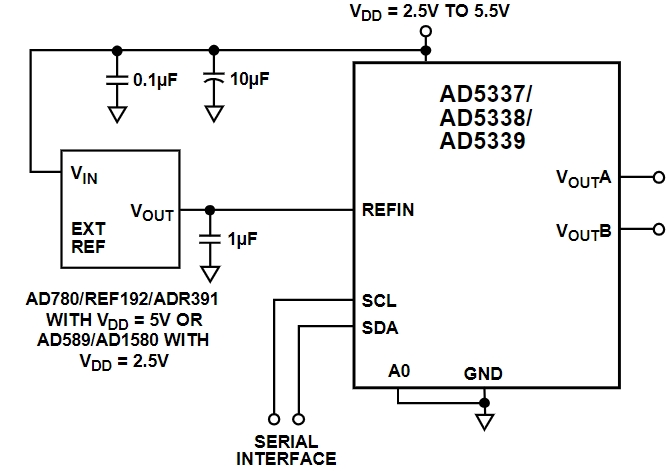

AD5338BRMZ Typical application Circuitry

AD5338BRMZ

The AD5338BRMZ is a dual 10-bit digital-to-analog converter (DAC) chip designed for precision analog output applications. It is well known for its low power consumption and strong output driving capacity. The chip is suitable for various applications, including process control, data acquisition systems, and digital calibration.

Key Applications:

1. Process Control Systems: The AD5338BRMZ can be used to generate precise control voltages for actuators and valves.

2. Data Acquisition Systems: It can provide analog output for signal simulation and testing.

3. Digital Calibration: The chip is ideal for calibrating analog sensors and instrumentation.

Parameter Characteristics:

- Resolution: 10 bits

- Dual-channel output

- Low power consumption

- High output drive capability

- Wide supply voltage range

- Serial interface for communication

Circuit Design Example: Analog Output for Data Acquisition System

1. Power Supply Connections: Pin 8 (GND) should be connected to ground, and Pin 16 (VDD) to a +5V source. To ensure accurate DAC performance, make sure the power supply is trustworthy and well-maintained.

2. Reference Voltage: To adjust the AD5338BRMZ output voltage range, connect an external reference voltage to REF (Pin 15). Use a 5V reference for an output range of 0 to 5V.

3. Serial Interface: Attach pins 11 and 14 to the microcontroller or FPGA's chip select, serial data input (SDIN), and serial clock (SCLK). Data is sent to the DAC via these pins.

4. Output Configuration: Attach the AD5338BRMZ analog input of the data acquisition system to the output of DAC A (Pin 6) and DAC B (Pin 5). Assign the appropriate voltage levels to the DAC outputs.

5. Grounding: Ensure proper grounding for the analog and digital sections to minimize noise interference.

Design Considerations:

- Power Supply Decoupling: To minimize noise and guarantee steady performance, use decoupling capacitors in close proximity to the power supply pins.

- Reference Voltage Stability: Use a precise and stable reference voltage for accurate DAC output.

- Digital Isolation: If the digital control signals are noisy, consider using digital isolators to protect the DAC from noise interference.

- Thermal Management: Ensure proper heat dissipation if the chip is operated at high output currents or in a high-temperature environment.

In this circuit design, the AD5338BRMZ is configured to provide precise analog output for a data acquisition system, with attention to power supply stability, reference voltage accuracy, and noise isolation for reliable performance.
