What is the Additional Feature ?

Name: AD5338ARMZ-1REEL7
Brand: Analog Devices Inc.
SKU: AD5338ARMZ-1REEL7
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Analog Devices Inc. AD5338ARMZ-1REEL7

Part No.:: AD5338ARMZ-1REEL7

Manufacturer:: Analog Devices Inc.

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:

Description:: IC DAC 10BIT V-OUT 8MSOP

In Stock:: 3474

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5338ARMZ-1REEL7 Specifications

Package/Case:
8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Bulk
Series:
-
ProductStatus:
Active
NumberofBits:
10
NumberofD/AConverters:
2
SettlingTime:
9µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
I²C
ReferenceType:
External
Voltage-SupplyAnalog:
2.5V ~ 5.5V
Voltage-SupplyDigital:
2.5V ~ 5.5V
INL/DNL(LSB):
±0.5, ±0.05
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

AD5338ARMZ-1REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5338ARMZ-1REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5338ARMZ-1REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5338ARMZ-1REEL7 information

Views：

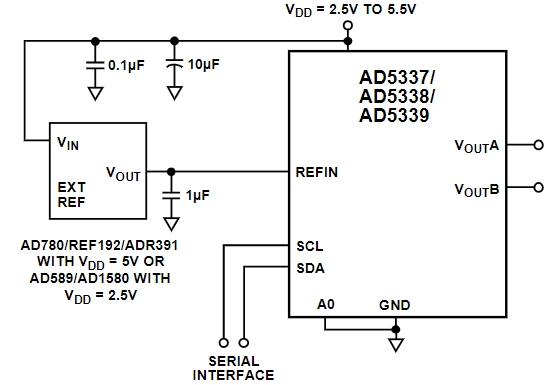

AD5338ARMZ-1REEL7 Typical application Circuitry

AD5338ARMZ-1REEL7

The AD5338ARMZ-1REEL7 is a dual-channel, 10-bit digital-to-analog converter (DAC) with an I²C-compatible serial interface. It is intended for uses where battery-powered portable gadgets and other applications necessitate low power and space usage.

Applications

The AD5338ARMZ-1REEL7 is commonly used in:

- Portable Instrumentation: For generating precise analog signals in compact devices.

- Digital Gain and Offset Adjustment: In measurement systems to calibrate and adjust gain and offset digitally.

- Process Control: In industrial automation for controlling valves, motors, and other actuators based on digital control signals.

Key Features

- Resolution: 10-bit

- Number of Channels: 2

- Interface: I²C-compatible serial interface

- Supply Voltage: 2.5V to 5.5V

Circuit Design Example: Portable Signal Generator

In this application scenario, we'll use the AD5338ARMZ-1REEL7 to create a portable signal generator for calibrating sensors in the field.

Components:

- AD5338ARMZ-1REEL7 DAC

- Operational Amplifier (e.g., OP07)

- Resistors: R1, R2, R3

- Microcontroller (e.g., Arduino) for I²C communication

Circuit Connections:

1. Power Supply: Connect the VDD pin of the AD5338ARMZ-1REEL7 to a +3.3V power supply.

2. Ground: Connect the GND pin of the AD5338ARMZ-1REEL7 to the ground.

3. I²C Interface: Join the AD5338ARMZ-1REEL7's SDA and SCL pins to the microcontroller's matching SDA and SCL pins.

4. DAC Output to Op-Amp: Attach one of the DAC output pins (such as OUTA) to the operational amplifier's non-inverting input.

5. Feedback Network: Attach a resistor (R1) between the operational amplifier's output and its inverted input. Join a second resistor (R2) to the ground by connecting it to the inverting input.

6. Reference Voltage: Connect the VREF pin of the AD5338ARMZ-1REEL7 to a reference voltage source, if required. Otherwise, it can be connected to VDD for a full-scale output range.

Considerations:

- Power Supply Decoupling: Place a decoupling capacitor (e.g., 0.1µF) close to the VDD pin of the AD5338ARMZ-1REEL7 to filter out noise.

- I²C Pull-up Resistors: Ensure that pull-up resistors are connected to the SDA and SCL lines for proper I²C communication.

- Output Filtering: Depending on the application, a low-pass filter may be required at the DAC output to smooth out the analog signal.

- Thermal Management: Consider the thermal aspects of the circuit, especially if it will be used in a sealed enclosure without active cooling.

By programming the microcontroller to send appropriate digital values to the AD5338ARMZ-1REEL7, a portable signal generator can be created, capable of generating precise analog voltages for calibrating sensors or testing other electronic devices in the field.

AD5338ARMZ-1REEL7 FAQ

1. How to order AD5338ARMZ-1REEL7 on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that AD5338ARMZ-1REEL7 is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the AD5338ARMZ-1REEL7. All suppliers must pass our qualification reviews before they can publish their products including AD5338ARMZ-1REEL7 on icwhale.com; we pay more attention to the channels and quality of AD5338ARMZ-1REEL7 products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the AD5338ARMZ-1REEL7 price and inventory displayed accurate?

The price and inventory of AD5338ARMZ-1REEL7 fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of AD5338ARMZ-1REEL7?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the AD5338ARMZ-1REEL7 we delivered, we will accept the replacement or return of the AD5338ARMZ-1REEL7 only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of AD5338ARMZ-1REEL7.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
