Analog Devices Inc. AD5322BRMZ-REEL7

Part No.:: AD5322BRMZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:

Description:: IC DAC 12BIT V-OUT 10MSOP

In Stock:: 2585

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5322BRMZ-REEL7 Specifications

Package/Case:
10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
NumberofBits:
12
NumberofD/AConverters:
2
SettlingTime:
10µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External
Voltage-SupplyAnalog:
2.5V ~ 5.5V
Voltage-SupplyDigital:
2.5V ~ 5.5V
INL/DNL(LSB):
±2, ±0.2
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 105°C

AD5322BRMZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5322BRMZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5322BRMZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5322BRMZ-REEL7 information

Views：

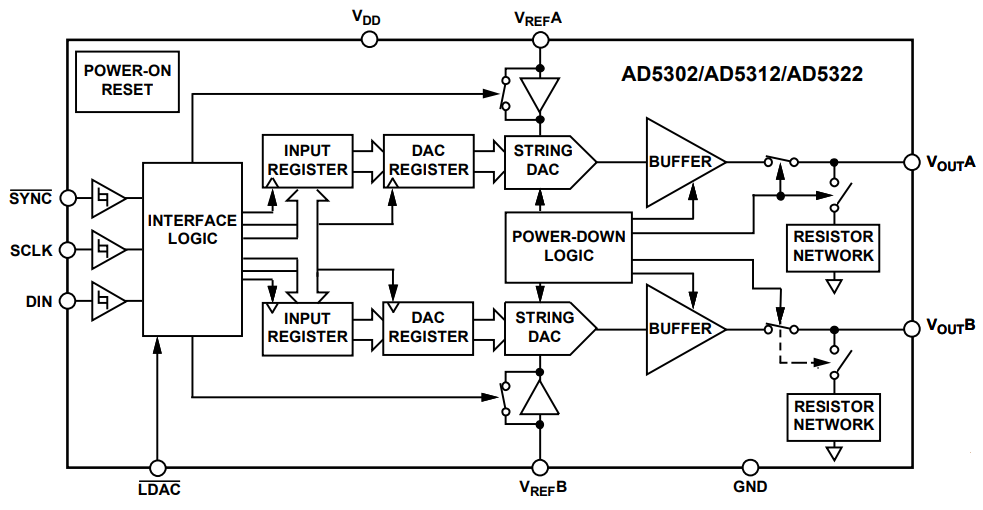

AD5322BRMZ-REEL7 Typical application Circuitry

AD5322BRMZ-REEL7

The AD5322BRMZ-REEL7 is a dual, 12-bit, serial input, voltage output digital-to-analog converter (DAC) from Analog Devices, notable for its precision and integration in a compact MSOP package. It is part of Analog Devices' extensive DAC portfolio designed to meet the stringent requirements of precision analog output applications. The "REEL7" suffix indicates that this component is supplied in a 7-inch reel format, suitable for automated assembly processes, highlighting its readiness for volume production in industrial, communication, and consumer electronics applications.

1. Power Supply Voltage (VDD Pin): The AD5322BRMZ-REEL7 operates with a single power supply that can range from 2.5 volts to 5.5 volts, providing flexibility for integration into both 3.3V and 5V logic systems. This wide supply voltage range enables the device to be used in diverse applications, from battery-powered portable devices to fixed power supply industrial systems.

2. Digital Interface Pins (SDI, SCLK, SYNC, and SDO Pins): The device is equipped with a serial peripheral interface (SPI) that includes SDI (Serial Data Input) for receiving digital data, SCLK (Serial Clock Input) for clocking the data into the device, and SYNC (Synchronous Input) for framing the serial data packets. The SDO (Serial Data Output) pin allows for daisy-chaining of multiple DACs or for diagnostic feedback to the microcontroller, enhancing the device's utility in complex digital systems.

3. Analog Output Pins (VOUTA and VOUTB Pins): The AD5322BRMZ-REEL7 features two analog output pins, VOUTA and VOUTB, each providing an independent analog voltage output corresponding to the 12-bit digital value written to each DAC channel. These outputs enable precise control over external circuits, making the device ideal for applications requiring accurate and simultaneous analog signal generation.

4. Reference Voltage Pin (REF IN/OUT Pin): An external reference voltage applied to the REF IN/OUT pin determines the full-scale output voltage of the DAC channels. This pin offers the flexibility to select a reference voltage best suited to the application's requirements, affecting both the resolution and maximum output voltage of the DAC outputs.

5. Ground Connections (AGND and DGND Pins): To minimize noise and ensure signal integrity, the AD5322BRMZ-REEL7 provides separate analog (AGND) and digital (DGND) ground connections. This separation helps in reducing digital noise coupling into the analog outputs, crucial for maintaining the high-performance characteristics of the DAC outputs.

6. Reset Pin (RESET Pin): The RESET pin allows for hardware resetting of the device, clearing the internal registers and setting the DAC outputs to a known state (typically zero-scale). This functionality is essential for system initialization and can also serve as a safety feature in fault recovery scenarios.

7. Load DAC Register Pin (LDAC Pin): The LDAC pin controls the update of the DAC output registers from the input shift registers. By manipulating the LDAC pin, users can synchronize the update of both DAC channels, enabling coordinated output changes essential in applications requiring precise timing between analog signals.

The AD5322BRMZ-REEL7's combination of dual DAC channels, a flexible power supply range, and a comprehensive digital interface packaged in a compact form factor exemplifies Analog Devices' commitment to delivering high-quality, versatile DAC solutions. Its suitability for a wide range of applications, from precision instrumentation to consumer electronics, is a testament to its design and functionality, offering designers a reliable tool for accurate analog output generation.
