Analog Devices Inc. AD5318BRUZ

Part No.:: AD5318BRUZ

Manufacturer:: Analog Devices Inc.

Package:: 16-TSSOP (0.173, 4.40mm Width)

Datasheet:: AD5318BRUZ.pdf

Description:: IC DAC 10BIT V-OUT 16TSSOP

In Stock:: 3547

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5318BRUZ Specifications

Package/Case:
16-TSSOP (0.173, 4.40mm Width)
Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
NumberofBits:
10
NumberofD/AConverters:
8
SettlingTime:
9µs
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External
Voltage-SupplyAnalog:
2.5V ~ 5.5V
Voltage-SupplyDigital:
2.5V ~ 5.5V
INL/DNL(LSB):
±0.5, ±0.05
Architecture:
String DAC
OperatingTemperature:
-40°C ~ 125°C

AD5318BRUZ this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5318BRUZ price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5318BRUZ to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5318BRUZ information

Views：

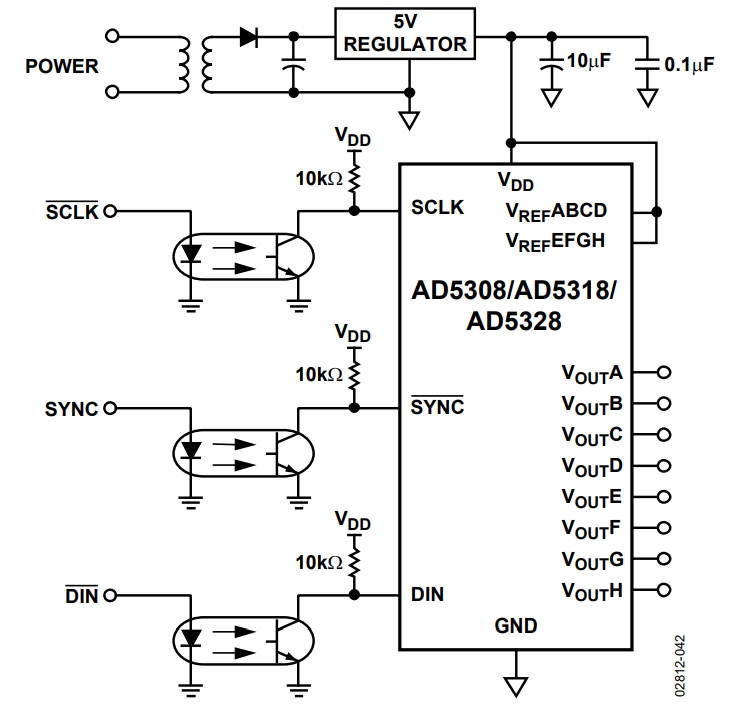

AD5318BRUZ Typical application Circuitry

AD5318BRUZ

The AD5318BRUZ is a versatile, 10-bit digital-to-analog converter (DAC) from Analog Devices, designed to provide eight independent output channels in a compact form factor.

Key Specifications:

1. Resolution: Each of the eight DAC channels offers a 10-bit resolution.

2. Output Range: The output voltage range is programmable, allowing for flexibility in various applications.

3. Digital Interface: Features an SPI-compatible serial interface for digital input.

4. Package: Available in a TSSOP package, making it suitable for space-constrained designs.

Application Example: Industrial Process Control

In an industrial process control system, the AD5318BRUZ can be used to adjust control valves or modulate other actuators across multiple channels. Here's a detailed guide for integrating this DAC into such a system:

1. Power Supply Integration: Connect the VDD pin (Pin 24) of the AD5318BRUZ to a +5V power source, and link the GND pin (Pin 13) to the system ground. This ensures the DAC is powered correctly.

2. Digital Input Configuration: Attach the serial data input (SDI, Pin 23), serial clock (SCLK, Pin 21), and chip select (SYNC, Pin 22) pins to the corresponding outputs of a microcontroller or digital control system. These connections facilitate digital communication with the DAC.

3. DAC Output Connection: Connect each of the eight DAC output pins (DAC A to DAC H, Pins 1 to 8) to the input of a control valve or actuator circuit. The output voltage from each DAC channel will regulate the operation of the respective control valve or actuator.

4. Reference Voltage Setup: Link a stable reference voltage to the REFIN pin (Pin 14) to establish the output voltage range of the DAC.

Circuit Design Considerations:

- Decoupling Capacitors: Implement decoupling capacitors near the VDD pin of the AD5318BRUZ to minimize noise and ensure stable operation.

- Digital Signal Clarity: Make sure that the digital signals supplied to the DAC are free from noise to preserve the accuracy of the output voltage.

- Compatibility with Control Devices: Check that the control valves or actuators connected to the DAC outputs are compatible with the voltage range and current specifications of the DAC.

- Heat Management: Address the thermal aspects of the design, especially if the DAC or control devices produce considerable heat.

By adhering to these guidelines and focusing on signal integrity and component compatibility, the AD5318BRUZ can be effectively employed in an industrial process control system to provide precise and individual control over multiple control valves or actuators.
