Analog Devices Inc. AD5060BRJZ-1500RL7

Part No.:: AD5060BRJZ-1500RL7

Manufacturer:: Analog Devices Inc.

Package:: SOT-23-8

Datasheet:

Description:: IC DAC 16BIT V-OUT SOT23-8

In Stock:: 2608

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD5060BRJZ-1500RL7 Specifications

Package/Case:
SOT-23-8
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
nanoDAC®
ProductStatus:
Active
NumberofBits:
16
NumberofD/AConverters:
1
SettlingTime:
4µs (Typ)
OutputType:
Voltage - Buffered
DifferentialOutput:
No
DataInterface:
SPI, DSP
ReferenceType:
External
Voltage-SupplyAnalog:
2.7V ~ 5.5V
Voltage-SupplyDigital:
2.7V ~ 5.5V
INL/DNL(LSB):
±0.5, ±0.5
Architecture:
R-2R
OperatingTemperature:
-40°C ~ 85°C

AD5060BRJZ-1500RL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD5060BRJZ-1500RL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD5060BRJZ-1500RL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD5060BRJZ-1500RL7 information

Views：

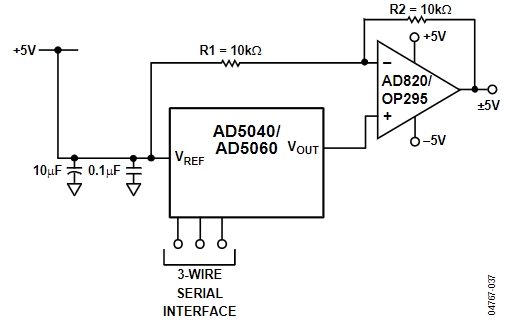

AD5060BRJZ-1500RL7 Typical application Circuitry

AD5060BRJZ-1500RL7

The AD5060BRJZ-1500RL7 is a 16-bit digital-to-analog converter (DAC) designed to provide precise and accurate analog output voltages from digital inputs. This chip is often used in applications that require fine control of analog signals, such as in medical devices, precision measurement instruments, and industrial control systems.

Application Scenario:

A typical use case for the AD5060BRJZ-1500RL7 is in a medical device where it is used to generate precise control voltages for sensors or actuators.

Circuit Design Example:

1. Power Supply: Connect the VDD pin (Pin 8) of the AD5060BRJZ-1500RL7 to a +5V power supply. Ensure that the GND pin (Pin 4) is connected to the system ground.

2. Reference Voltage: Apply a stable reference voltage to the VREF pin (Pin 5). This voltage sets the full-scale output range of the DAC.

3. Digital Interface: Interface the DAC with a microcontroller or digital system using the SDIN (Pin 2), SCLK (Pin 3), and SYNC (Pin 1) pins. These connections are essential for transmitting the digital data to be converted to an analog voltage.

4. Analog Output: The analog output from the DAC is available at the VOUT pin (Pin 6). This output can be connected to the input of a sensor or actuator in the medical device.

Design Considerations:

- Signal Integrity: Ensure that the digital signals provided to the DAC are clean and free from noise to maintain the accuracy of the analog output.

- Stable Reference Voltage: The choice of reference voltage is crucial, as it directly impacts the precision of the DAC output. Use a high-quality, stable reference voltage source.

- Power Supply Filtering: Implement filtering on the power supply lines to minimize noise and provide a stable voltage to the DAC.

- Thermal Management: Be mindful of the operating temperature of the AD5060BRJZ-1500RL7 and provide adequate cooling if necessary to maintain consistent performance.

By adhering to these design considerations, the AD5060BRJZ-1500RL7 can be effectively utilized in medical devices to provide precise and accurate control voltages for various components.
