Analog Devices Inc. AD1582BRTZ-REEL7

Part No.:: AD1582BRTZ-REEL7

Manufacturer:: Analog Devices Inc.

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: AD1582BRTZ-REEL7.pdf

Description:: IC VREF SERIES 0.08% SOT23-3

In Stock:: 2048

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD1582BRTZ-REEL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
ReferenceType:
Series
OutputType:
Fixed
Voltage-Output(Min/Fixed):
2.5V
Voltage-Output(Max):
-
Current-Output:
5 mA
Tolerance:
±0.08%
TemperatureCoefficient:
50ppm/°C
Noise-01Hzto10Hz:
70µVp-p
Noise-10Hzto10kHz:
50µVrms
Voltage-Input:
2.7V ~ 12V
Current-Supply:
70µA
Current-Cathode:
-
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

AD1582BRTZ-REEL7 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD1582BRTZ-REEL7 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD1582BRTZ-REEL7 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD1582BRTZ-REEL7 information

Views：

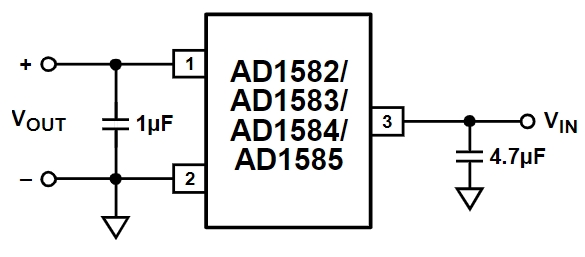

AD1582BRTZ-REEL7 Typical application Circuitry

AD1582BRTZ-REEL7 is a low-power, high-precision voltage reference. It is often used as a precise voltage source or voltage reference in a variety of applications. Here's a detailed introduction to this chip:

Function and Application Scenarios

1. Function: AD1582BRTZ-REEL7 is a series voltage reference. It provides accurate and stable output voltage, which is relatively insensitive to temperature, line, load, and input voltage variations.

2. Application Scenarios: Due to its high precision and low power characteristics, AD1582BRTZ-REEL7 is commonly used for reference voltages in high-precision ADCs/DACs, battery-powered devices, mobile devices, analog-to-digital converters, industrial instruments, and measurement equipment, among others.

Parameter Features

- Output Voltage: This model is 2.5V.

- Maximum Operating Voltage: 5.5V.

- Minimum Operating Voltage: 3V.

- Accuracy: ±1%.

- Load Regulation: 0.1%.

- Temperature Drift: Maximum of 50ppm/°C.

Application Circuit Connection: ADC Reference Voltage

Suppose we wish to use AD1582BRTZ-REEL7 to provide a reference voltage for a high-precision ADC:

1. Input Power Supply: Connect a stable input power supply of 3.3V to 5.5V to the VIN pin of AD1582BRTZ-REEL7.

2. Output Voltage: From the VOUT pin of AD1582BRTZ-REEL7, you can obtain a stable output voltage of 2.5V. This VOUT should be connected to the reference voltage input of the ADC.

3. Power Decoupling: To ensure stable and low-noise output, a 0.1μF decoupling capacitor should be parallel between VIN and GND as well as between VOUT and GND.

4. Ground Line: Ensure that the GND pin of AD1582BRTZ-REEL7 is well connected to the system ground.

Issues to Consider When Designing the Circuit:

1. Stability: Although the design of AD1582BRTZ-REEL7 has good stability, appropriate decoupling and PCB layout are essential for its stable operation.

2. Thermal Design: While this chip will not generate a significant amount of heat, ensuring proper heat dissipation is key in compact designs.

3. Power Quality: The input power supply should be as clean and stable as possible to ensure the accuracy and stability of the output.

4. Load Considerations: Ensure that the voltage reference can maintain its accuracy when the load varies.

With proper design and considerations, AD1582BRTZ-REEL7 can provide a stable and reliable reference voltage for many high-precision applications.
