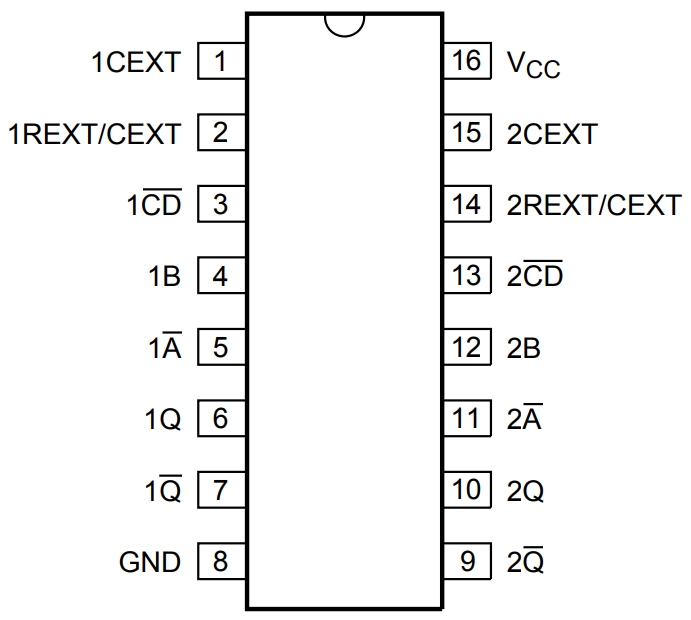

74HC4538D/S420118 Typical application Circuitry

74HC4538D S420118

The 74HC4538D/S420118 is a dual precision monostable multivibrator, which means it has two independent monostable multivibrators that generate accurate and stable pulses in response to a trigger event.

Application Scenarios:

- Timing delays

- Pulse generation

- Frequency division

- Waveform shaping

Parameter Features:

- Supply voltage range: 2 V to 6 V

- Low power consumption

- High noise immunity

- Fast operation

Application Scenario – Frequency Division:

In this scenario, the 74HC4538D/S420118 will be utilized to divide the frequency of an incoming signal.

1. Power Supply Connection:

- Pin 16 (VCC) should be connected to a +5V power supply.

- Pin 8 (GND) should be connected to the ground.

2. Trigger Input:

- An external trigger signal should be applied to pin 6 (A2).

3. Output Connection:

- Pin 9 (Q2) should be connected to an LED or other visual indicator to observe the frequency division in action.

4. Timing Components:

- A resistor (R) and a capacitor (C) should be connected in series from pin 7 (Rx2) to ground. These components will determine the output frequency according to the time constant R*C.

5. Reset (Optional):

- If reset functionality is not required, pin 15 (Reset) should be connected to ground. Otherwise, apply a low signal to reset the multivibrator.

Design Considerations:

- Select R and C values carefully to achieve the desired output frequency. The 74HC4538D/S420118 relationship between the time constant and frequency is given by F = 1/T, where T = R*C.

- Ensure the trigger signal is within the operating range of the chip.

- Verify that the requirements of the 74HC4538D/S420118 output device are compatible with the chip's specifications in terms of voltage and current.

By carefully following these steps, you can harness the 74HC4538D/S420118 to create a functional frequency division circuit suitable for various applications in electronics.

74HC4538D/S420118 information

74HC4538D/S420118 Specifications

Packaging:
Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
Monostable
IndependentCircuits:
2
SchmittTriggerInput:
No
PropagationDelay:
25 ns
Current-OutputHighLow:
5.2mA, 5.2mA
Voltage-Supply:
2 V ~ 6 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount
