Name: 5M240ZT100A5N
Brand: Intel
SKU: 5M240ZT100A5N
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Intel 5M240ZT100A5N

Part No.:: 5M240ZT100A5N

Manufacturer:: Intel

Package:: 100-TQFP

Datasheet:: 5M240ZT100A5N.pdf

Description:: IC CPLD 192MC 7.5NS 100TQFP

In Stock:: 3848

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

5M240ZT100A5N Specifications

Package/Case:
100-TQFP
Packaging:
Tray
Series:
MAX® V
ProductStatus:
Active
ProgrammableType:
In System Programmable
DelayTimetpd(1)Max:
7.5 ns
VoltageSupply-Internal:
1.71V ~ 1.89V
NumberofLogicElements/Blocks:
240
NumberofMacrocells:
192
NumberofGates:
-
NumberofI/O:
79
OperatingTemperature:
-40°C ~ 125°C (TJ)
MountingType:
Surface Mount

5M240ZT100A5N this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 5M240ZT100A5N price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 5M240ZT100A5N to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

5M240ZT100A5N information

Views：

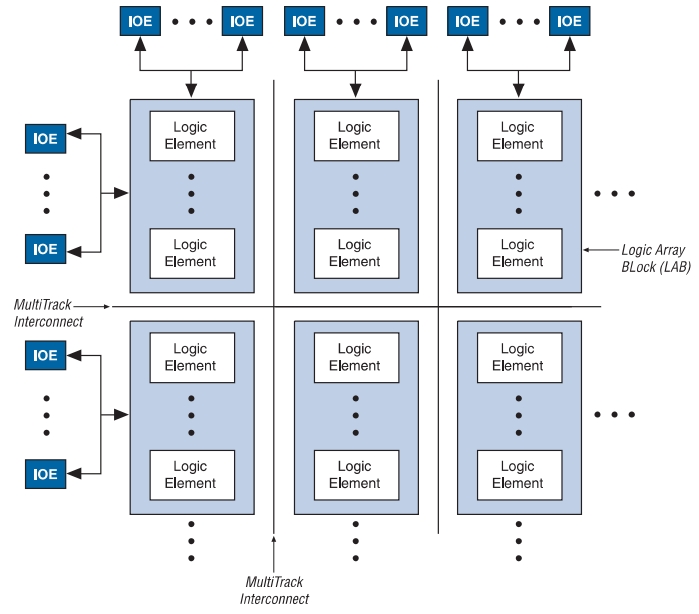

5M240ZT100A5N Typical application Circuitry

5M240ZT100A5N

The 5M240ZT100A5N is a CPLD (Complex Programmable Logic Device) from the MAX V series manufactured by Intel (previously Altera). This device offers a versatile, low-cost programmable logic solution well-suited for a wide array of applications, including but not limited to digital signal processing, control systems, custom logic implementations, and interfacing circuits.

Application Scenario: Custom I/O Expansion Module

A common application of the 5M240ZT100A5N is in creating custom I/O expansion modules for microcontroller-based systems. In scenarios where the base microcontroller does not have enough I/O pins or specific functionality required by the application, the 5M240ZT100A5N can be programmed to extend the system's capabilities.

Parameter Features

- Logic Elements: The 5M240ZT100A5N contains 240 logic elements, providing substantial logic capacity for complex designs.

- I/O Pins: It offers up to 154 user I/O pins, enabling extensive interfacing with external devices.

- In-system Programmability: Supports in-system programming through JTAG, facilitating easy updates and modifications to the logic configuration without needing to remove the device from the system.

- Low Power Consumption: Designed for low power operation, making it suitable for power-sensitive applications.

Detailed Circuit Connection: Designing an I/O Expansion Module

- JTAG Interface for Programming: Connect the JTAG pins (TCK, TDI, TDO, and TMS) of the 5M240ZT100A5N to a compatible JTAG programmer. This setup is critical for initial programming and subsequent updates to the CPLD configuration.

- Power Supply Connections: Apply power to the VCC pins and connect all GND pins to the system's ground. The 5M240ZT100A5N typically operates at 3.3V, and it's essential to ensure the power supply's voltage accuracy and stability.

- I/O Pin Assignment and Configuration: Determine the required I/O functionality and program the 5M240ZT100A5N to implement the logic. Each I/O pin should be configured according to the specific needs of the expansion module, such as input buffers, output drivers, or bidirectional interfaces.

- External Device Connections: After programming, connect the configured I/O pins to the external devices or the microcontroller that requires the expansion. Ensure proper logic level compatibility and implement level shifters if necessary.

Circuit Design Considerations

- Power Integrity: Incorporate decoupling capacitors close to the VCC and GND pins to minimize power supply noise and ensure stable operation of the 5M240ZT100A5N.

- Signal Integrity: For high-speed interfaces, consider the PCB layout carefully to reduce signal degradation. Impedance matching and the use of termination resistors might be necessary.

- Thermal Management: Although the 5M240ZT100A5N is designed for low power consumption, in densely packed or high-speed circuits, adequate cooling should be considered to prevent overheating.

- Programming and Configuration: Before finalizing the design, thoroughly test the CPLD configuration for logic errors and ensure it meets the system's requirements. Use simulation tools available from Intel (Altera) to validate the design.

Utilizing the 5M240ZT100A5N in an I/O expansion module effectively demonstrates the CPLD's capacity to enhance system functionality through custom logic and interfacing solutions. By addressing design considerations such as power and signal integrity, developers can leverage the flexibility and performance of the 5M240ZT100A5N to meet specific application needs.
