What is the Additional Feature ?

Name: 2SC5200N(S1,E,S)
Brand: Toshiba Semiconductor and Storage
SKU: 2SC5200N(S1,E,S)
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Toshiba Semiconductor and Storage 2SC5200N(S1,E,S)

Part No.:: 2SC5200N(S1,E,S)

Manufacturer:: Toshiba Semiconductor and Storage

Package:: TO-3P-3, SC-65-3

Datasheet:: 2SC5200N(S1,E,S).pdf

Description:: TRANS NPN 230V 15A TO3P

In Stock:: 2790

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

2SC5200N(S1,E,S) Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
TransistorType:
NPN
Current-Collector(Ic)(Max):
15 A
Voltage-CollectorEmitterBreakdown(Max):
230 V
VceSaturation(Max)@IbIc:
3V @ 800mA, 8A
Current-CollectorCutoff(Max):
5µA (ICBO)
DCCurrentGain(hFE)(Min)@IcVce:
80 @ 1A, 5V
Power-Max:
150 W
Frequency-Transition:
30MHz
OperatingTemperature:
150°C (TJ)
MountingType:
Through Hole

2SC5200N(S1,E,S) this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 2SC5200N(S1,E,S) price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 2SC5200N(S1,E,S) to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

2SC5200N(S1,E,S) information

Views：

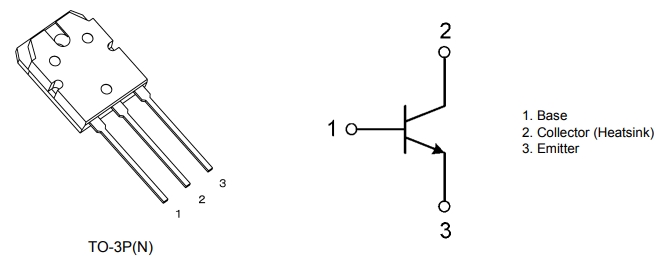

2SC5200N(S1,E,S) Typical application Circuitry

2SC5200N(S1,E,S)

The 2SC5200N(S1,E,S) stands as a distinguished NPN transistor, revered for its impeccable performance, especially when it's about audio amplification.

Application Domains:

- Top-notch audio amplification systems

- All-purpose power amplifiers

- Diverse switching roles

Salient Features:

1. Voltage Threshold: A prominent feature is its collector-emitter breakdown voltage, typically clocking at Vceo = 230V.

2. Current Capabilities: The 2SC5200N(S1,E,S) is engineered to manage substantial continuous collector currents, often around Ic = 15A.

3. Saturation Nuances: Its base-to-emitter saturation voltage is notably minimal, typically about VBE(sat) = 1.5V.

4. Heat Dissipation: Engineered for high-power tasks, it is rated with a significant power dissipation, often Pc = 150W.

5. Packaging: Encased within a TO-3P shell, it ensures optimal thermal regulation.

Case Study: Designing an Audio Amplifier:

Let's explore the integration of 2SC5200N(S1,E,S) in the realm of an audio amplifier's output stage.

Blueprint Configuration:

1. Complement Cohesion: Generally, our protagonist, the 2SC5200N(S1,E,S), aligns with a complementary PNP component, like 2SA1943. This partnership ensures a balanced push-pull amplification, delivering an audibly rich output.

Base Stimulation:

2. Drive Genesis: Typically, a prior amplifier or driver phase caters to the base drive of the 2SC5200N(S1,E,S).

3. Optimal Biasing: A resistor could serve as an intermediary between the base and its driving entity, establishing apt biasing.

Collector Dynamics:

1. Voltage Source: The collector usually bonds with the amplifier's positive voltage source, fueling the 2SC5200N(S1,E,S) with the requisite amplification voltage.

2. Signal Optimization: On occasions, an entity like an output transformer can be integrated to fine-tune the resultant audio signal.

Emitter Mechanisms:

3. Feedback Loop: The presence of an emitter resistor is pretty standard, primarily to ascertain a stable operating juncture and offer feedback.

4. Endpoint Connection: The emitter end of the 2SC5200N(S1,E,S) usually consolidates with the amplifier's endpoint, say a speaker. In tandem with a PNP component, their emitters are often interlinked.

Design Considerations:

1. Heat Management: Being a power juggernaut, the 2SC5200N(S1,E,S) naturally emanates heat. Hence, integrating a comprehensive thermal management solution, headlined by a formidable heatsink, becomes pivotal.

2. Harmonic Balance: An astute biasing approach can offset harmonic distortions, thus uplifting the overall audio experience.

3. Signal Integrity: Incorporating feedback circuits can bolster signal integrity, reducing potential signal anomalies.

4. Guard Mechanisms: Shielding the 2SC5200N(S1,E,S) from potential adversities like surges or short-circuits is crucial. Incorporating protection mechanisms can significantly enhance the longevity of both the component and the overall circuit.

To encapsulate, the 2SC5200N(S1,E,S) is undeniably an asset in audio amplification scenarios. But, its efficacy is truly realized when a thoughtful design strategy, reflecting its strengths and addressing its vulnerabilities, is implemented.
