Name: 2SC5200-O(S1,F
Brand: Toshiba Semiconductor and Storage
SKU: 2SC5200-O(S1,F
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

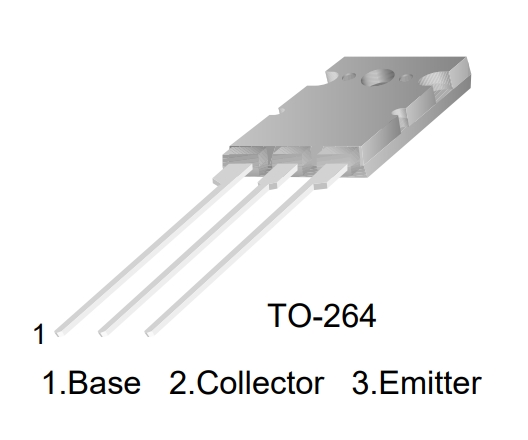

lmages are for reference only See Product Specifications

Toshiba Semiconductor and Storage 2SC5200-O(S1,F

Part No.:: 2SC5200-O(S1,F

Manufacturer:: Toshiba Semiconductor and Storage

Package:: TO-3PL

Datasheet:: 2SC5200-O(S1,F.pdf

Description:: PB-F POWER TRANSISTOR TO-3PL PC=

In Stock:: 3699

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

2SC5200-O(S1,F Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
TransistorType:
NPN
Current-Collector(Ic)(Max):
15 A
Voltage-CollectorEmitterBreakdown(Max):
230 V
VceSaturation(Max)@IbIc:
3V @ 800mA, 8A
Current-CollectorCutoff(Max):
5µA (ICBO)
DCCurrentGain(hFE)(Min)@IcVce:
55 @ 1A, 5V
Power-Max:
150 W
Frequency-Transition:
30MHz
OperatingTemperature:
150°C (TJ)
MountingType:
Through Hole

2SC5200-O(S1,F this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 2SC5200-O(S1,F price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 2SC5200-O(S1,F to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

2SC5200-O(S1,F information

Views：

2SC5200-O(S1,F Typical application Circuitry

2SC5200-O(S1,F

The 2SC5200-O(S1,F is a high-power NPN transistor mainly employed in audio power amplifier applications. This specific model is popular due to its efficiency, durability, and high power output.

Applications:

- High-fidelity audio amplifiers

- Switching applications

- General-purpose amplifications

Parameters and Characteristics:

1. Breakdown Voltage: It has a high collector-emitter breakdown voltage (Vceo = 230V).

2. Collector Current: Continuous collector current capability is notable (Ic = 15A).

3. Saturation Voltage: Offers a low base-to-emitter saturation voltage (VBE(sat) = 1.5V).

4. Power Dissipation: The transistor is rated for a high power dissipation (Pc = 150W).

5. Package: Comes in the TO-3P package for enhanced thermal dissipation.

Sample Application: Use in an Audio Power Amplifier:

Imagine employing the 2SC5200-O(S1,F in a high-fidelity audio amplifier's output stage.

1. Connection: In this setup, the 2SC5200-O(S1,F would be coupled with its complementary PNP counterpart (such as 2SA1943) in a push-pull configuration to render amplified audio signals with low distortion.

2. Base Drive:

* Drive Source: A preceding amplifier stage or driver circuit typically provides the drive to the base of the 2SC5200-O(S1,F.

* Biasing: Ensuring proper biasing is crucial. A resistor is often placed between the base and the driver stage to set an appropriate bias level.

3. Collector Configuration:

* Supply: The collector is attached to the positive rail of the power supply, which provides the necessary voltage to amplify the audio signal.

* Output Load: An output transformer or filter might be placed between the collector and the output for impedance matching and signal refinement.

4.Emitter Configuration:

* Emitter Resistor: It's common to find an emitter resistor, which helps stabilize the operating point and provide feedback.

* Load Connection: The emitter of 2SC5200-O(S1,F connects to the speaker or output load. If paired with a complementary PNP transistor, their emitters are generally connected together.

Points to Ponder while Designing:

1. Thermal Management: Given the high power handling, ensuring robust heat dissipation for the 2SC5200-O(S1,F becomes paramount. This is typically addressed using a substantial heatsink coupled with thermal paste or pad.

2. Crossover Distortion: Careful biasing can avert crossover distortion in the audio output. This distortion arises when there's an abrupt switch between the NPN and PNP transistors in a push-pull configuration.

3. Feedback Mechanism: Implementing a feedback mechanism enhances the linearity of the amplifier and curtails harmonic distortion.

4. Safety Protocols: Incorporating protective measures such as relays or protection circuits safeguards the 2SC5200-O(S1,F and associated components from potential damages like short circuits or overheating.

In sum, the 2SC5200-O(S1,F stands out as an excellent choice for audio amplification, particularly when the objective is to achieve high power with minimal distortion. Proper design practices are pivotal to maximize its performance and ensure the longevity of the entire system.
